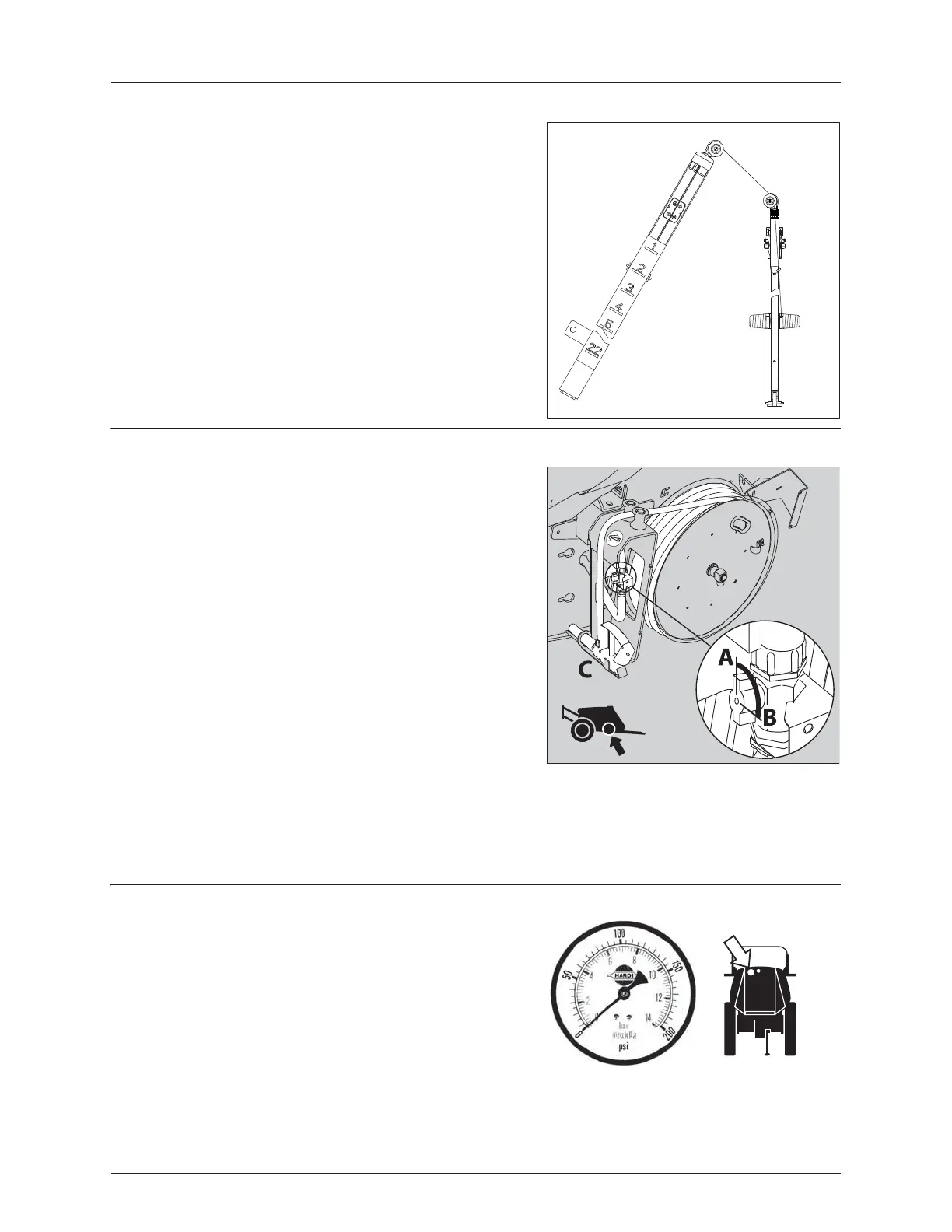

Tank level indicator
The actual tank level in the main tank can be observed on the tank level
indicator. The scale is displayed in US gal. or Liters (certain countries).
ATTENTION! The wire guide wheels should be directed so they
follow the direction of the wire.
External Cleaning Device (optional)
This equipment comprises a hose reel and spray gun (C) used to clean
the complete sprayer externally in the field with clean water. The
External Cleaning Device gun (C) is located on the sprayers right side
behind the ChemLocker cover.
Ball valve:
• Open
• Closed
÷
NOTE! Do not let go of the hose. Gently restrict the roll-in of the
hose.
±
WARNING! The Cleaning Device produces a high pressure water
jet. Incorrect use may result in personal injuries!
€
DANGER! Always wear protective clothing. It is recommended to
wear goggles and boots during the work. Protect yourself or
anyone near the cleaning area against particles bouncing up while cleaning.
€
DANGER! For the safety of yourself and others, the following rules should always be observed:
Never point the water jet at people, animals, electrical installations or other sensitive objects.
Never try to clean clothing or footwear which you or other people wear.
Nozzle pressure gauge
The remote pressure gauge is integrated at the top of the platform. This
gauge measures the working pressure in the boom tubes as close to the
nozzles as possible.
The outputs stated in the nozzle charts are always based on the pressure
measured at the nozzle. Both when calibrating and spraying, the
pressure must be adjusted according to the readings of this pressure
gauge.
