8 - Technical specifications
Dimensions
General info
All measures, values and weights are depending on mounted options and specific adjustments.

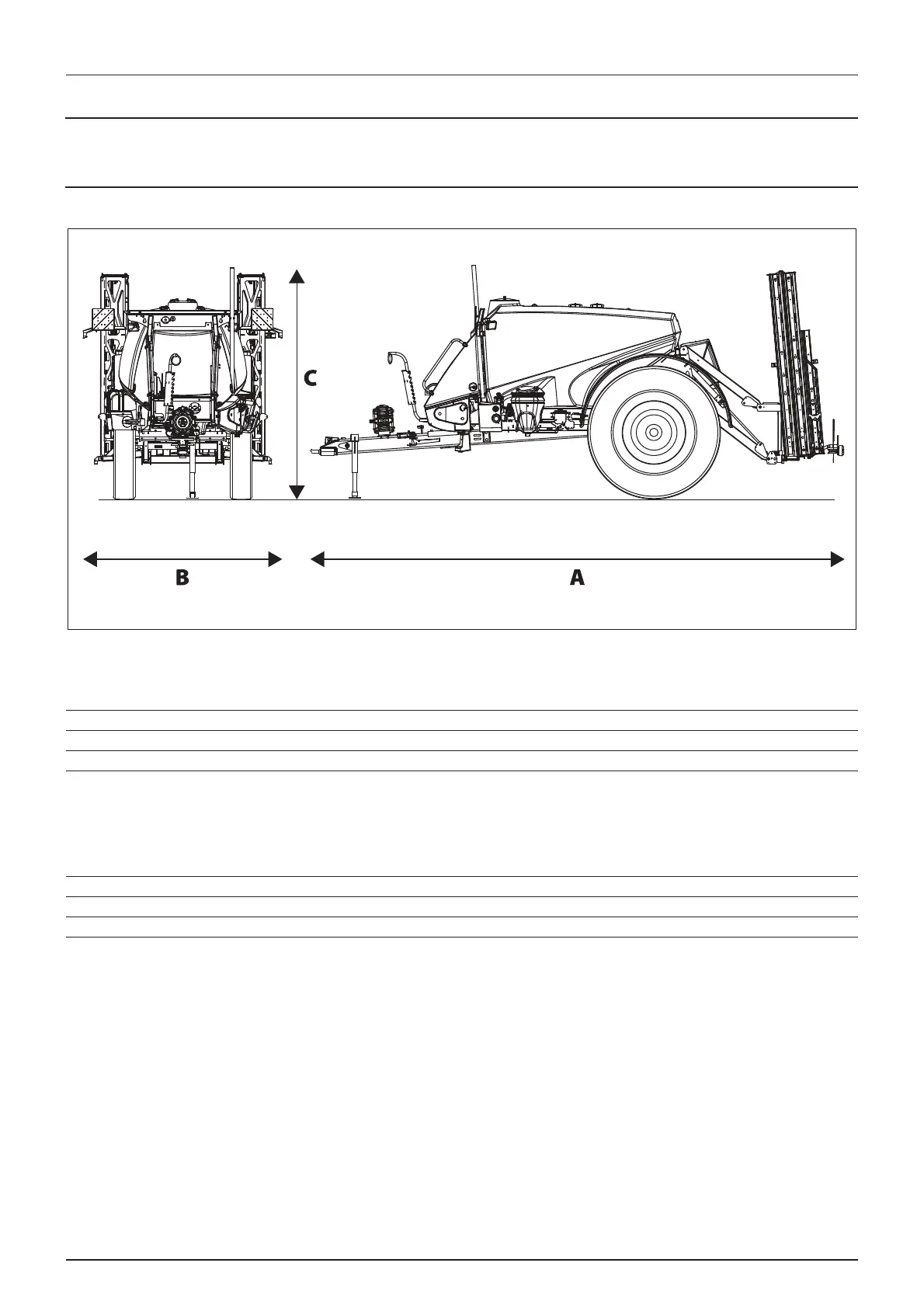

Overall dimensions
Suspended axle:
Fixed axle:
Wheels 11.2x48”/12.4x46” B12.4x52” 13.6x48” 16.9x38” 18.4x38” 20.8x38”
A - Total length, mm 7202 7216 7215 7217 7216 7214
B - Total width, mm 2430 2430 2430 2430 2430 2430
C - Total height, mm 3050 3157 3093 3008 3060 3119
D - Draw to axle, mm 4645 4635 4637 4642 4637 4635
Wheels 11.2x48”/12.4x46” B12.4x52” 13.6x48” 16.9x38” 18.4x38” 20.8x38”
A - Total length, mm 7212 7214 7216 7218 7217 7215
B - Total width, mm 2430 2430 2430 2430 2430 2430
C - Total height, mm 3006 3112 3048 2992 3015 3074
D - Draw to axle, mm 4642 4637 4640 4644 4642 4639
