Hardi NAVIGATOR 4000 Original Instruction Book

8 - Technical specifications
109

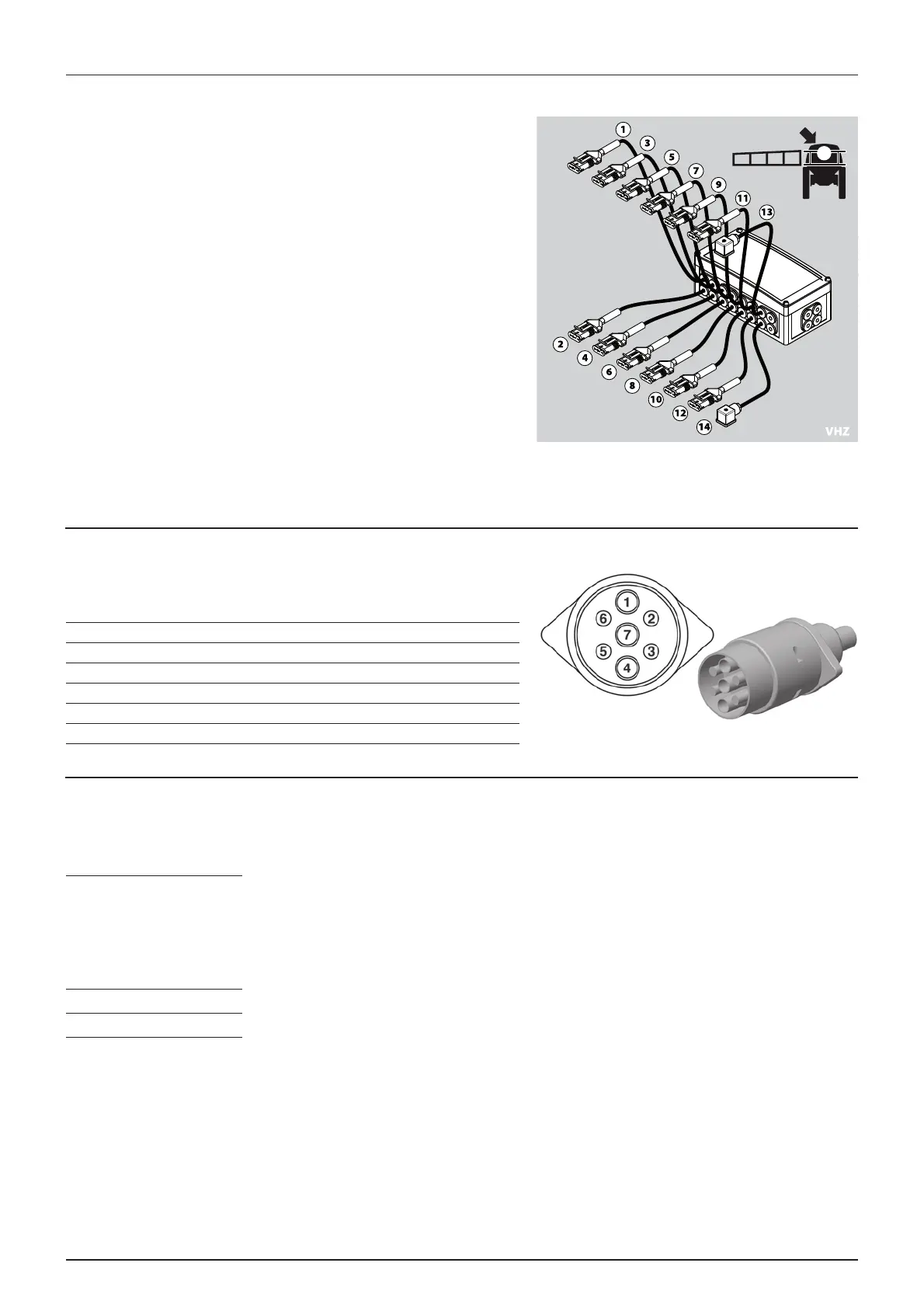

Plug positions for VHZ hydraulics
1. Slant
2. Slant
3. Trapeze lock
4. Trapeze lock
5. Fold left
6. Fold left
7. Tilt left down
8. Tilt left up
9. Tilt right down
10. Tilt right up
11. Fold right
12. Fold right
13. (B) flow reverse
14. (A) flow forward
Rear lights
The wiring is in accordance with ISO 1724.
ProFlow electrical connections
Power supply: 12 V DC
Electric control valve connection: 12 V DC; Max. 5 Ampere.
Position Wire colour
1. LH direction indicator Yellow
2. Free Blue
3. Frame White
4. RH direction indicator Green
5. RH rear position lamp Brown
6. Stop lamps Red
7. LH rear position lamp Black
Brown wire: Positve
Blue wire: Negative
Pin1: Free
Pin 2: Free
Pin 3: Positive
Pin 4: Negative
54
21 34 1 35 28 2 33 59 46 56 37
42 45 409166 38 43 44 55 4177
