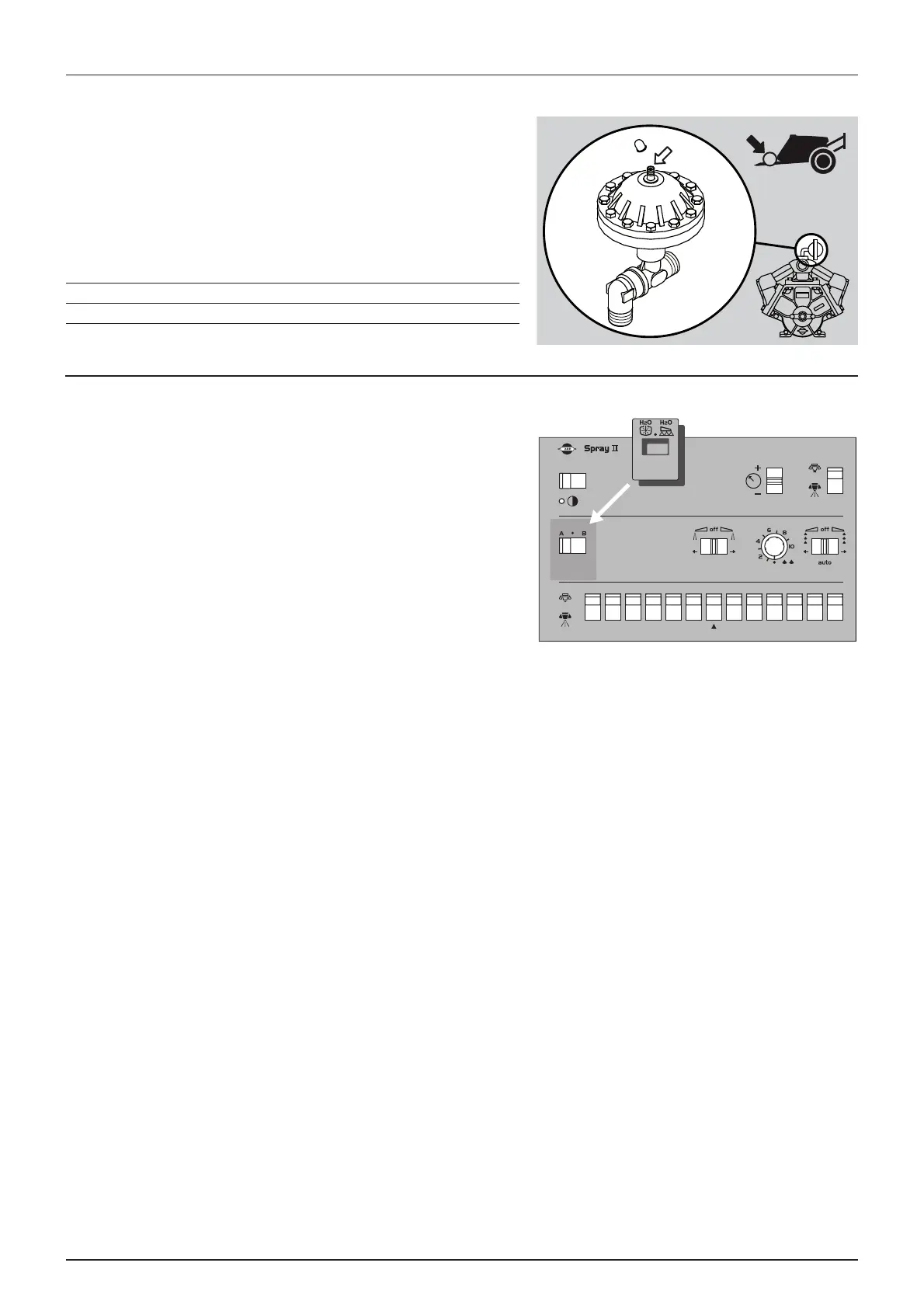

Pulsation damper (if fitted)
The air pressure in the pulsation damper is factory preset at 2 bar to
cover spray working pressures between 3 and 15 bar.
When using spray pressures outside this range, the air pressure should
be adjusted as shown in the diagram. The diagram is embossed on the
damper.
Label for Dilution kit (optional)
As the Dilution kit uses a function switch on the spray control box has to
be labelled as shown. The switch in use may differ depending on
machine configuration.
μ
ATTENTION! Place of label on the picture is an example only!
Spray Pressure (Bar) Damper pressure (Bar)
1.5 - 3 0 - 1
3 - 15 1 - 3
15 - 25 3 - 4
