Hardi NAVIGATOR 4000 Original Instruction Book

4 - Sprayer setup
36
Mechanical connections
Drawbars
There is a choice between high and low hitch drawbar versions with different coupling parts. The low version can be
configured as a fixed or a steered model. The high hitch has the turning part as standard. The non steered version has rods
instead of cylinders.
All drawbars are fastened to the underside of the sprayer near the rear axle with 6 bolts secured by lock nuts. Furthermore
the drawbar is supported by 2 bolts secured with lock nuts located in the area below the platform.

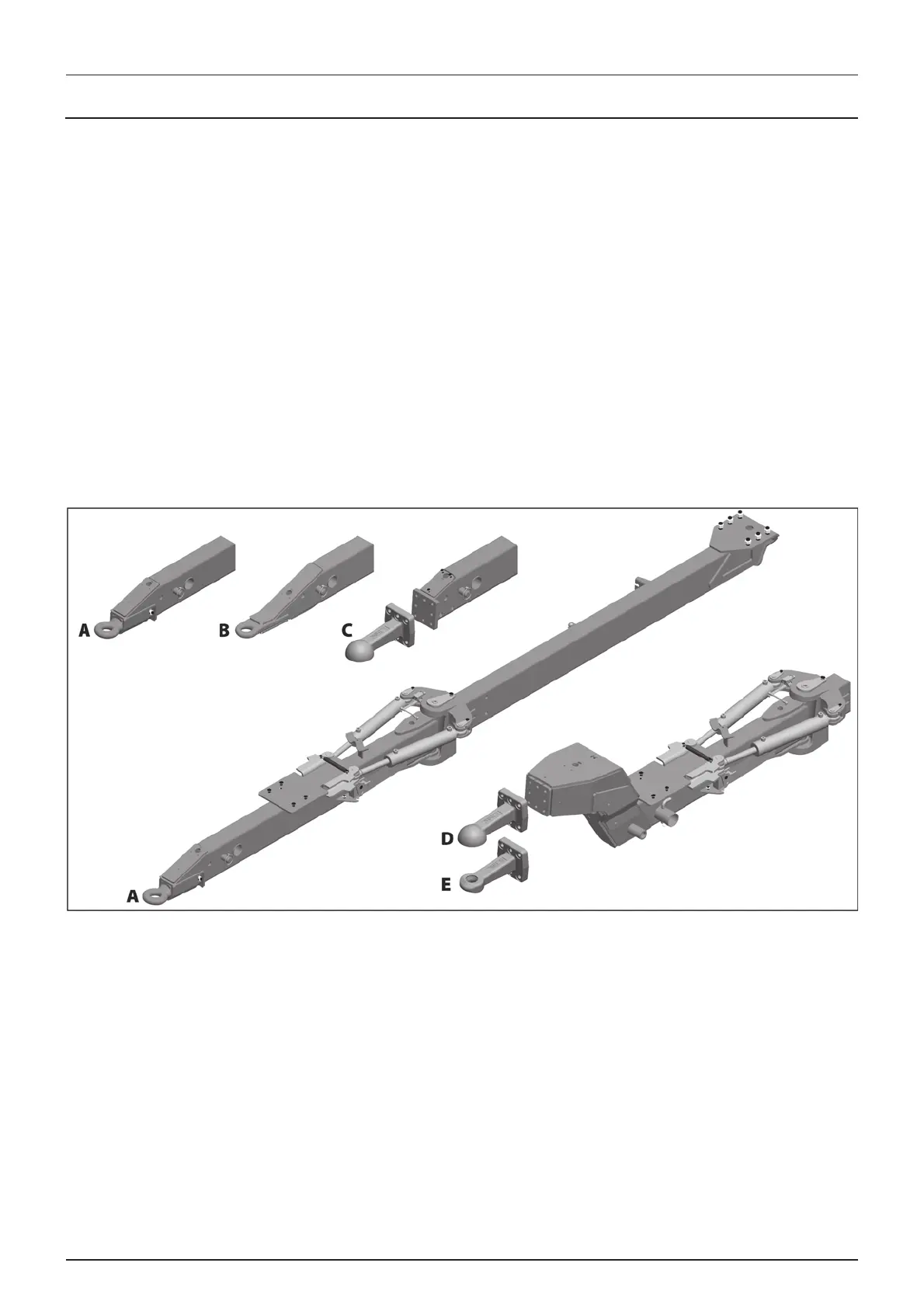

Following drawbar hitches are available - steering or fixed - for both high and low tractor hitch points.
A. Low D33/50 swivel
B. Low D50 hitch
C. Low K80 Zugkugel
D. High K80 Zugkugel
E. High D38 Zugmaul
Steering drawbars:
