Hardi NAVIGATOR 4000 Original Instruction Book

3 - Description
25

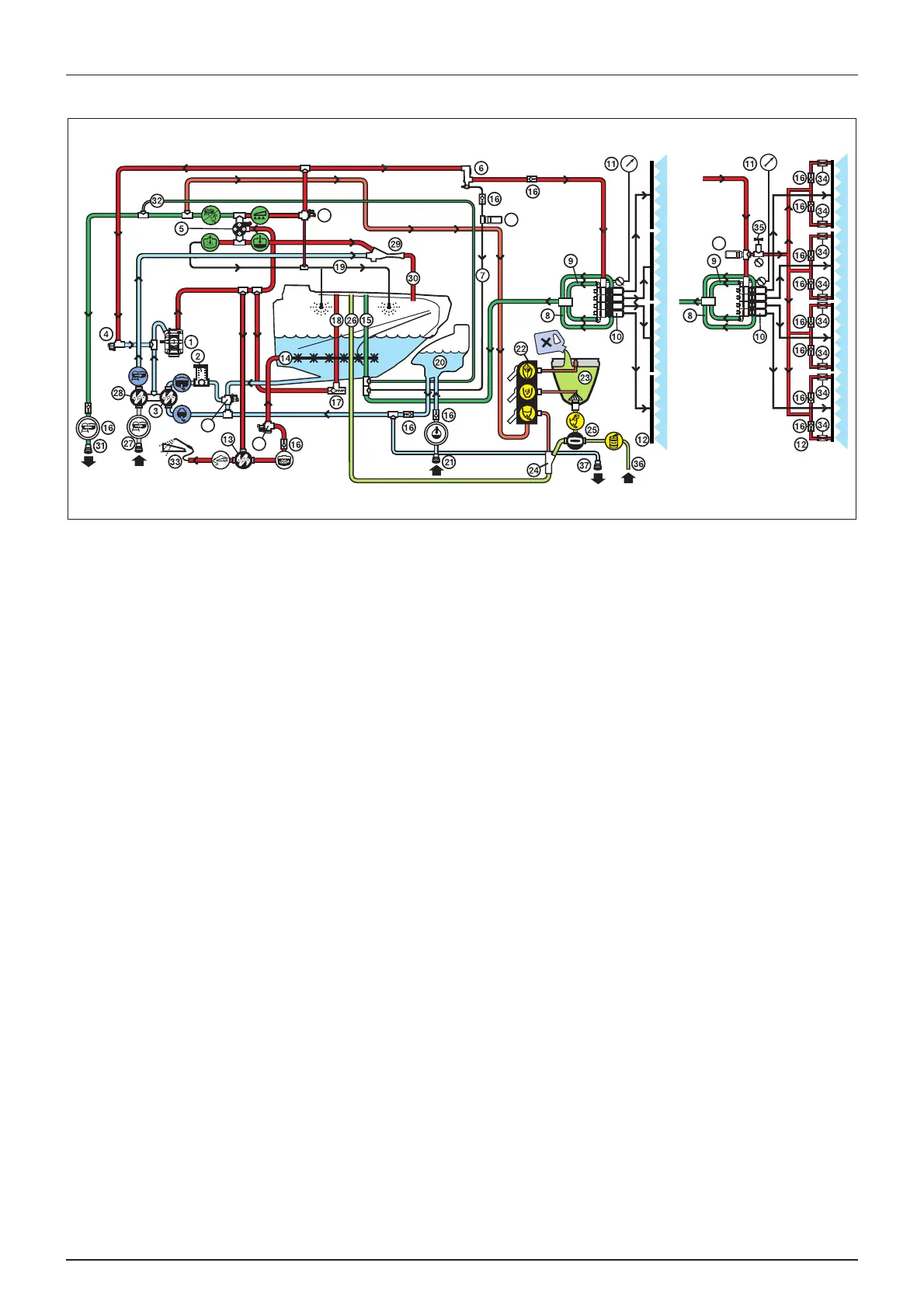

Diagram - Liquid system with all options
1. Pump
2. EasyClean filter
3. Suction Valve Main tank/RinseTank
4. Pressure control valve
5. Pressure SmartValve
6. CycloneFilter
7. Return line for boost function
8. Return pressure drop
9. Return pressure equalisation
10. Distribution valves
11. Pressure gauge
12. Spray boom
13. Agitation valve
14. Agitation tube
15. Tank tube for return lines (riser pipe)
16. One-way valve
17. Safety valve
18. Tank tube riser pipe
19. Tank rinsing nozzles
20. RinseTank
21. RinseTank coupler
22. Valve block TurboFiller
23. TurboFiller
24. Ejector for TurboFiller
25. Ecofill valve
26. Tank tube for Turbofiller
27. Filling coupler
28. Filling valve
29. FastFiller ejector
30. FastFiller hose to tank inlet
31. Pressure Empty
32. Pressure drop line for Pressure Empty
33. External cleaning
34. BoomPrime restrictor
35. BoomPrime pressure control valve with gauge
36. EcoFill coupler
37. Rinse tank drain
38. Dilution valve (ON/OFF section valve)
39. Dilution valve (S67 pressure valve)
40. Dilution valve (S93 suction valve)
41. BoomPrime bypass valve
38
41
40
39
40
