Hardi NAVIGATOR 4000 Original Instruction Book

4 - Sprayer setup
50
Boom

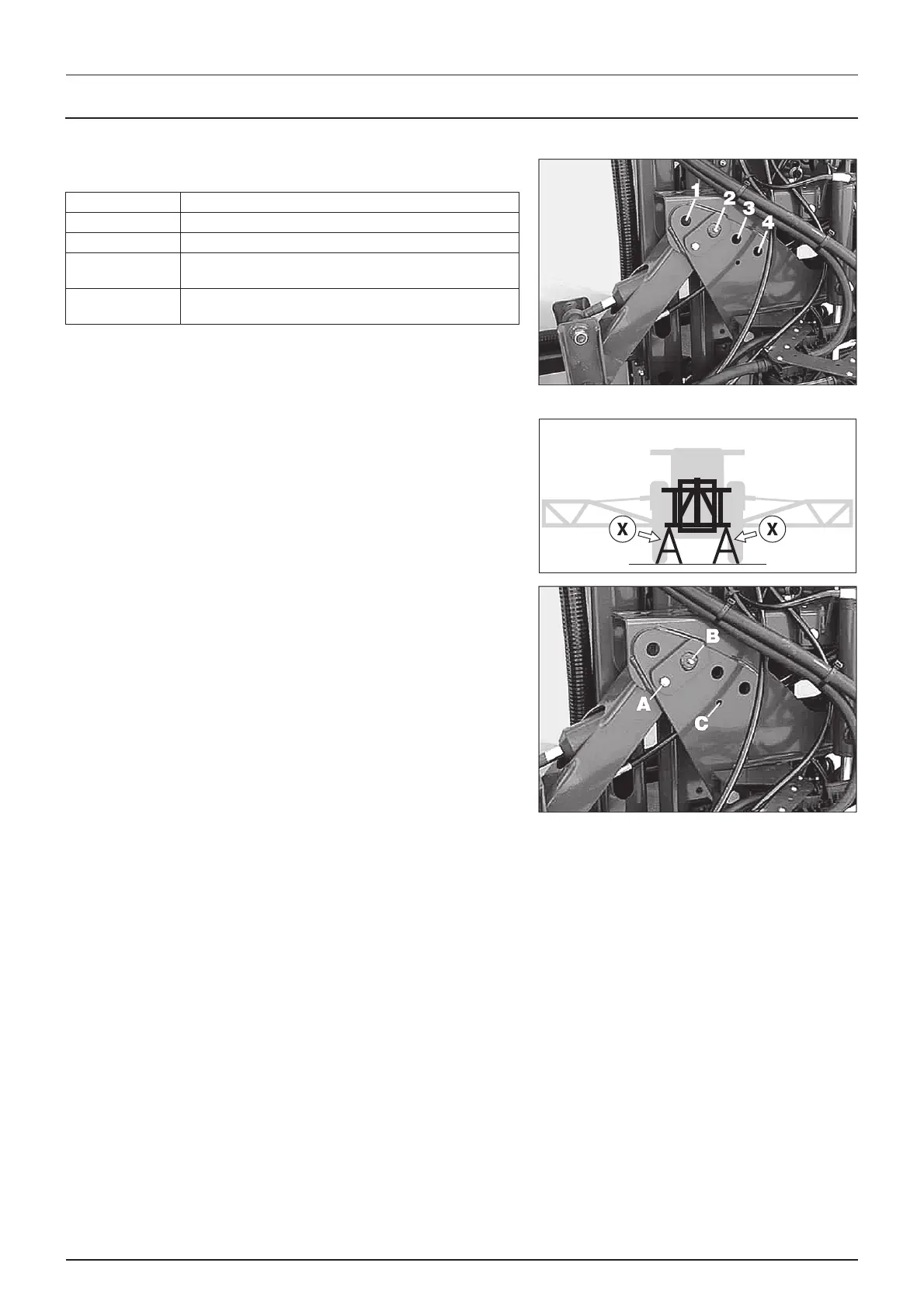

Suspension effect adjustment
In order to alter the behaviour of the boom the trapeze has 4 settings.
How to alter the setting
1. Unfold and support the centre section (X).
2. Loosen bolt from locking hole (A).
3. Remove pin + mounting (B).
€
DANGER! Do not remove pin unless the boom is fully supported
in a safe way!
4. Place (B) in new setting position (1-4).
5. Fasten bolt in locking hole (A) again.
μ
ATTENTION! To change from pos. 1 or 2 to pos. 3 or 4 - or vice
versa - the pin + mounting (B) must be fastened by the bolt in the
opposite hole. In this case = (C). Carry out similar adjustments to
both sides of the trapeze.
Setting Behavior
1 For use on uneven ground with many obstacles.
2 All-round standard setting (Factory setting).
3 Slightly slower moving trapeze. Good at following slopes, but less
compensating for obstacles.
4 Very slow moving trapeze. For use on even ground and slopes where
there are no obstacles.
