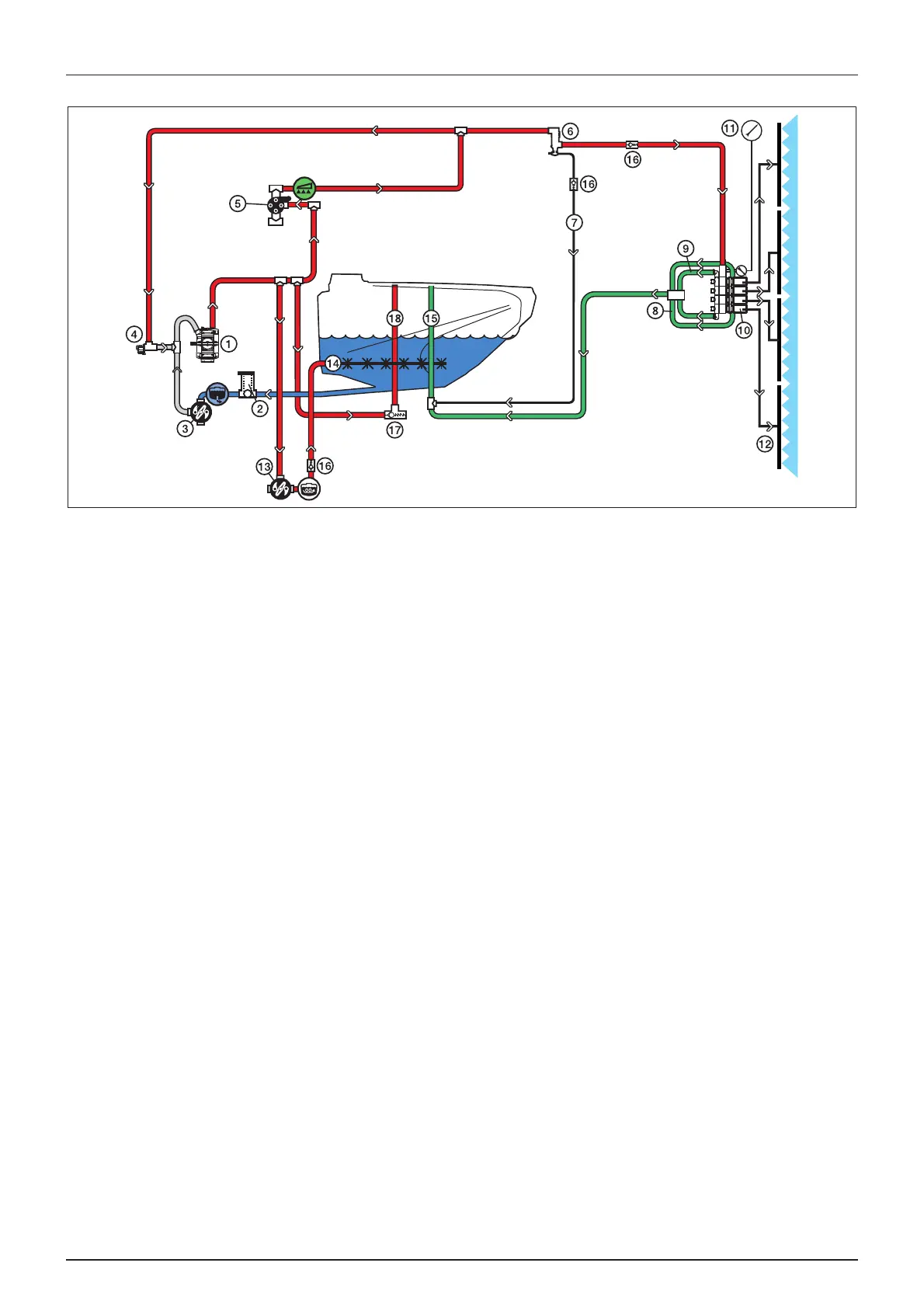

Diagram - Liquid system
1. Pump
2. EasyClean filter
3. Suction Valve Main tank/RinseTank
4. Pressure control valve
5. Pressure SmartValve
6. CycloneFilter
7. Return line for boost function
8. Return pressure drop
9. Return pressure equalisation
10. Distribution valves
11. Pressure gauge
12. Spray boom
13. Agitation valve
14. Agitation tube
15. Tank tube for return lines (riser pipe)
16. One-way valve
17. Safety valve
18. Tank tube riser pipe
