Hardi NAVIGATOR 4000 Original Instruction Book

4 - Sprayer setup
47
Transport
Transport lock

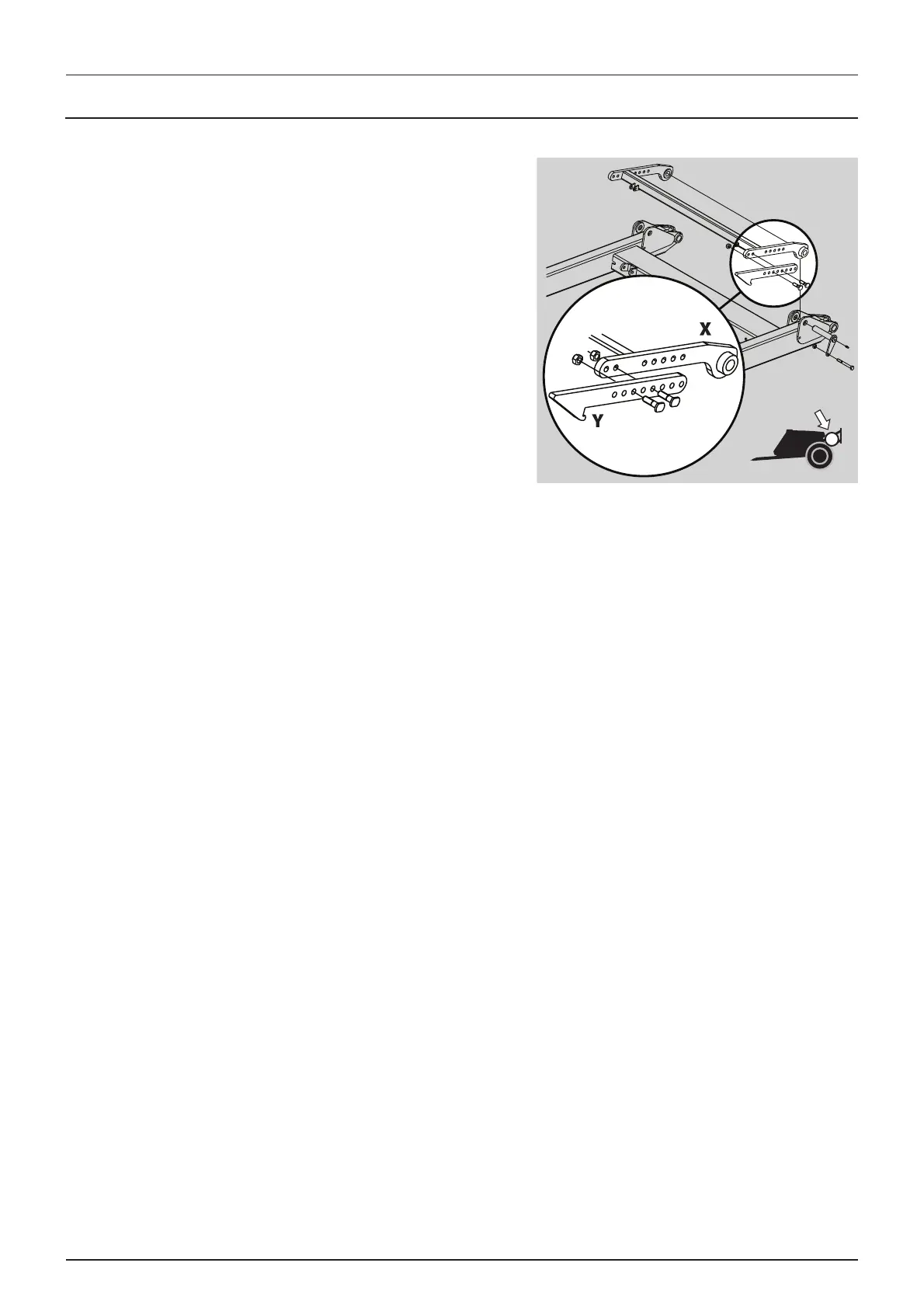

The transport position can be set independently to obtain different
transport heights.
To change position:
1. Lift and unfold inner sections till lock is disengaged.
2. Lower the boom completely.
3. Loosen and remove the two bolts, which keep the parts (X) and (Y)
assembled.
4. Reassemble (X) and (Y ) according to desired hole combination.
5. Recommended setting is when leaving 170 mm exposed from
paralift cylinder ram.
μ
ATTENTION! Always use both bolts to assemble the lock. The
setting must be identical on both sides.
μ
ATTENTION! The rear settings must correspond to the front
settings so the boom is resting on the front as well as rear brackets.
±
WARNING! The max. transport height must never exceed 4.0 m (13.1 ft.). Always measure the actual total height and
choose settings not exceeding 4.0 m.
