6 - Maintenance
Lubrication
General info
Always store lubricants clean, dry and cool - preferably at a constant temperature - to avoid contamination from dirt and
condensed water. Keep oil filling jugs, hoppers and grease guns clean, and clean the lubricating points thoroughly before
lubricating. Avoid skin contact with oil products for longer periods.
Always follow the quantity recommendations. If no quantity is recommended, feed lubricator till new grease becomes
visible.
Pictograms in lubrication & oiling plans designate the following:
1. Lubricant to be used (see “Recommended lubricants”).
2. Recommended intervals (hours).
μ
ATTENTION! If the sprayer is cleaned with a high pressure cleaner,
lubrication of the entire machine is recommended.
Recommended lubricants

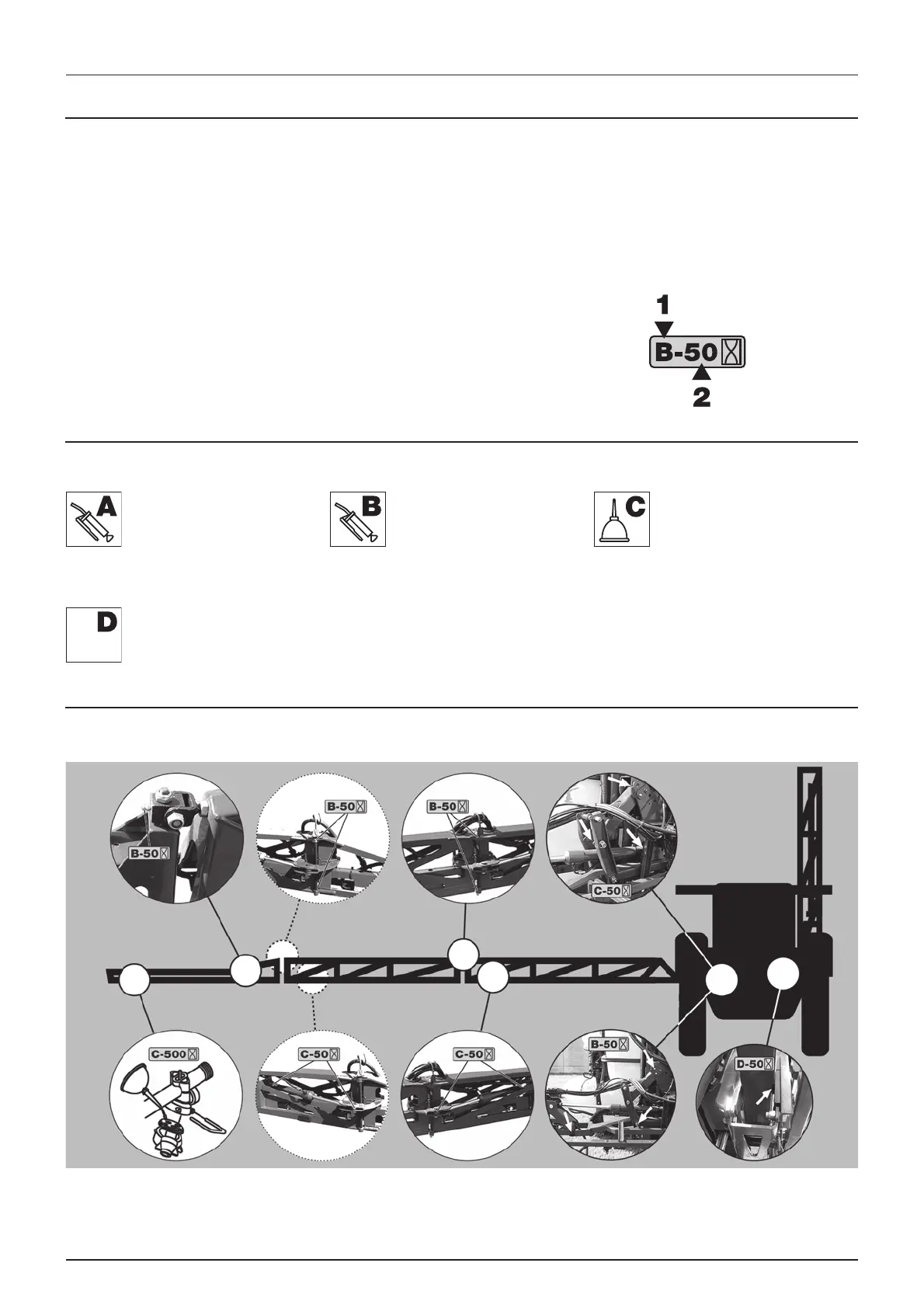

Boom lubrication & oiling plan
BALL BEARINGS:
Universal Lithium grease,
NLGI No. 2
SHELL RETINAX EP2
CASTROL LMX GREASE
SLIDE BEARINGS:
Lithium grease with
Molybdenumdisulphide or
graphite
SHELL RETINAX HD 2
(or HDX 2)
OIL LUB. POINTS:
TOTAL Transmission TM
SAE 80W/90
Castrol EPX 80W/90
SHELL Spirax 80W/90
Mobil Mobilube 80W/90
Glide shoes
Use stearin or a non-greasy
type of wax
