Hardi NAVIGATOR 4000 Original Instruction Book

4 - Sprayer setup
37

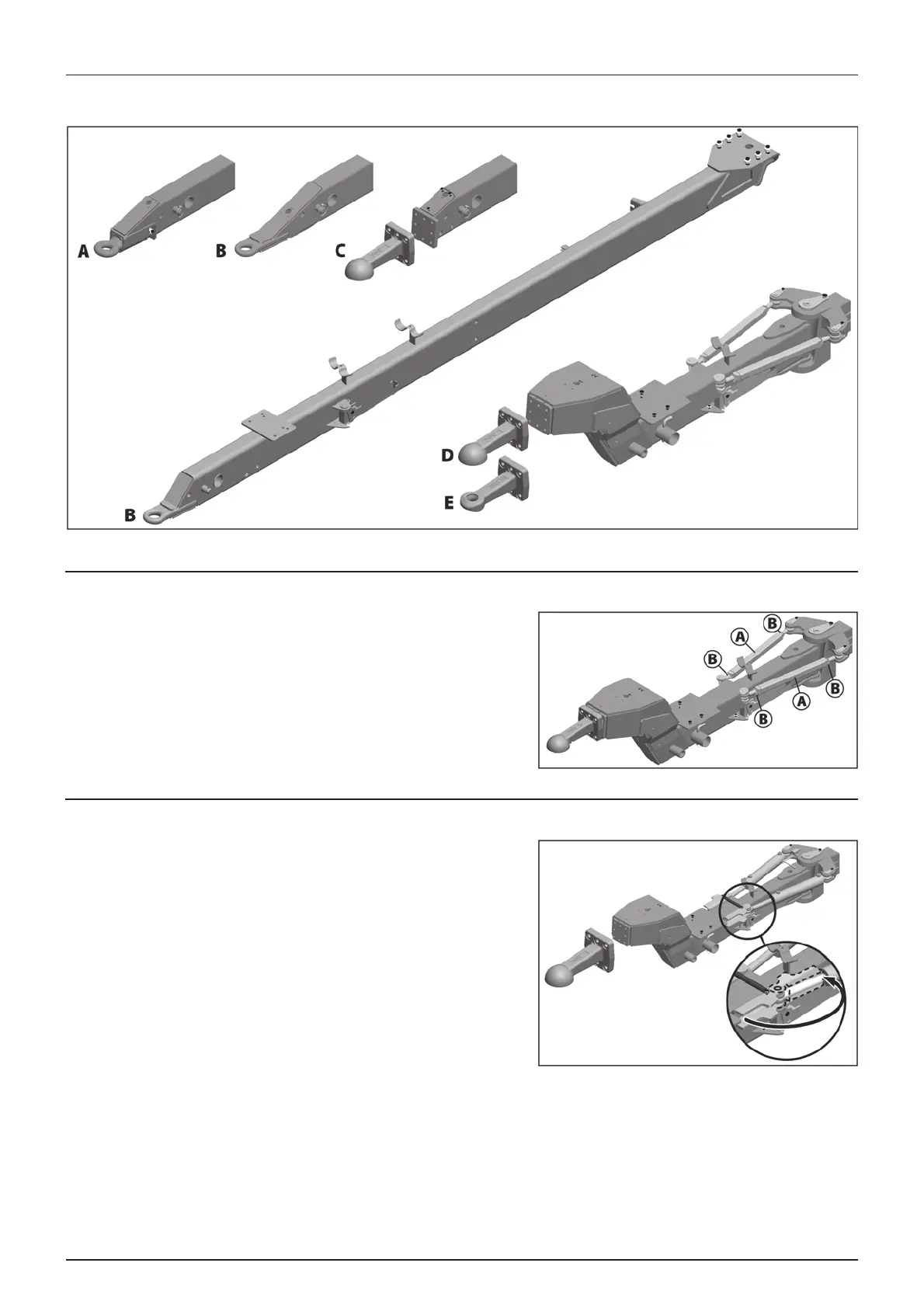

Fixed drawbars:
Fixed drawbar (High hitch extension only)
Make sure the drawbar points straight ahead from its position on the
trailer. If not, the two turnbuckles (A) can be adjusted till the drawbar is
centred.
1. Loosen counternuts (B).
2. Measure the length to be equal for the two turnbuckles (A) to
position the drawbar. Turn the turnbuckles (A) until the measure is
correct.
3. Retighten the counternuts (B) again.
Tracking drawbar transport lock (optional)
The transport lock is a safeguard that will keep the drawbar in a centred
position in case of hydraulic leakage during transport on public roads.
The transport lock is fixed by swinging the lock plate onto the steering
cylinders.
±
WARNING! Make sure to lock the steering when driving on public
roads.
