Electrical Wiring
The OmniPL requires both high and low voltage connections. Low voltage connections will be made
to variable speed pumps, actuators, sensors, remote keypad, etc. High voltage connections will be
made to pumps, lights, etc., as well as providing direct input power to the OmniPL wiring panel from
the main service panel. Always:
-Ensure that Power is disconnected prior to performing any wiring
-Follow all local and NEC (CEC if applicable) codes
-Use copper conductors only
Grounding and Bonding
When wiring input power to the OmniPL, be sure to connect the ground wire from the ground bus
bar in the main service panel to the ground bus bar in the OmniPL wiring panel. Also ground each
piece of high voltage equipment (120 or 240 VAC) that is connected to the OmniPL control relays or
circuit breakers in the main service panel. The OmniPL should also be connected to the pool bonding
system by an 8AWG (6AWG for Canada) wire. A lug for bonding is provided on the outside/bottom
of the OmniPL enclosure.

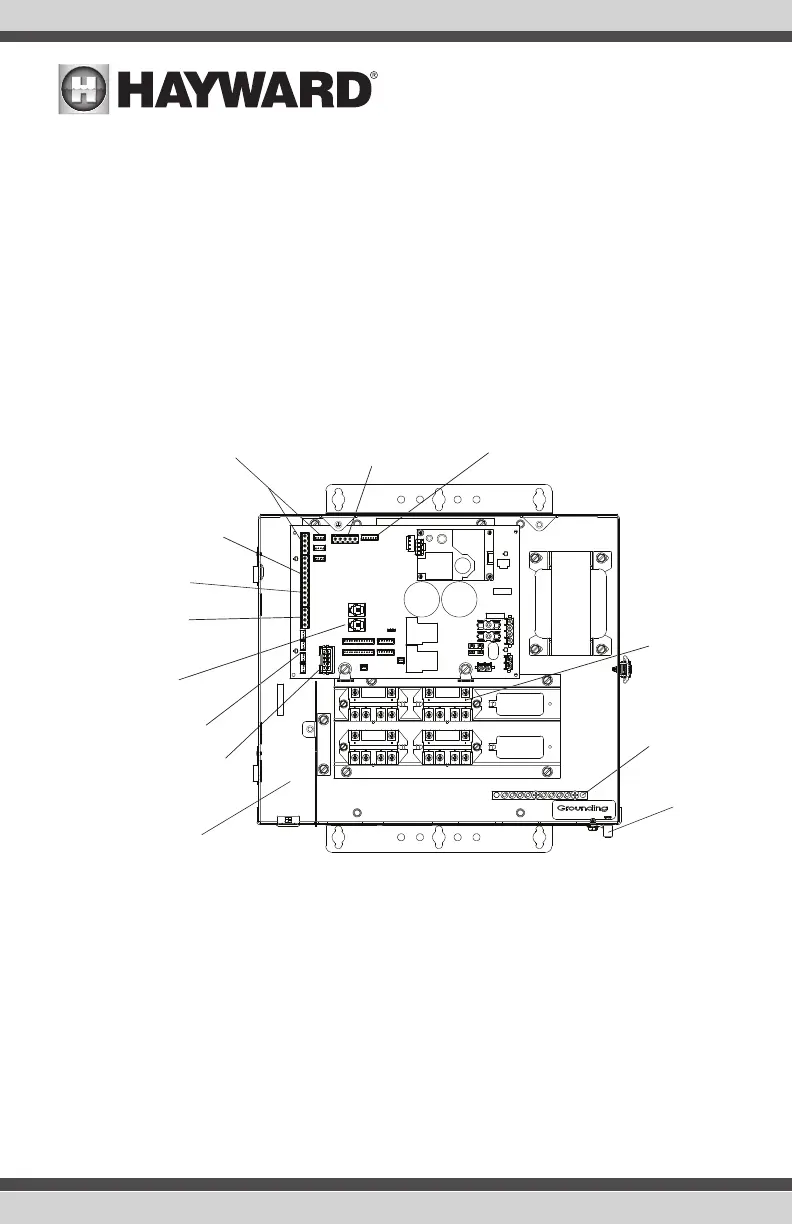

Ground Bus
Bar
High Voltage
Relays
Flow Switch
Connectors
High Speed (HS)
Bus Connector
Bus Connectors
4 Temperature
Sensor Inputs
External Input
Interlock
4 Valve Outputs
Chlorinator
Cell Connector
Controller
Low Voltage
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
14
