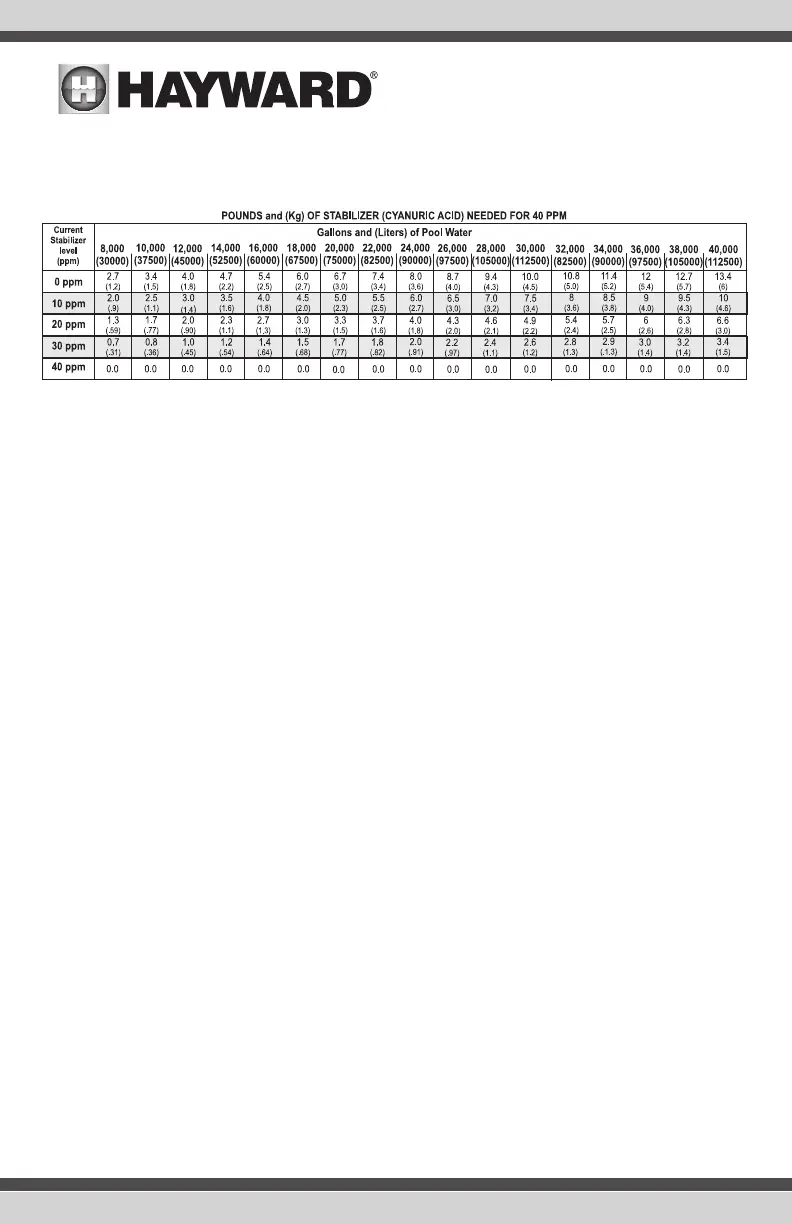

Always check stabilizer (cyanuric acid), when checking salt. These levels will most likely decline
together. Use the chart below to determine how much stabilizer must be added to raise the level
to 40 ppm.
System Startup
Before Startup
Before starting the OmniPL for the first time, be sure that the following items have been completed:
1. Pool/spa chemicals are within the recommended levels according to the chart on page 26.
2. If using chlorinator function (HLPRO4NSW only), pool/spa salt level is between 2700 – 3400
PPM Standard Salt or 1200-1800 PPM Low Salt (see page 40).
3. All wiring is performed according to NEC and local codes.
4. The OmniPL is properly grounded and bonded.
Firmware Upgrade
The OmniPL’s firmware is the basic operating system that runs the unit. The OmniPL was shipped
with the version of firmware that was available at the time of release. There may be a newer version
available and if so, we encourage you to upgrade. Also, if you have experienced problems, Hayward
Technical Support may advise you to upgrade your OmniPL firmware. To upgrade the OmniPL firm-
ware, refer to the procedure shown in the OmniPL Operation Manual. Upgrading firmware can be
performed before or after Configuration but should be done before the OmniPL begins operation.
Configuration
Initial Configuration
When all input and pool related wiring is complete, replace and secure the deadfront. The OmniPL
can now be powered on for the first time. Apply power at the main panel and wait for the OmniPL
to completely start. This may take a full minute or two. Because this is the first time that the OmniPL
has been powered on, it will bring you directly to the initial configuration screen shown below. Note
that the OmniPL uses a resistive touchscreen that is appropriate for a pool environment. It requires a
deliberate push when selecting a button. At the initial configuration screen, touch the Configuration
button in the center of the screen. On the following screen, touch the Configuration Wizard button
as shown below.
