1.3 Functional description
1.3.1 System Components

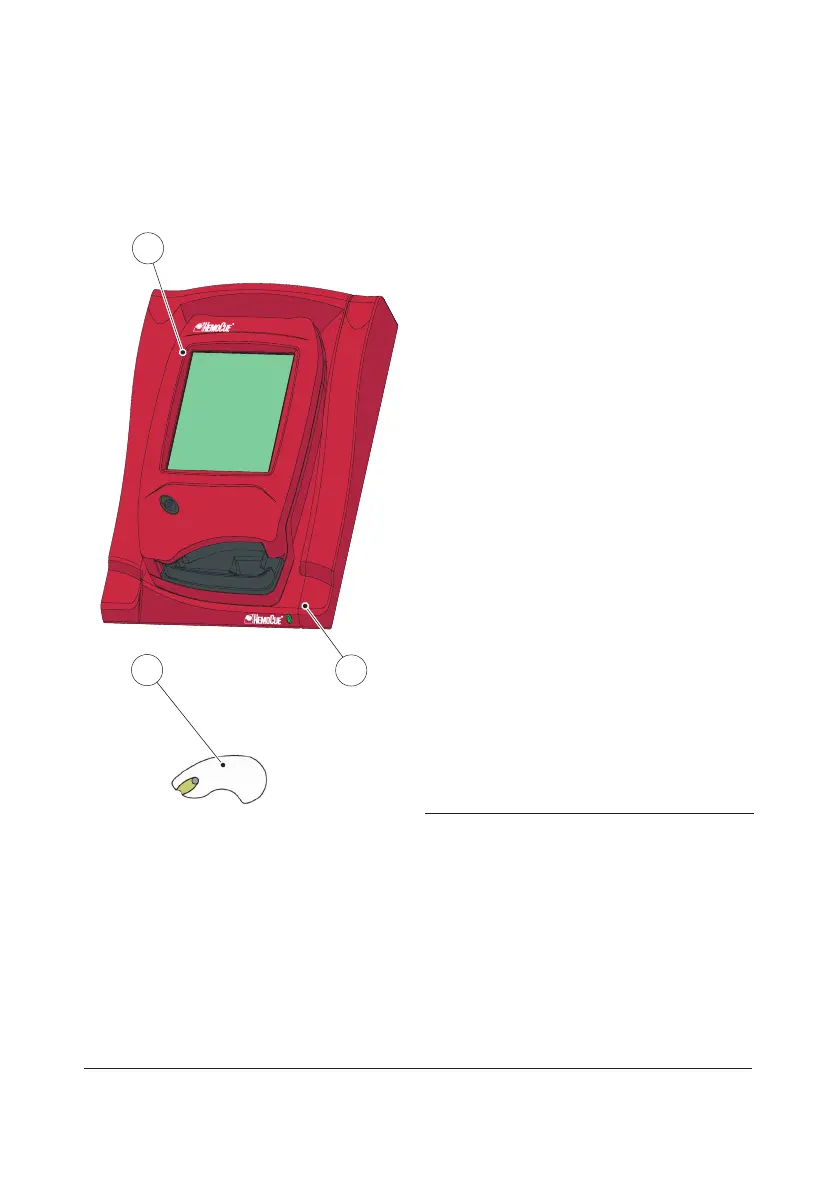

FIGURE 1-1
The System consists of a specially designed
Analyzer(1), specially designed Cuvettes, and
a specially designed Docking Stations(2).
The System is intended for In Vitro
diagnostic use only.
Analyzer
The Analyzer(1) is only to be used together
with the respective Cuvette(see relevant
Instructions for Use and Package insert).
Docking Station
Full data management is possible when the
Analyzer is placed in the Docking Station(3)
which is connected via USB or LAN to a PC
hosting the DMS Software. The Analyzer
Battery is recharged while in the Docking
Station.
Analyzer must always be fully inserted in the
Docking Station to ensure connectivity and
charging of the Battery.
Remove the Analyzer if there is no
communication between the Analyzer and
the Docking Station and then re-dock the
Analyzer in the Docking Station.
1 Analyzer
2 Cuvette*
3 Docking Station
* Not all Cuvettes shown. Note that the Cuvette is
specific for a System.
1
2
3
