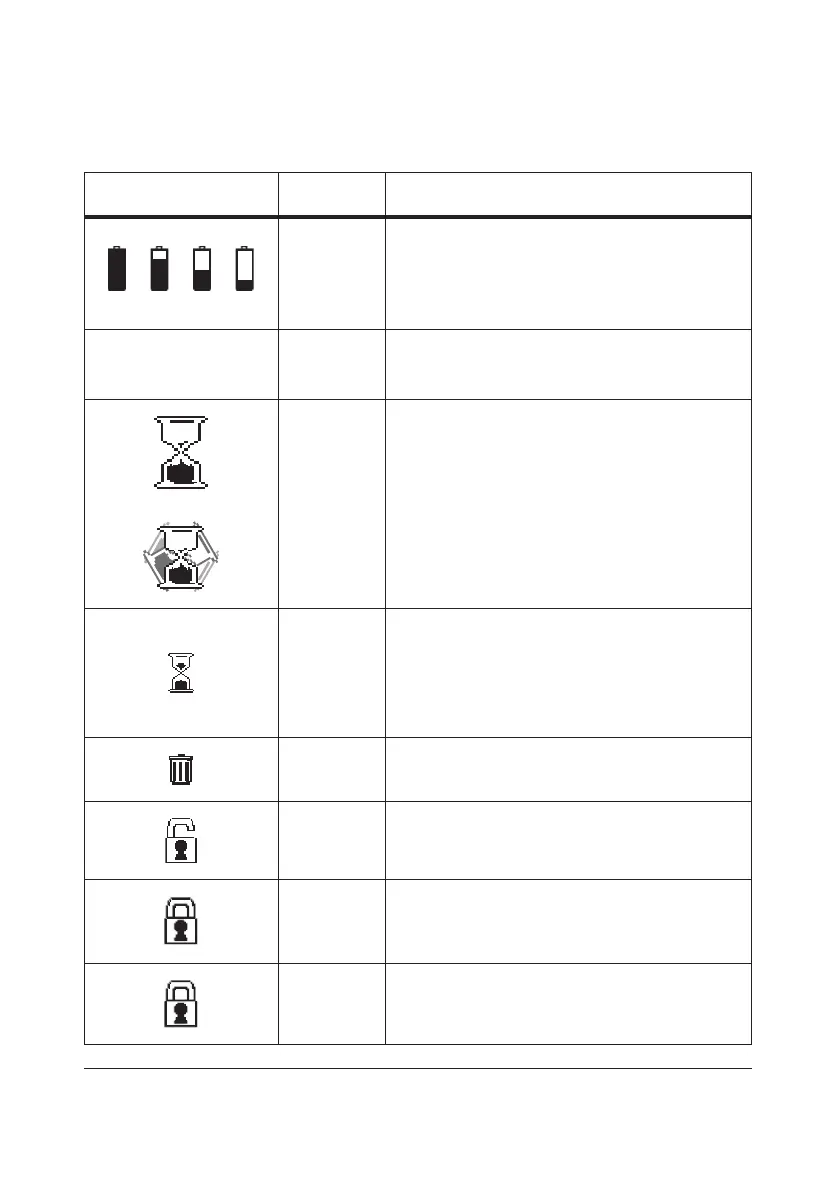

2.3.4 Display symbols
Symbol Designation Function
Battery Indicates the voltage status of the Battery in
four levels. The furthest to the left is fully
charged, the one to the right is almost empty.
Date Indicates the Date format chosen (from three
possibilities) in the Settings Menu.
Big
Hourglass
The big hourglass is displayed when the
Analyzer is in the measuring or selftesting state.
(rotating) The big hourglass is rotating when displayed.
Small
hourglass
When the small hourglass is displayed, the
instrument is in a measuring or blanking state.
When displayed in the Main Menu, only Settings
and Stored Data functions are available. It is also
possible to log out.
Waste bin Indicates that a result has been rejected. The
result is stored in the Analyzer.
QC
Reminder
Reminder that a QC Test will be required within
stated time or number of measurements.
QC Lockout QC Lockout, i.e. no more Patient Test
measurements can be made.
The required QC Test has not been performed.
Lockout Supervisory Lockout
The Analyzer has been locked by the Supervisor.
