HemoCue 201 DM Reference Manual

14
1.3.4 Docking Station overview
Front

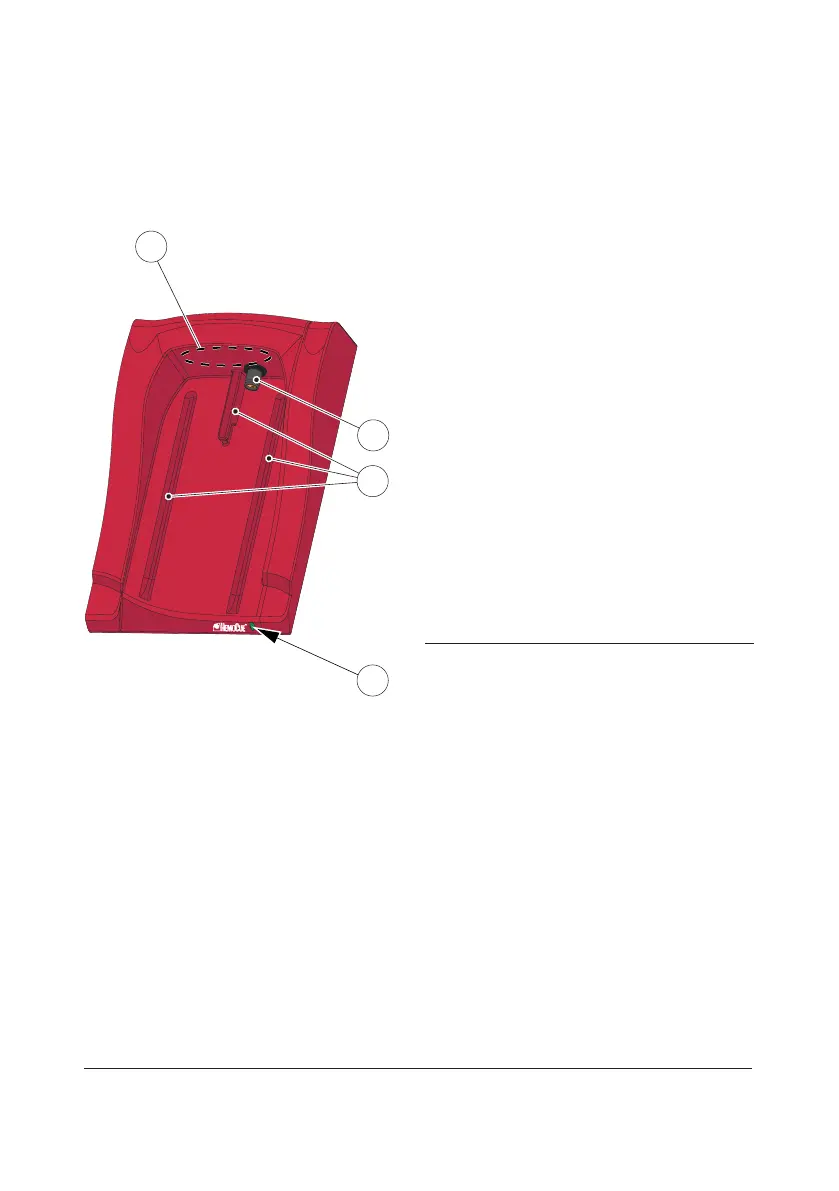

FIGURE 1-9
The Docking Station consists of the
following items:
• Tracks(1) for the Analyzer
• Power + USB signal outlet(2) for the
Analyzer
• IR Transmitter/Receiver(3) for data
transmission to/from the Analyzer
• LED(4)
The combined Power + USB signal outlet(2)
is not a standard USB port, but a special
connector which fits the corresponding
connector on the Analyzer.
The IR Transmitter/Receiver(3) is located
inside the casing.
Do not cover or block the items on the back
panel; doing so may result in malfunction.
1 Tracks
2 Power outlet
3 IR Transmitter/Receiver
(not in Docking Stations labelled PDS
+
or SDS
+
)
4 LED
2
4
3
1
