Hercules 10 User Manual

10 Zone LED Alarm Panel - Engineering Manual
33

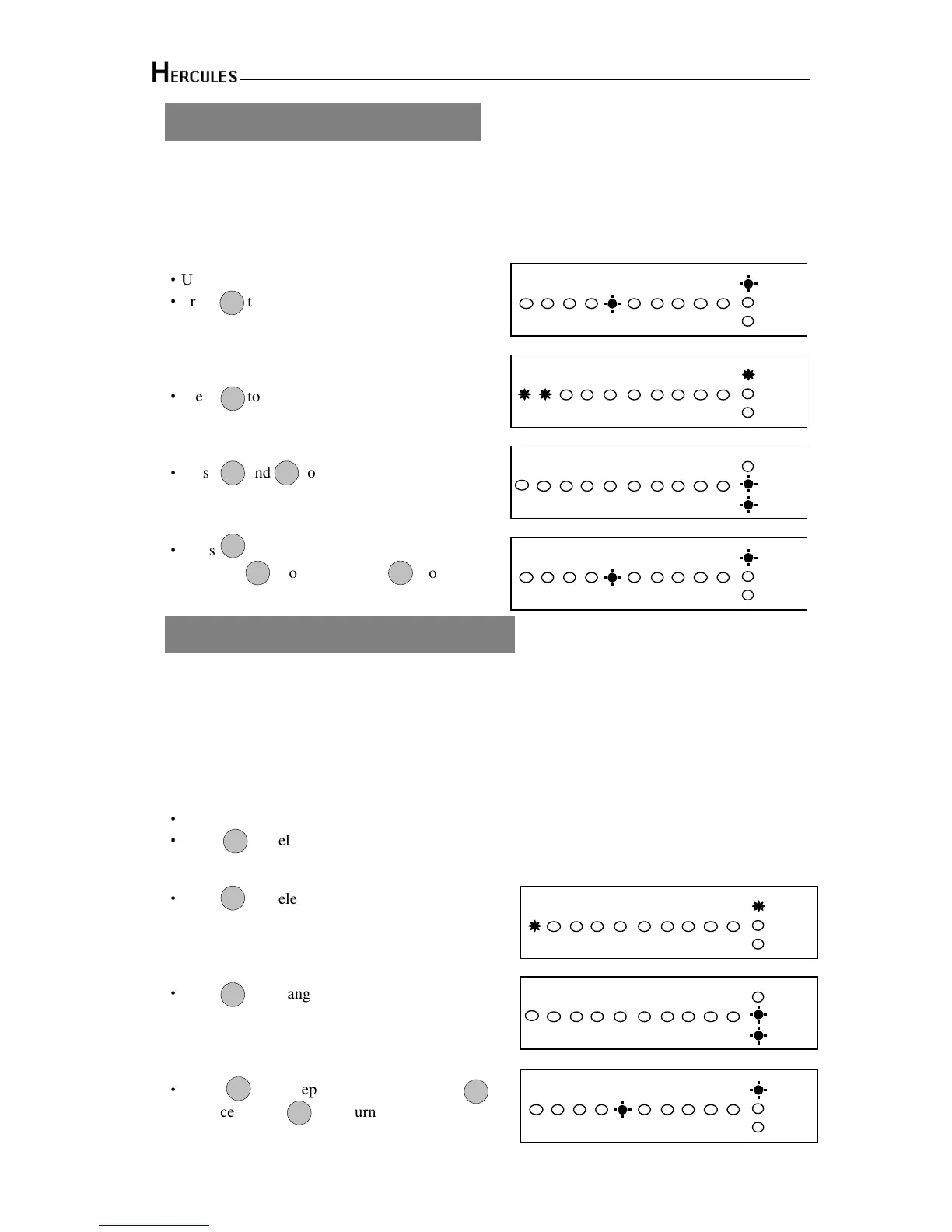

6.6.2 - How to Setup Bell Time
This is the duration that the external bell output is active. The range is 01-20 minutes. The
default is 14 minutes.
e.g. Change the Bell Time from 14 to 15 minutes.
· Under Engineer mode
· Press to select Setup system.
· Press to select bell time item.
· Press and to change 15 minutes.
· Press to accept the change.
Or press to cancel. Press to
Return to Engineer mode.
6.6.3 - How to Setup Rearm count
After an alarm the panel will automatically rearm itself when the external siren (Bell) timer has
expired. Any Zones and tamper, panic which still remain open at that time will be automatically
omitted.
The default is 3 rearms. 0 = no rearms, 1-8= number of rearms, 9= always rearm
Change the Rearm Count from 3 to Always rearm.
· Under Engineer mode
· Press to select system item.
· Press to select rearm count item.
LED 1 ON indicate you enter only 1 digit.
· Press to change to always rearm.
· Press to accept the change. Or press
to cancel. Press to return to engineer mode.
Day
PA
TA
MP
1
2
3
4
5
6
7
8
9
10
Day
PA
TAMP
1
2
3
4
5
6
7
8
9
10
Day
PA
TAMP
1
2
3
4
5
6
7
8
9
10
Day
PA
TAMP
1
2
3
4
5
6
7
8
9
10
R ES TE
5
1 5
Day
PA
TAMP
1
2
3
4
5
6
7
8
9
10
Day
PA
TAMP
1
2
3
4
5
6
7
8
9
10
Day
PA
TAMP
1
2
3
4
5
6
7
8
9
10
R ES TE
2
5
3
9
E
S
T
E
S
T
E
S
T
E
S
T

Hercules 10 Specifications

General

Smart Home Compatibility	Amazon Alexa, Google Assistant
Model	Hercules 10
Connectivity Protocol	Wi-Fi
Features	Motion detection, Door/window sensors
Type	Wireless Security System
Power Supply	AC Adapter
Battery Backup	Yes
Sensors Included	Door/Window Sensors, Motion Detector
Mobile App	Yes (iOS and Android)
Cloud Storage	Optional subscription

Summary

SAFETY

SECTION 1 - OVERVIEW OF SYSTEM

1.1 - Kit Contents

Lists the components included in the alarm system kit.

1.2 - Tools Required

Lists the tools necessary for installing the alarm system.

1.3 - System Features

Details the key features and capabilities of the alarm system.

1.4 - Explanation of Terms

Defines common terms and abbreviations used in the manual.

SECTION 2 – INSTALLING YOUR SYSTEM

2.1 - Fixing the Control Panel

Instructions on how to mount and secure the main control panel.

2.2 - PCB Layout and Fuses

Details the Printed Circuit Board layout, components, and fuse information.

2.3 - Tamper Network Configuration

Explains the tamper circuit for detecting unauthorized access to cables and detectors.

2.4 - Remote Keypad Installation

Information on connecting and configuring remote keypads, including jumpers.

2.5 - Security Zones Wiring

Describes how to connect and configure security zones using PIR and MS detectors.

2.6 - Fire Zone Circuit

Details the wiring and function of fire zones.

2.7 - Tamper Zone Circuit

How to configure zones for tamper detection.

2.8 - PA Zone Circuit

Wiring and setup for Personal Attack (PA) zones.

2.9 - Extension Speaker Connection

Instructions for connecting an external speaker to the control panel.

2.10 - External Siren Output (Bell Box)

Wiring and configuration for the external siren and strobe.

SECTION 3 - FACTORY DEFAULT SETTING

SECTION 4 - MAINS CONNECTION

SECTION 5 - FIRST POWER UP

SECTION 6 – HOW TO SET UP THE SYSTEM

6.1 - Entering Engineer Program Mode

Guide on accessing the system's engineer programming mode.

6.2 - Setting Up Programs

Details on setting up system programs like Full, Part1, and Part2.

6.3 - Setting Zone Types

Instructions for assigning types (Security, Fire, PA) to zones.

6.4 - Setting Zone Attributes

Configuration of zone attributes like Omit Allowed, Double Knock, Chime.

6.5 - Setting Access Codes

Procedures for setting up user, manager, and engineer access codes.

6.6 - System Setup Options

System configuration options including flags, bell time, and rearm counts.

6.7 - Viewing Event Log

How to access and view the system's event log.

6.8 - Testing the System

Procedures for testing system outputs and performing walk tests.

SECTION 7 - USING THE SYSTEM

7.1 - Setting the System

Steps for arming the system in various modes (Full, Part1, Part2).

7.2 - Omitting Zones

Procedure for temporarily disabling a zone from the alarm system.

7.3 - Unsetting the System

Steps for disarming the system using user or manager codes.

7.4 - Unsetting from Alarm and Resetting

Procedures to unset the system and reset it after an alarm.

7.5 - Using the Panic Alarm

Instructions for activating the panic alarm function from the keypad.

SECTION 8 - MAINTENANCE

SECTION 9 - TROUBLESHOOTING GUIDE

SECTION 10 - SPECIFICATIONS

Appendix 1 – Zone Location Table

Disposal and Recycling

Technical Support
