User Manual of DS-7200/7300/8100 Series DVR
62
2. Choose Camera in the list on the menu.
3. Choose preset in the Preset list.
Customizing Patrols
Purpose:
Patrols can be set to move the PTZ to different key points and have it stay there for a set duration before
moving on to the next key point. The key points are corresponding to the presets. The presets can be set
following the steps above in Customizing Presets.
Steps:
1. Enter the PTZ Control interface.
Menu>Camera>PTZ>More Settings
2. Select patrol number.
3. Select the under Patrol option box to add key points for the patrol.

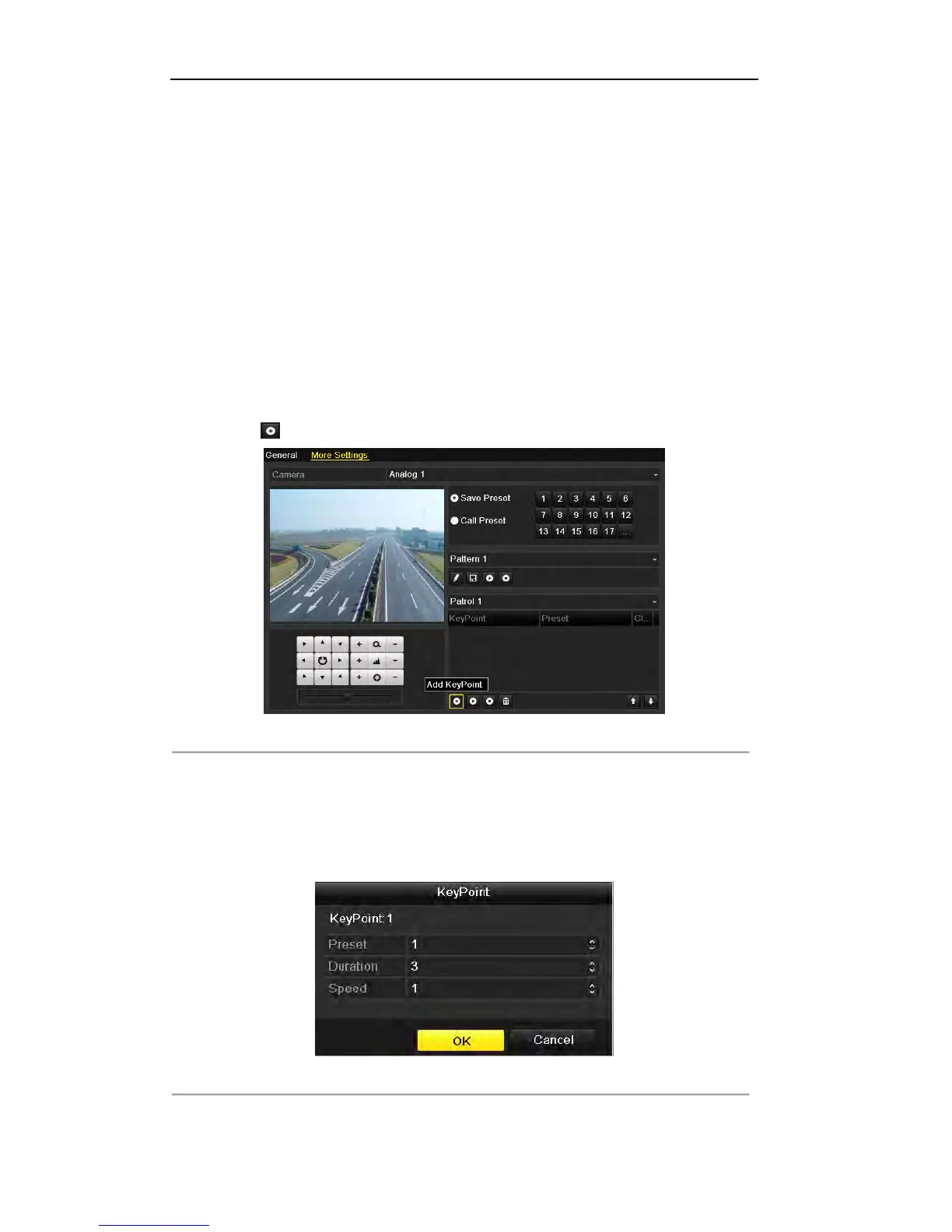

Figure 4. 6 PTZ- Add Key Point
4. Configure key point parameters, such as the key point No., duration of staying for one key point and
speed of patrol. The key point is corresponding to the preset. The Key Point No. determines the order at
which the PTZ will follow while cycling through the patrol. The Duration refers to the time span to stay
at the corresponding key point. The Speed defines the speed at which the PTZ will move from one key
point to the next.
Figure 4. 7 Key point Configuration
5. Click OK to save the key point to the patrol.
