HIKVISION DS-7200 Series User Manual

User Manual of DS-7200/7300/8100 Series DVR
171

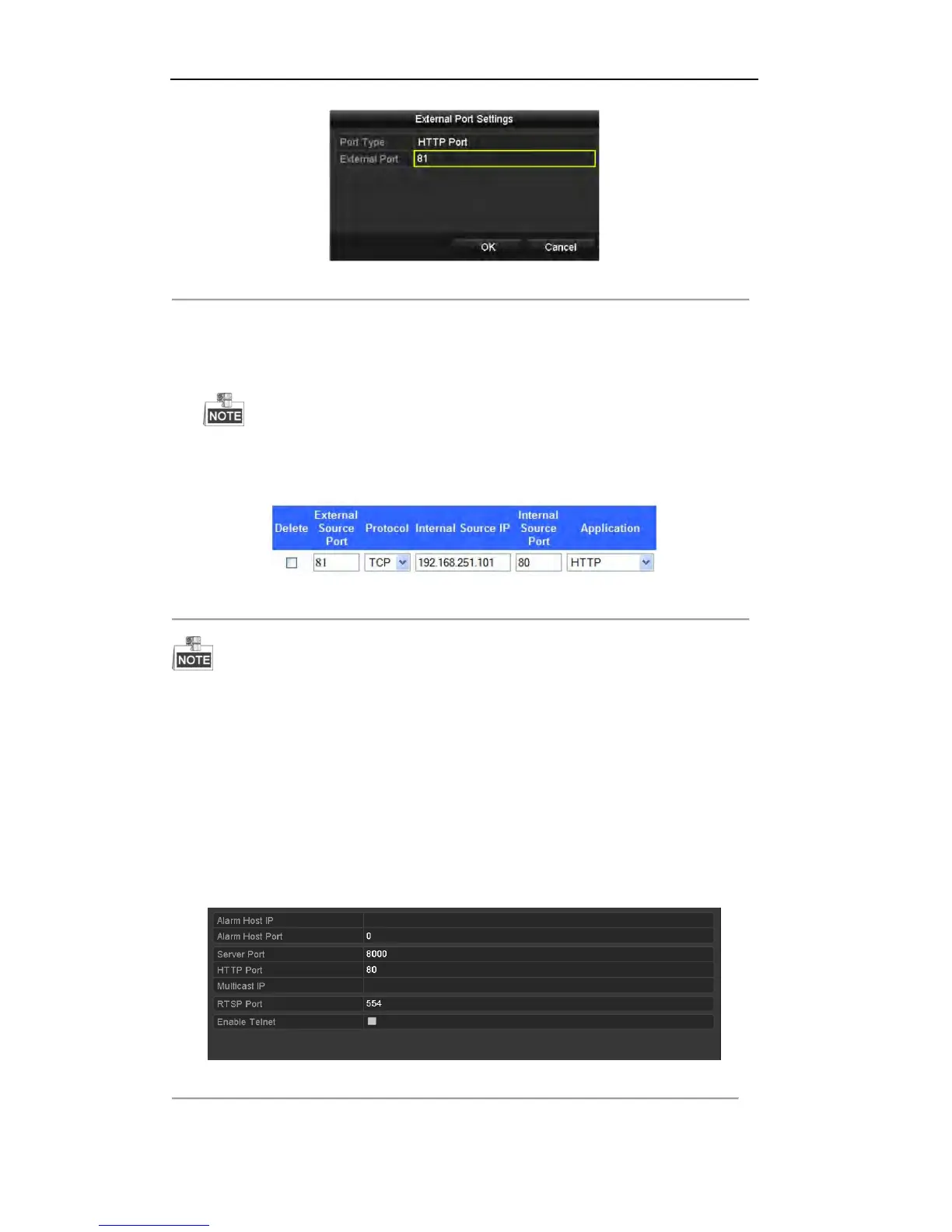

Figure 9. 27 External Port Settings Dialog Box
5. Click OK to save the setting for the current port and return to the upper-level menu.
6. Click Apply button to save the settings.
7. Enter the virtual server setting page of router. Input the internal port value in the Internal Source Port
text field, the external port value in the External Source Port text field, and other required information.
Each item should be corresponding with the internal or external device port, including server port, http
port, RTSP port and https port.
Figure 9. 28 Setting Virtual Server Item
The above virtual server setting interface is for reference only, it may be different due to different router
manufactures. Please contact the manufacturer of router if you have any problems with setting virtual server.
9.2.6 Configure More Settings
Steps:
1. Enter the Network Settings interface.
Menu > Configuration > Network
2. Select the More Settings tab to enter the More Settings interface.
Figure 9. 29 More Settings Interface

HIKVISION DS-7200 Series Specifications

General

Brand	HIKVISION
Model	DS-7200 Series
Category	DVR
Language	English
