HIKVISION DS-7608NXI-K2 User Manual

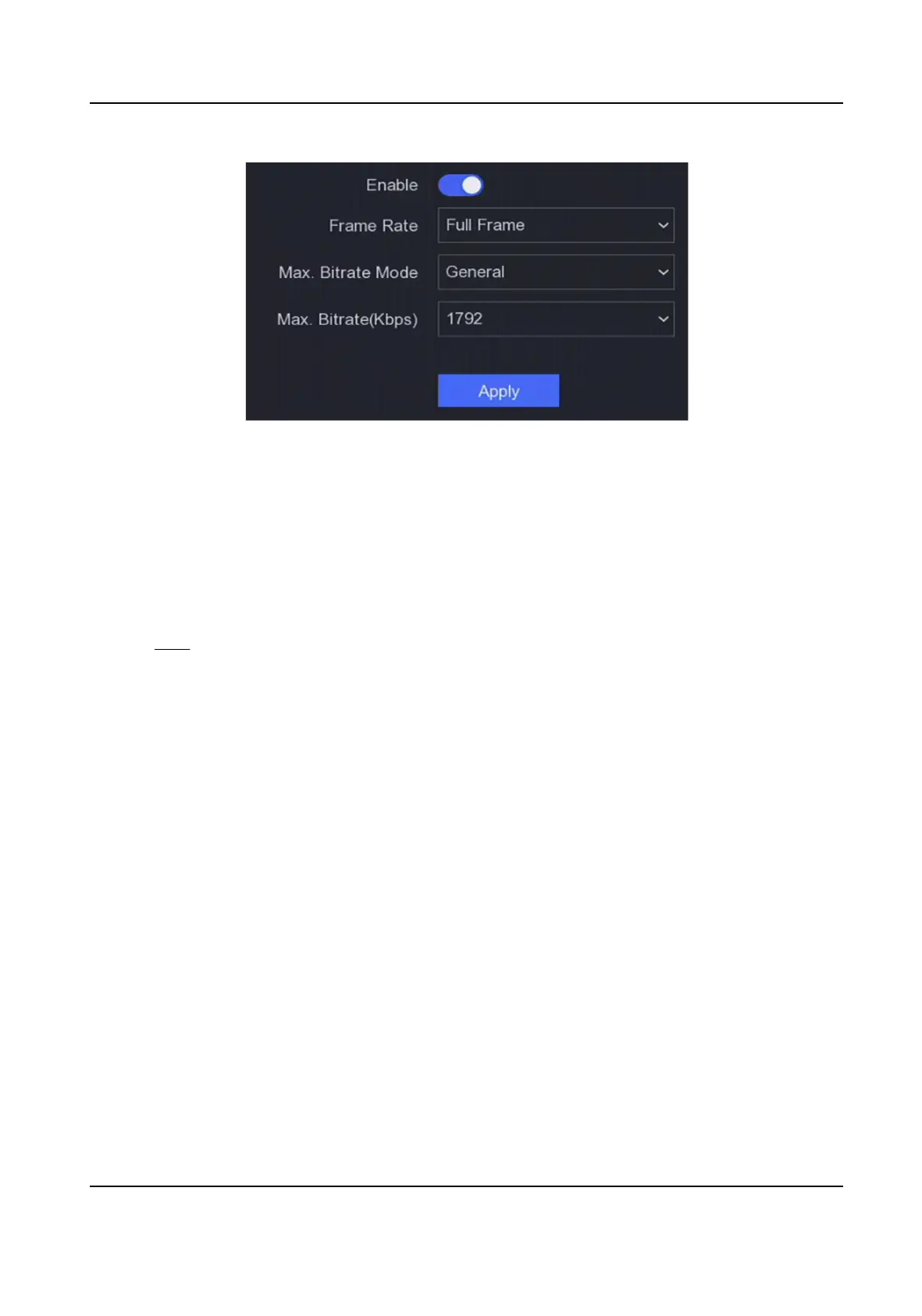

Figure 6-2 Channel-Zero
4.
Turn on Enable.
5.
Congure Frame Rate, Max. Bitrate Mode, and Max. Bitrate. The higher frame rate and bitrate
require higher bandwidth requirement.
6.
Click Apply.
6.1.3 User
Refer to User for details.
6.2 Network
Conguraon
6.2.1 TCP/IP
TCP/IP must be properly congured before you operate video recorder over network.
Steps
1.
Go to Conguraon → Network → General → TCP/IP .
2.
Congure network parameters.
Working Mode
Mul-address Mode
The parameters of the two NIC cards can be congured independently. You can select
LAN1 or LAN2 in the NIC type
eld for parameter sengs. You can select one NIC card as
default route. And then the system is connecng with the extranet and the data will be
forwarded through the default route.
Net-fault Tolerance Mode
Network Video Recorder User Manual
42

HIKVISION DS-7608NXI-K2 Specifications

General

Product color	Black
Rack capacity	1U
Rack mounting	Yes
Input bandwidth	80 Mbit/s
Output bandwidth	160 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Supported resolutions	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio formats supported	G.711 A-law, G.711 μ-law, G.722, AAC, G.726
Video formats supported	H.264, H.264+, H.265, H.265+
Wi-Fi	No
HDD capacity	10000 GB
HDD interface	SATA
Maximum storage capacity	20 TB
Number of HDDs installed	0
Number of HDDs supported	2
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 1000, 100 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Output current	2.5 A
Output voltage	48 V
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	80 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	Federal Communications Commission (FCC), CE

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
