HIKVISION DS-7608NXI-K2 User Manual

Steps
1.
Go to Conguraon → Event → Normal Event → Alarm Input .

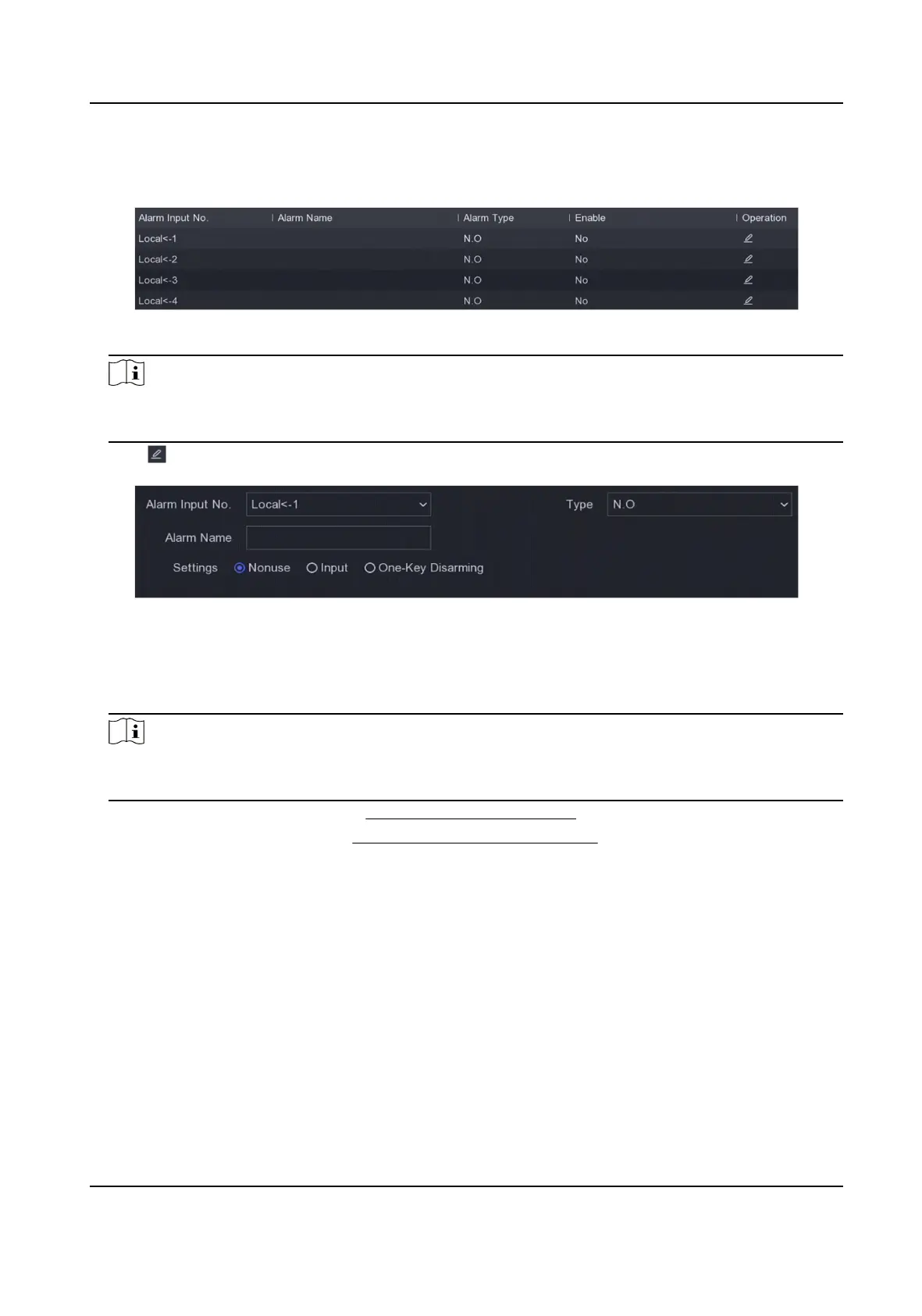

Figure 6-15 Alarm Input
Note
Local alarm input: Local alarm input is triggered by the external device that connected to the
video recorder's terminal block.
2.
Click of a desired alarm input.
Figure 6-16 Edit Alarm Input
3.
Customize Alarm Name.
4.
Set alarm type as N.O (normally open) or N.C (normally closed).
5.
Set
Sengs as Input to enable the funcon.
Note
If you set Sengs as Nonuse, the alarm input will be disabled. If you set Sengs as One-Key
Disarmig, the selected linkage method(s) of the alarm input will be disabled.
6.
Set the arming schedule. Refer to Congure Arming Schedule for details.
7.
Set the linkage
acons. Refer to Congure Alarm Linkage Acon for details.
8.
Click Apply.
Alarm Output
Trigger an alarm output when an alarm is triggered.
Steps
1.
Go to Conguraon → Event → Normal Event → Alarm Output .
Network Video Recorder User Manual
65

HIKVISION DS-7608NXI-K2 Specifications

General

Product color	Black
Rack capacity	1U
Rack mounting	Yes
Input bandwidth	80 Mbit/s
Output bandwidth	160 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Supported resolutions	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio formats supported	G.711 A-law, G.711 μ-law, G.722, AAC, G.726
Video formats supported	H.264, H.264+, H.265, H.265+
Wi-Fi	No
HDD capacity	10000 GB
HDD interface	SATA
Maximum storage capacity	20 TB
Number of HDDs installed	0
Number of HDDs supported	2
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 1000, 100 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Output current	2.5 A
Output voltage	48 V
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	80 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	Federal Communications Commission (FCC), CE

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
