OPERATOR'S STATION
1-71
4
M1CC-01-031
M1U1-01-028
2
3

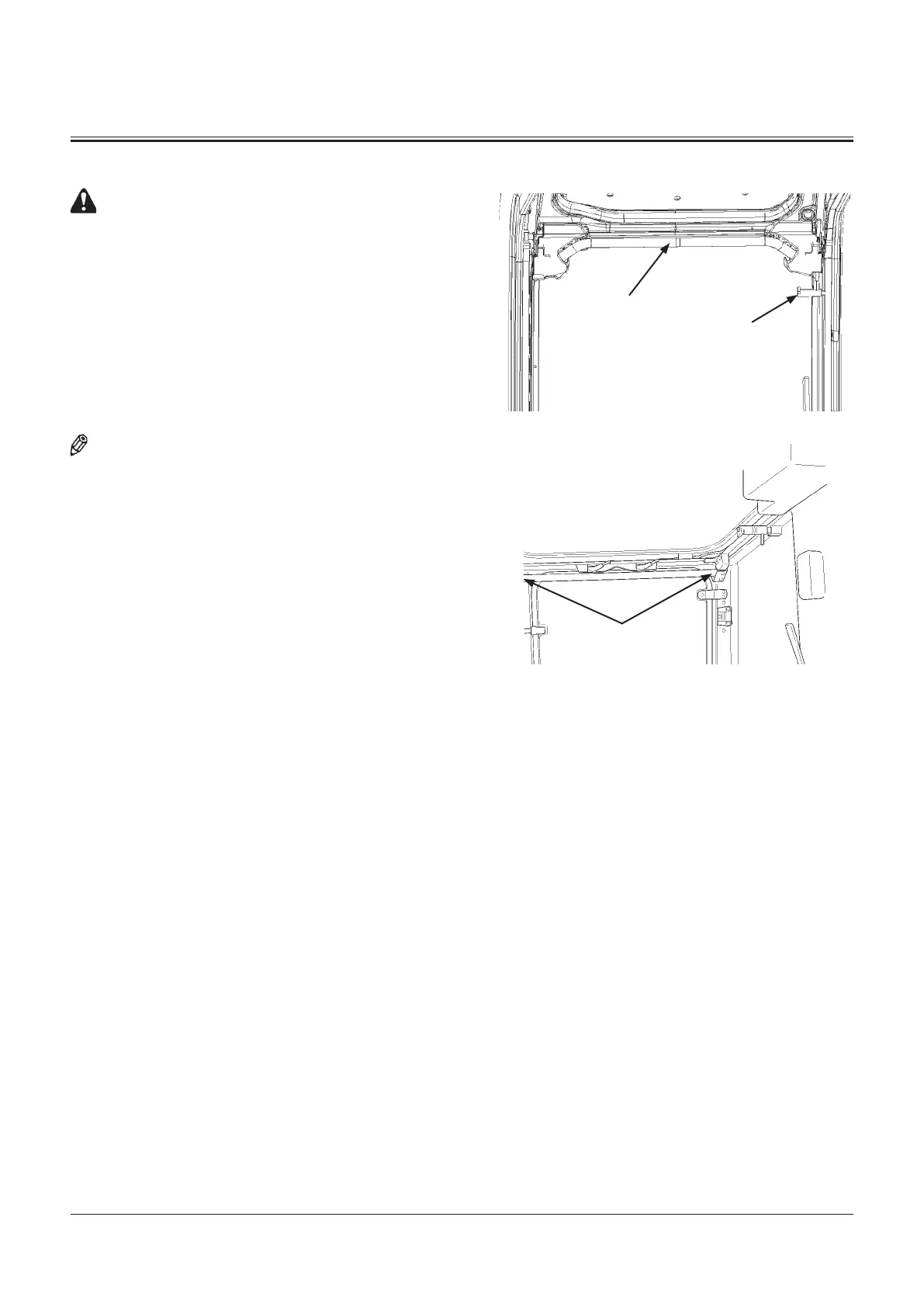

CLOSING UPPER FRONT WINDOW
CAUTION: Avoid possible injury while closing win-
dow.
Upper front window comes down very forcefully.
Close window only when sitting in the operator's seat.
Guide window down slowly.
1. Pull out lock pin (3) to unlock window.
2. Slightly move the window forward while pushing lock
release levers (2) to release auto lock (4).
3. Pull window down slowly until it securely catches into
auto lock (4).
NOTE: The wiper and washer won’t operate until the upper
front window is completely closed.
