MAINTENANCE
7-45
2
Drain Fuel Filter--- daily
IMPORTANT: The engine may be damaged if you do not
drain fuel filter daily.
Fuel main filter and pre-filter separates that
may mixed with the fuel.
Fuel filter contains a float which rises as water accumulates.
Be sure to drain daily the water accumulated in the filter
until float (4) goes to the bottom of case.

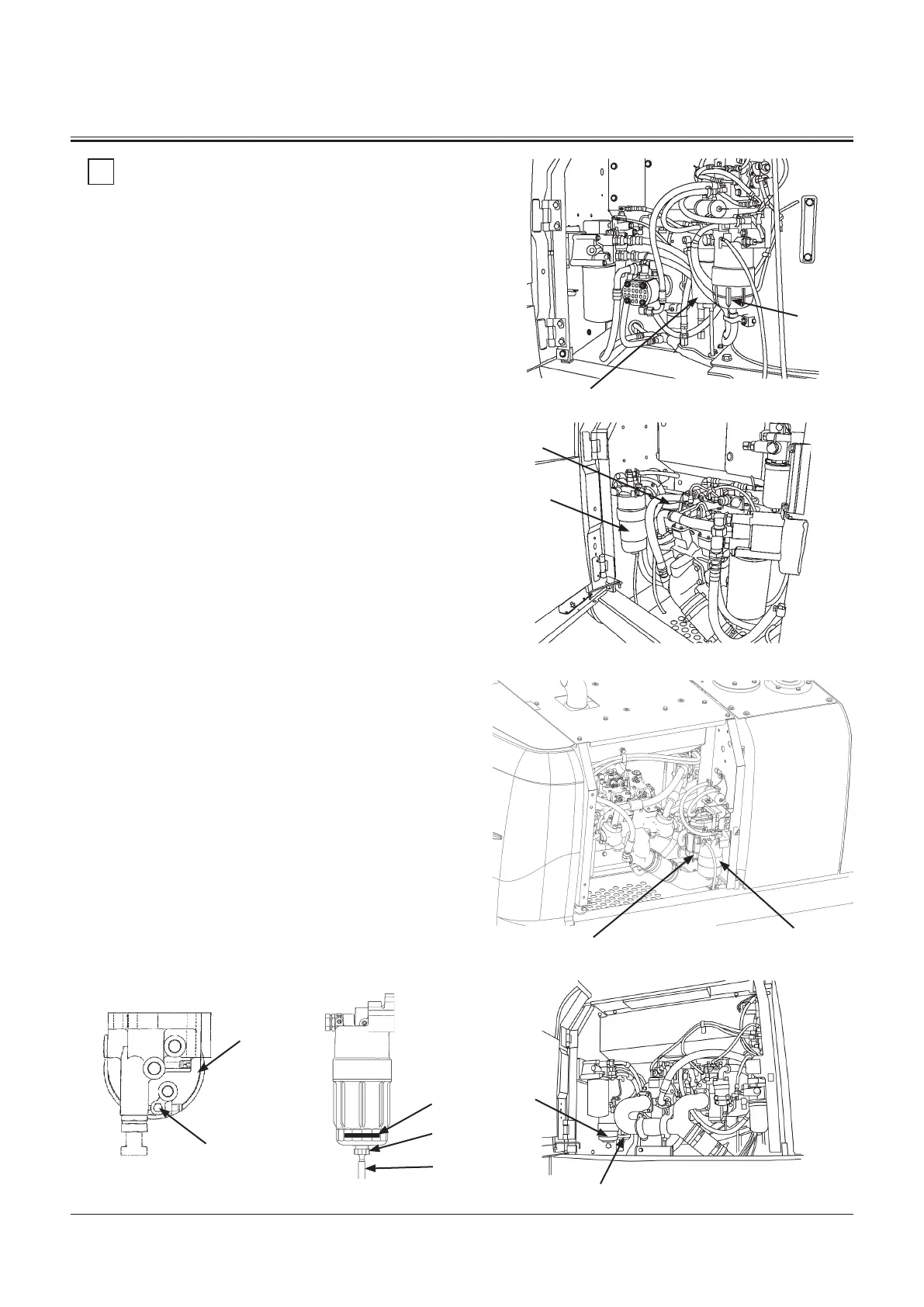

Draining Procedures (Main Filter)
1. Place 0.5 liters or larger capacity container under drain
hose (3) to collect the drained water.
2. Rotate drain plug (2) on the bottom of the filter about
4-turns counterclockwise. Drain the water accumulated
in the filter until float (4) goes to the bottom of case. If it
is difficult to drain, loosen plug (1) on the top of the main
filter.
3. After draining water, securely tighten drain plug (2) and
plug (1).
4. Start the engine. Check drain plug (2) and plug (1) for fuel
leaks.
Wrench size: 10 mm
M1U1-07-014
Main Filter
M81U-07-030M1GR-07-010
Main Filter
1
ZX330-3 Class
ZX200-3, 270-3 Class
M1U1-07-071
Pre-Filter
Main Filter
ZX180-3 Class
M1U1-07-098
Pre-Filter
Main Filter
4
2
3
M1U1-07-103
Pre-Filter
Main Filter
ZX120-3 Class
Pre-Filter
