SPECIFICATIONS
12-12

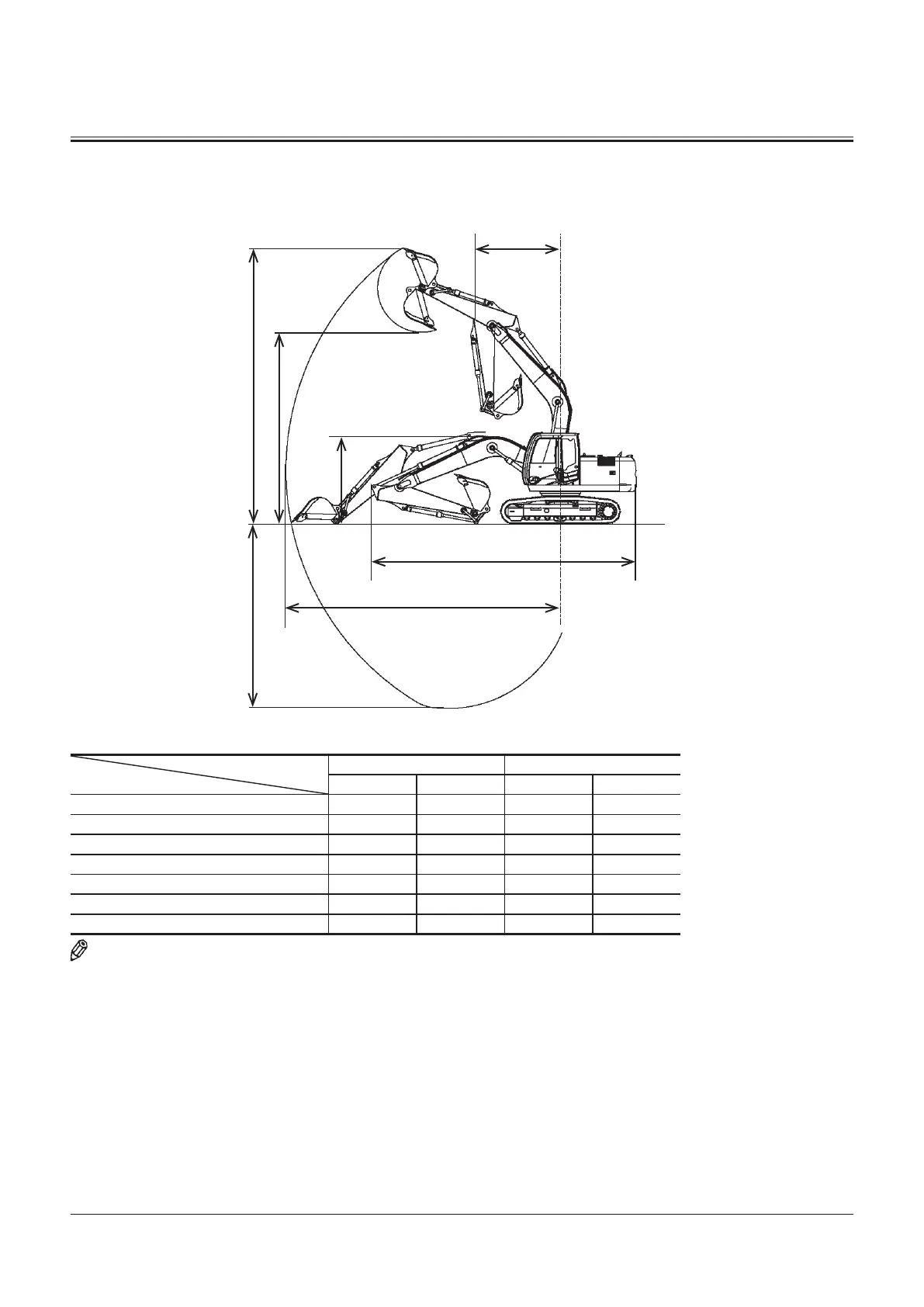

WORKING RANGES
ZX160LC-3 (Machine with Mono Boom)
Category
Item
2.22 m (7 ft 4 in) Arm 2.58 m (8 ft 6 in) Arm
mm ft•in mm ft•in
A: Maximum Digging Reach 8520 27’12” 8870 29’2”
B: Maximum Digging Depth 5620 18’6” 5980 19’8”
C: Maximum Cutting Height 8620 28’4” 8880 29’2”
D: Maximum Dumping Height 5940 19’6” 6170 20’3”
E: Transport Height 3190 10’6” 3010 9’5”
F: Overall Transport Length 8650 28’5” 8550 28’1”
G: Minimum Swing Radius 3290 10’10” 2910 9’7”
NOTE: * The dimensions do not include the height of the shoe lug (except Item E).
T1T1-01-01-003
C
B
D
A
F
E
G
