Hitachi 120-3 class User Manual

SPECIFICATIONS
12-38

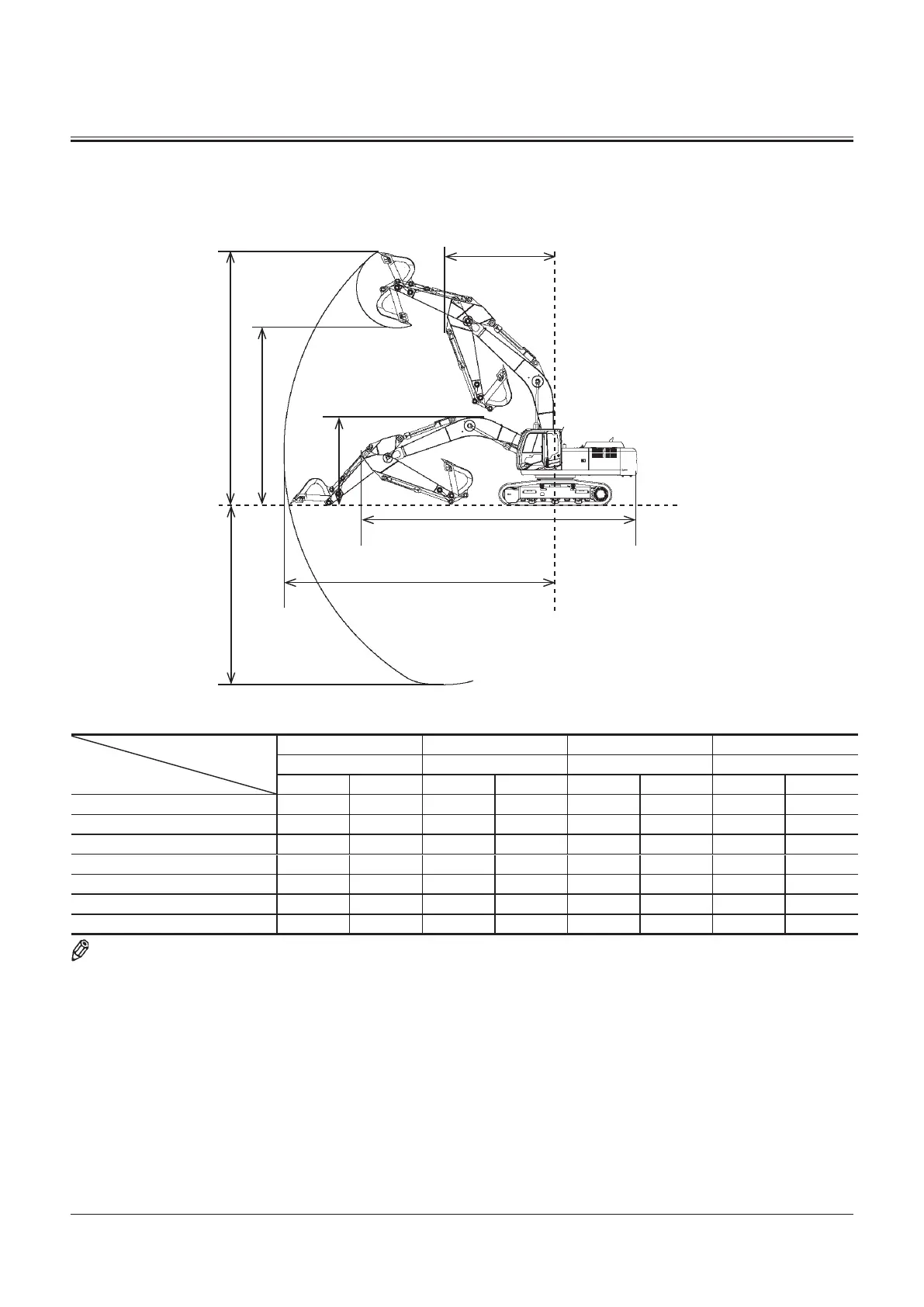

WORKING RANGES
ZX350LC-3, 350LCN-3
Category
Item
2.33 m (7 ft 8 in) Arm 2.67 m (8 ft 9 in) Arm 3.20 m (10 ft 6 in) Arm 4.00 m (13 ft 1 in) Arm
Backhoe Backhoe Backhoe Backhoe
mm ft•in mm ft•in mm ft•in mm ft•in
A: Maximum Digging Reach 10310 33’10” 10570 34’8” 11100 36’5” 11860 38’11”
B: Maximum Digging Depth 6500 21’4” 6840 22’5” 7380 24’3” 8180 26’10”
C: Maximum Cutting Height 9980 32’9” 9990 32’9” 10360 34’0” 10570 34’8”
D: Maximum Dumping Height 6900 22’8” 6940 22’9” 7240 23’9” 7630 25’0”
E: Transport Height * 3510 11’6” 3470 11’5” 3270 10’9” 3600 11’10”
F: Overall Transport Length 11170 36’8” 11130 36’6” 11000 36’1” 11090 36’5”
G: Minimum Swing Radius 4460 14’8” 4610 15’2” 4460 14’8” 4470 14’8”
NOTE: * The dimensions do not include the height of the shoe lug.
M1V1-12-004
A
G
B
D
C
F
Backhoe
E

Hitachi 120-3 class Specifications

General

Brand	Hitachi
Model	120-3 class
Category	Excavators
Language	English
