OPERATING THE MACHINE
5-31

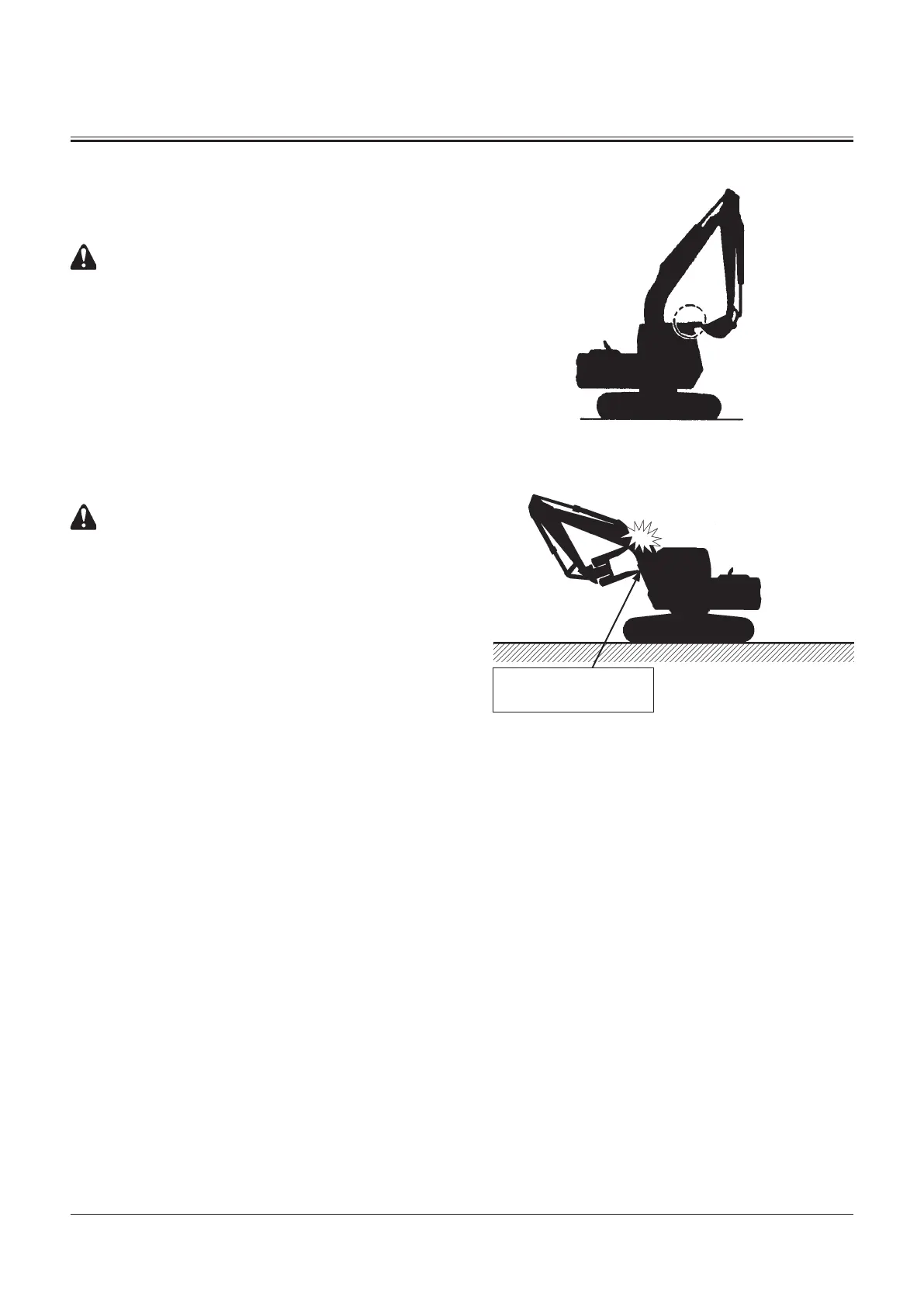

PRECAUTION FOR ARM ROLL-IN/BUCKET ROLL-IN
COMBINED OPERATION
--- If Headguard-Integrated Cab or Rainguard is
Equipped
WARNING: The bucket teeth will hit the headguard or
rainguard if the bucket is rolled in with the arm fully
rolled in, as illustrated. When performing combined
operation of long arm roll-in/bucket roll-in or when
rolling in the bucket with the arm fully retracted, be
careful not to hit the headguard or rainguard with the
bucket teeth.
WHEN INSTALLING AN ATTACHMENT LONGER
THAN STANDARD BUCKET
WARNING: When an attachment (such as a hydraulic
breaker or crusher), the overall length of which is
longer than that of the bucket, is installed, the attach-
ment may come in contact with the cab and/or the
boom. Operate the machine with care not to allow the
tip of the front attachment to hit the cab and/or the
boom while rolling in the front attachment.
M107-05-072
M1G6-05-009
Watch Out!
Take care not to hit the boom
with the front attachment
