Hitron CODA-551x User’s Guide

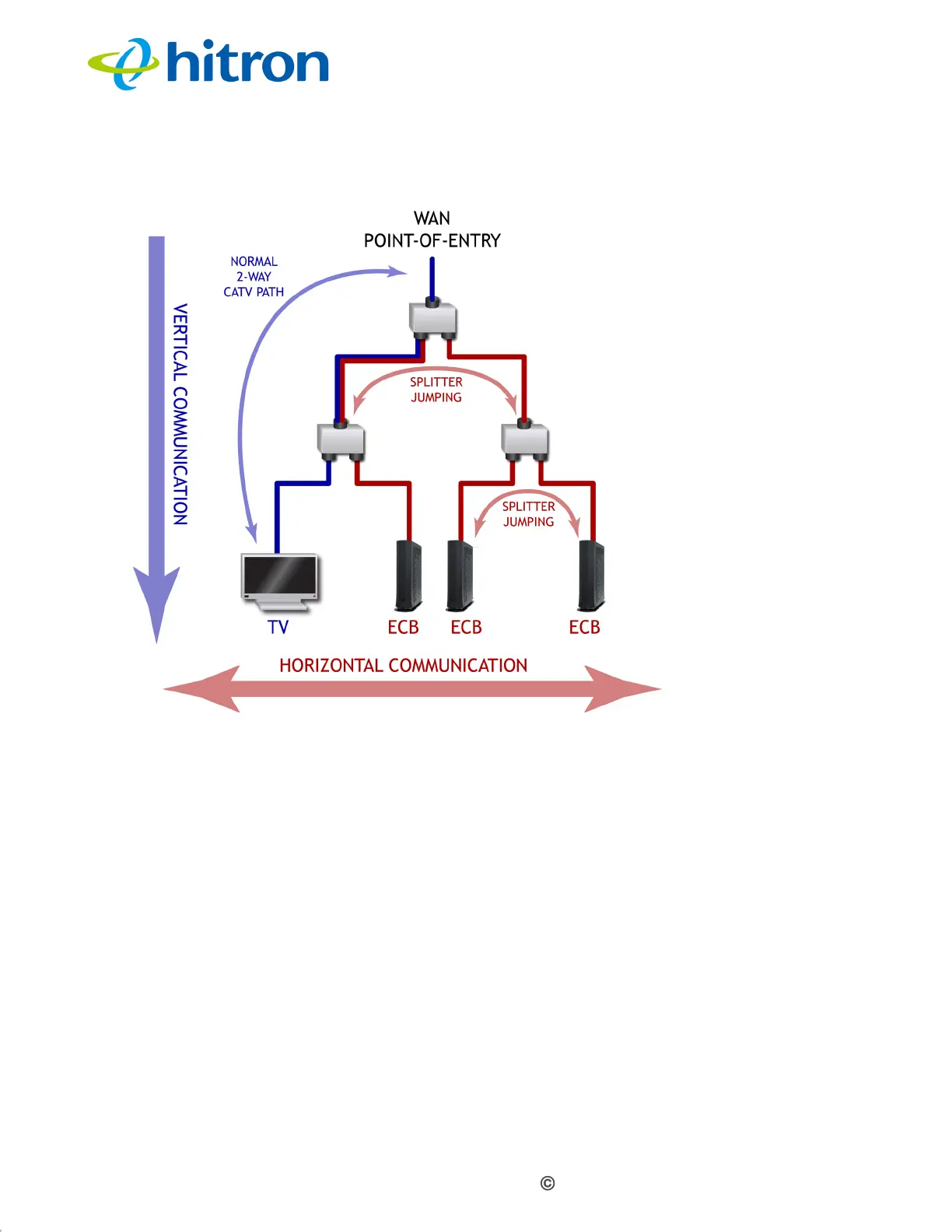

Figure 13: Traditional Vertical CATV vs. Horizontal MoCA Networking

3.1.12.2 Example MoCA Mesh Network

MoCA devices form a full “mesh”, or peer-to-peer network (where all devices

communicate directly with one another). In the following example, four MoCA devices

connect directly to and from one another, via ECBs, forming 12 unique MoCA links

(or 6 bidirectional links).

About this User's Guide3
Table 1: Default Credentials5
Table of Contents6
