Honda CRF450X 2010 User Manual

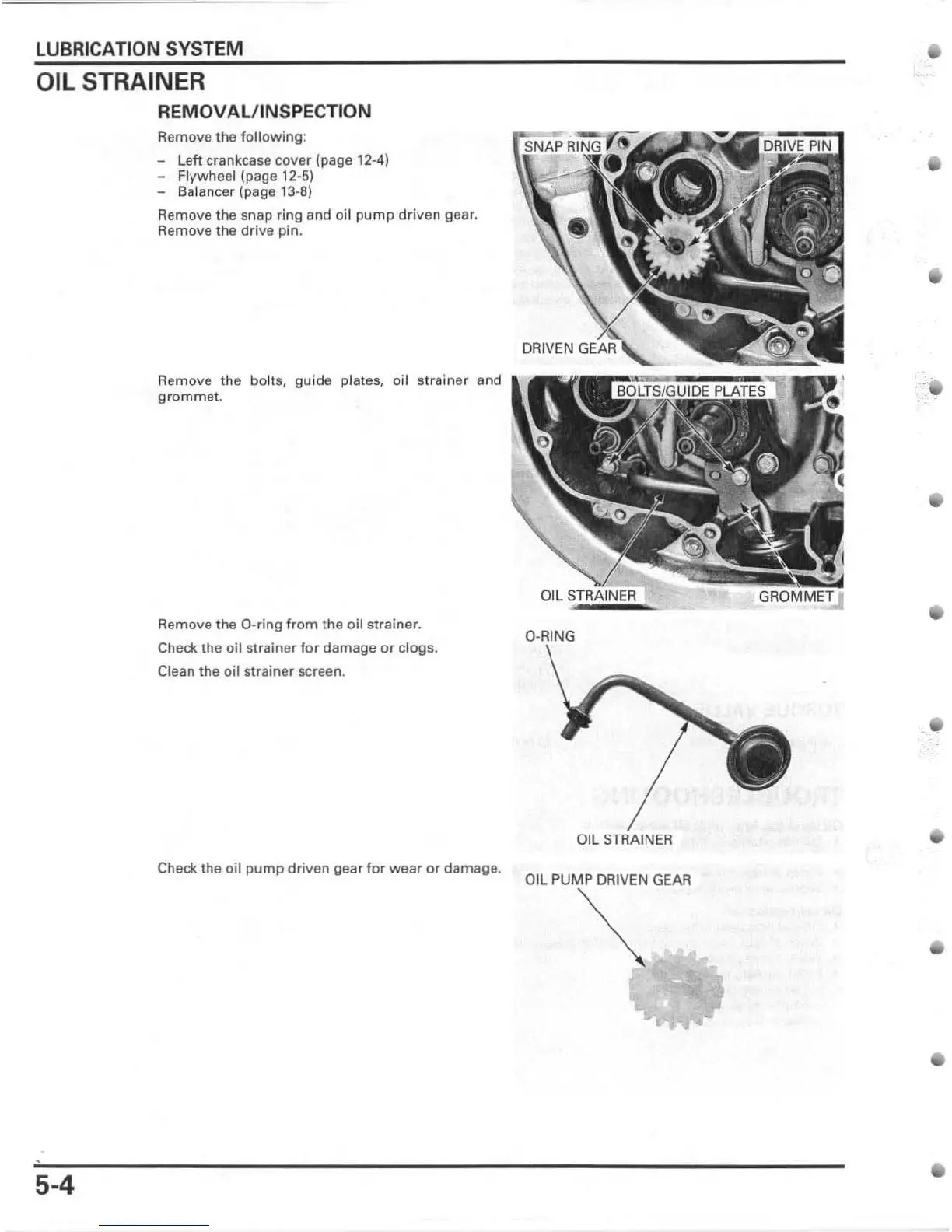

LUBRICATION SYSTEM
OIL STRAINER
REMOVAL/INSPECTION
5-4
Remove the foHowing:
- Left crankcase
cover (page 12-4)
- Flywheel (page
12· 5)
- Ba lancer (page 13-8)
Remove the snap ring and
oil pump driven gear.
Remove the drive pin.
Remove the bolts, guide plates, oil strainer and
grommet.
Remove the O- ring from the oil strainer.
Check the oil strainer for damage or clogs.
Clean the oil strainer screen.
Check the oil pump driven gear for wear or damage.
Oil STRAINER
Oil PUMP DRIVEN GEAR
~

Honda CRF450X 2010 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore and Stroke	96mm x 62.1mm
Compression Ratio	12.0:1
Transmission	Wide-ratio five-speed
Final Drive	#520 chain; 13T/51T
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and 13-position compression damping adjustability; 12.4 inches travel
Rake	27.38 degrees
