CRANKCASE/CRANKSHAFT /TRANSMISSION/BALANCER

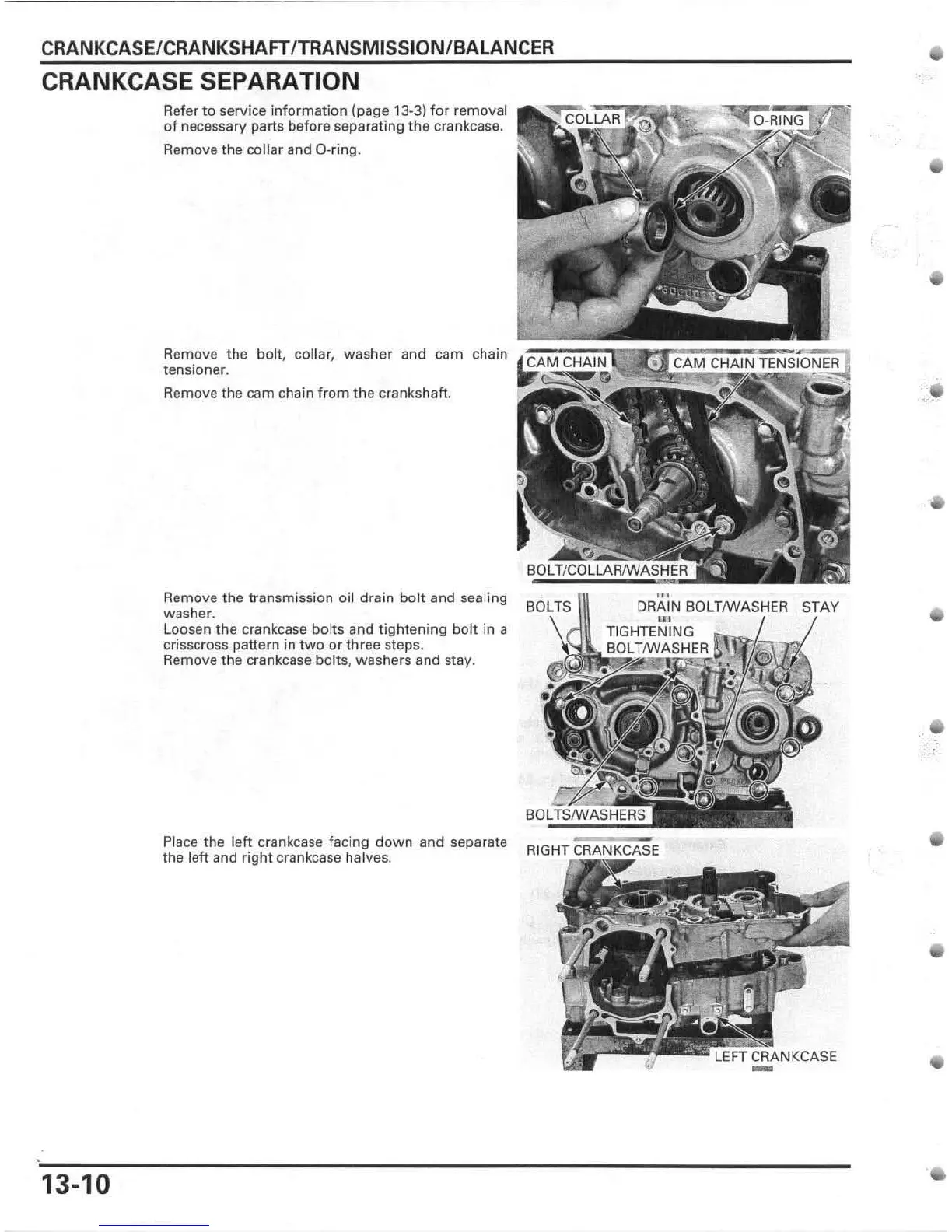

CRANKCASE SEPARATION
Refarte service information (page 13- 3) for removal
of necessary parts before separating the crankcase.
Remove the collar and a- ring.
Remove the bolt, coliar, washer and cam chain ~~~~~~~i~S~E~E~~~ ~ l
tensioner. ,
13-10
Remove the cam chain from the crankshaft.
Remove
the transm ission oil drain bolt and sealing
washer.
Loosen the crankcase bolts and tightening bolt in a
crisscross pattern in two or three steps.
Remove the crankcase botts, washers and stay.
Place the left crankcase facing down and separate
the left and right crankcase halves.
RIGHT CRANKCASE
