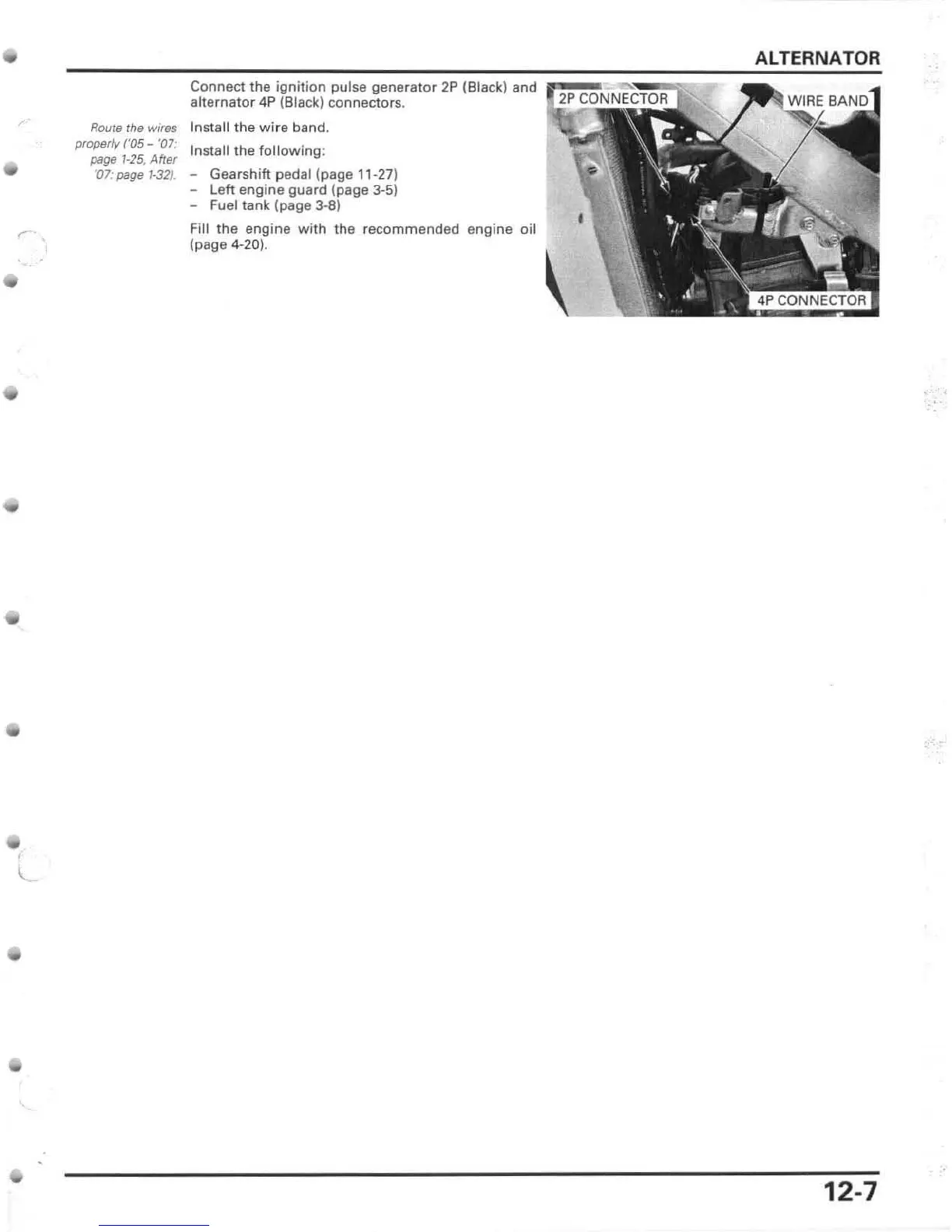

Route the wires
properly ('05 -
'07:
page
/·25,
Afrer
'07:
page
f-32}
.
Connect the
ignition
pulse generator
2P
(Btack) and
alternator
4P
(Black) connector
s.
Install the
wi
re band.
Install the
fo
llowing:
- Gearshift pedal (page
11
-27)
- Left engine
guard
(page 3-5)
- Fuel tank (page 3-8)
Fill the engine
with
the r
ecommended
e
ngine
oil
(page 4-20).
ALTERNATOR
12
-7

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Honda CRF450X 2010 and is the answer not in the manual?

Honda CRF450X 2010 Specifications

General IconGeneral
Engine Type449cc liquid-cooled single-cylinder four-stroke
Bore and Stroke96mm x 62.1mm
Compression Ratio12.0:1
TransmissionWide-ratio five-speed
Final Drive#520 chain; 13T/51T
Front Suspension47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Front BrakeSingle 240mm disc with twin-piston caliper
Rear BrakeSingle 240mm disc
Front Tire80/100-21
Rear Tire110/100-18
Wheelbase58.3 inches
Fuel Capacity1.9 gallons
IgnitionSolid-state CD with electronic advance
Rear SuspensionPro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and 13-position compression damping adjustability; 12.4 inches travel
Rake27.38 degrees
