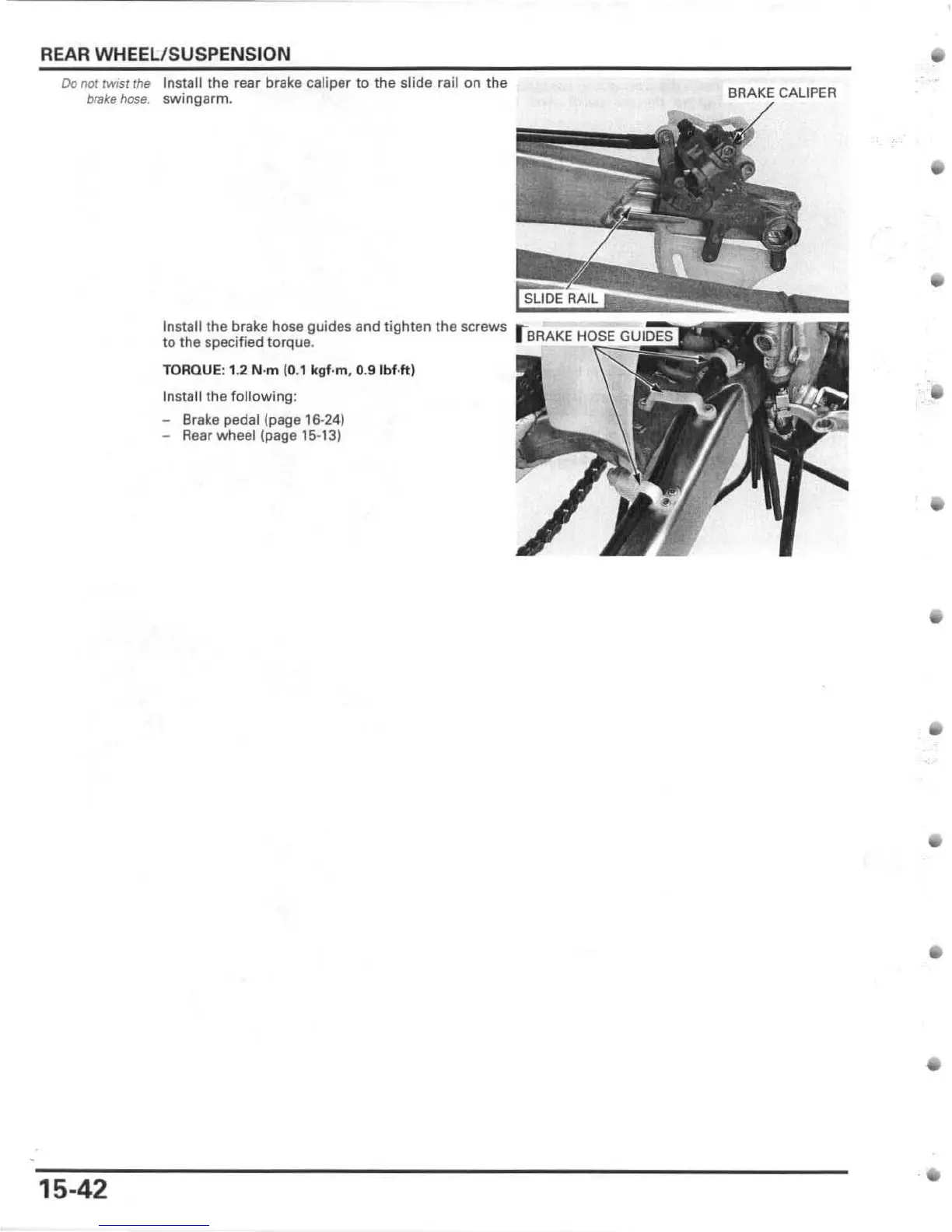

REAR WHEEl/SUSPENSION
Do nor FWlSf fhe Install the rear brake caliper to the slide rail on the
brake hose. swing arm.
15-42
Install the brake hose guides and tighten the screws
to the specified torque .
TORQUE: 1.2 N'm 10 .1 kgf ·m, O. 9Ibf ·ft)
Install
the following :
- Brake pedal (page 16-24)
- Rear wheel (page
15 -13)
BR AK E CALIPER
•

Honda CRF450X 2010 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore and Stroke	96mm x 62.1mm
Compression Ratio	12.0:1
Transmission	Wide-ratio five-speed
Final Drive	#520 chain; 13T/51T
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and 13-position compression damping adjustability; 12.4 inches travel
Rake	27.38 degrees
