Honda CRF450X 2010 User Manual

l
l
Ssvent,..lhf88
dl ff ere nl rhickness
sh ims lire 8vailable
'rom 1.200 mm 10
3.000mm in
Incr ements of
O.02 5 mm.
InS /8 11 the shims in
t helf origi na l
locations.

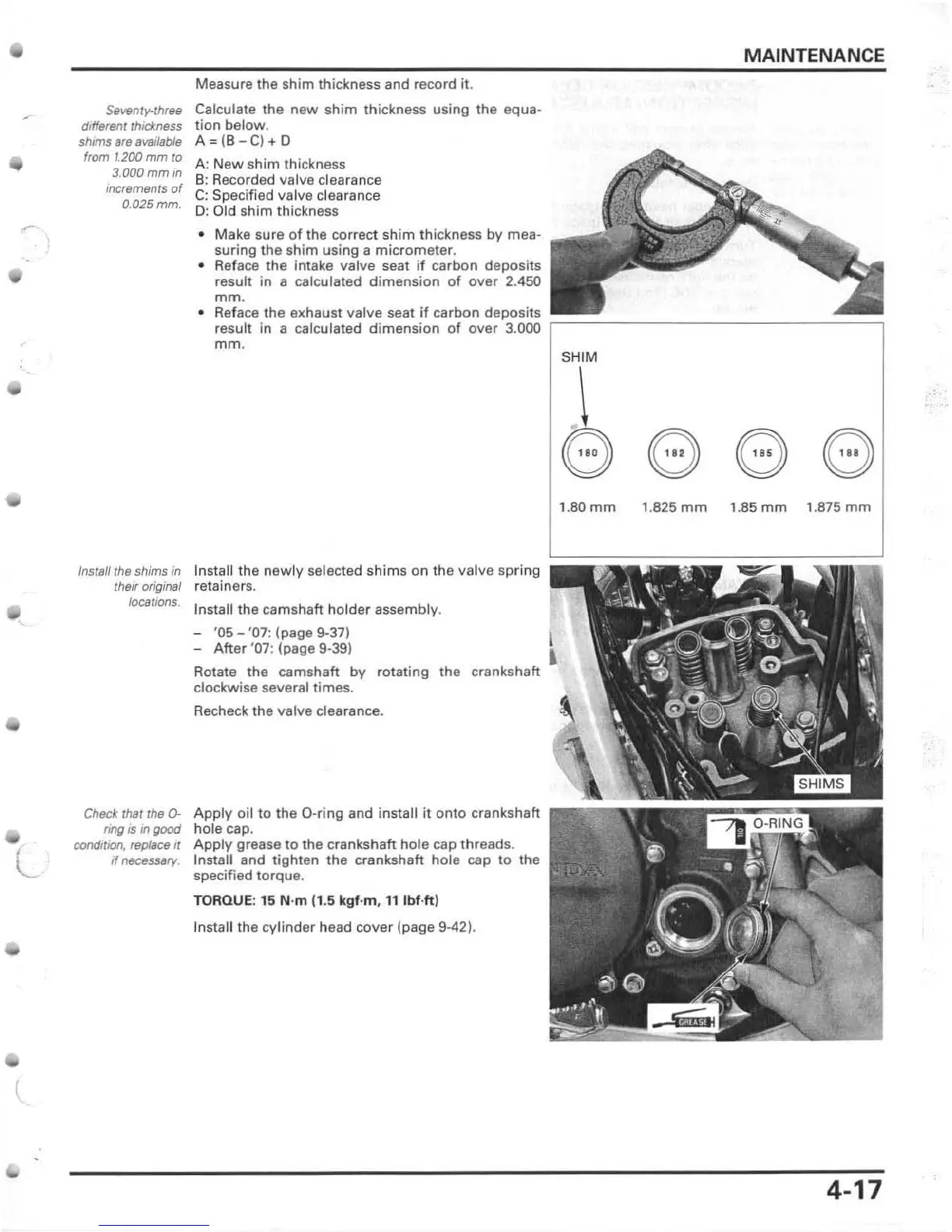

Measure the shim thickness and record it.
Calculate the new shim thickness using the equa-
tion below.
A=(B-C\+D
A: N ew shim thickness
B: Recorded valve clearance
C: Specified valve clearance
D: O ld shim thickness
• Make sure of the correct shim thickness by mea-
suring the shim using a micrometer .
• Aefaea the intake valve seat if carbon deposits
result in a calculated dimension of over 2.450
mm.
• Re t aee the exhaust valve seat if carbon deposits
result in a calculated dimension
of over 3.000
mm.
Install the new ly se lected sh ims on the valve sp rin g
retainer s.
Install the camshaft holder assembly.
-
'05 - '07: (page 9-37)
- After
'07: (page 9-39)
Rotate the camshaft by rotating the crankshaft
clockwise several times.
Recheck the
valve clearance.
Check t hat the 0- Apply oil to the O-ring and install it onto crankshaft
MfJ IS In good hole cap.
condition, rep/Bcelf Apply grease to the crankshaft hole cap threads.
If necessary. Install and tighten the crankshaft hole cap to the
specified torque,
TORQUE : 15 N'm (1 .5 kgf·m, 11 Ibf.ft)
Install
the cylinder head cover (page 9-42 ).
MAINTENANCE
SH IM
.\
eeee
1.80 mm 1. 82Smm 1.85mm 1. 875mm
4-17

Honda CRF450X 2010 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore and Stroke	96mm x 62.1mm
Compression Ratio	12.0:1
Transmission	Wide-ratio five-speed
Final Drive	#520 chain; 13T/51T
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and 13-position compression damping adjustability; 12.4 inches travel
Rake	27.38 degrees
