• max. measurement error: ±0.05
% of the measurement
(in the measuring range 4 ... 20 mA and between −10 to +55 °C
ambient temperature)
• max. cable length: 500 m
Hints on parameterization
Branch <device> – Basic System – I/O boards –
Board <x>: MFE7
Set the following values:
• channel A1+ A1− or A2+ A2−: type Current input
• parameter Power supply: value On (source mode)

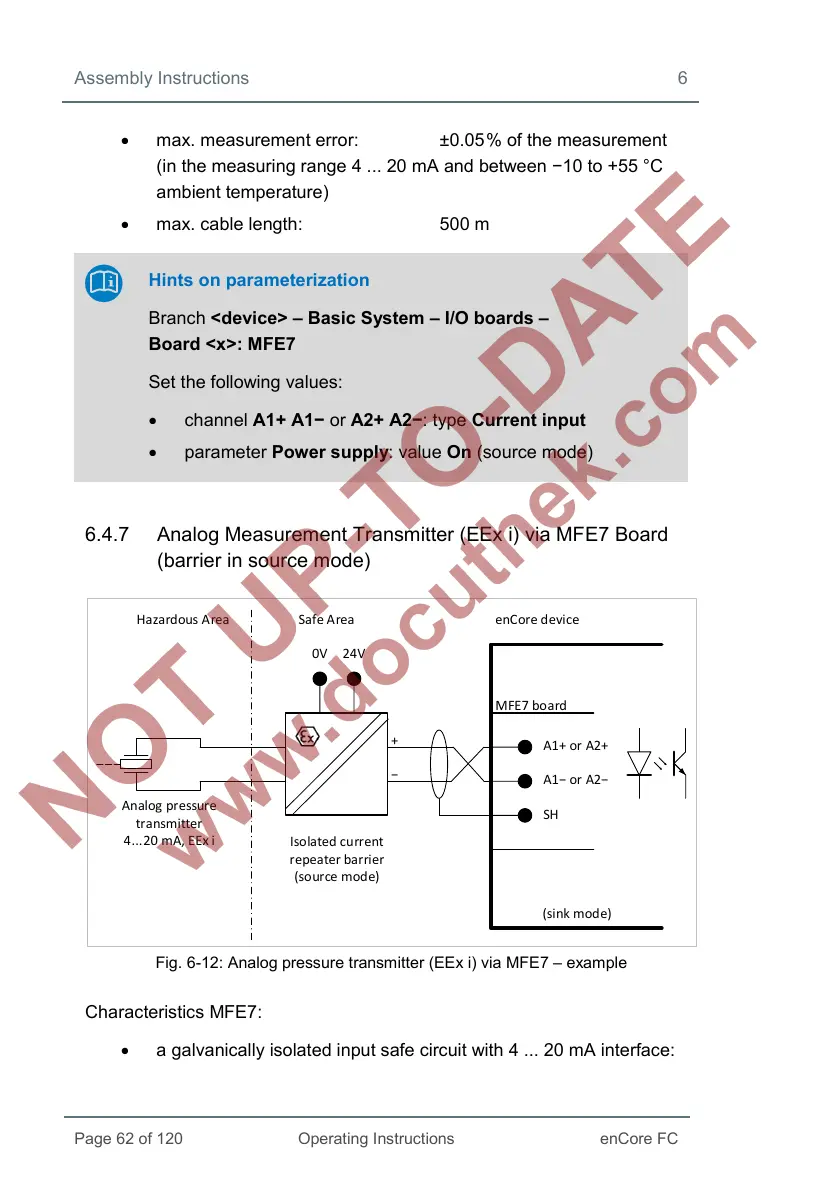

6.4.7 Analog Measurement Transmitter (EEx i) via MFE7 Board
(barrier in source mode)
Hazardous Area Safe Area
enCore device
MFE7 board
A1+ or A2+
A1− or A2−
SH
Analog pressure
transmitter
4...20 mA, EEx i
0V 24V
Isolated current
repeater barrier
(so urce mode)
+
−
(sink mode)
Fig. 6-12: Analog pressure transmitter (EEx i) via MFE7 – example
Characteristics MFE7:
• a galvanically isolated input safe circuit with 4 ... 20 mA interface:
