Honeywell enCore FC Series User Manual

6 Assembly Instructions
enCore FC
Operating Instructions
Page 71 of 120
6.4.12 HART Measurement Transmitter (EEx i) via MFE7 Board
(barrier in source mode)
Hazardous Area Safe Area enCore device
MFE7 board
A1+ or A2+
A1− or A2−
SH
0V 24V
Isolated current
repeater barrier
(HART compatible,
so urce mode)
HART pressure
transmitter, EEx i
HART temperature
transmitter, EEx i
HART
communicator
+
−
(sink mode)

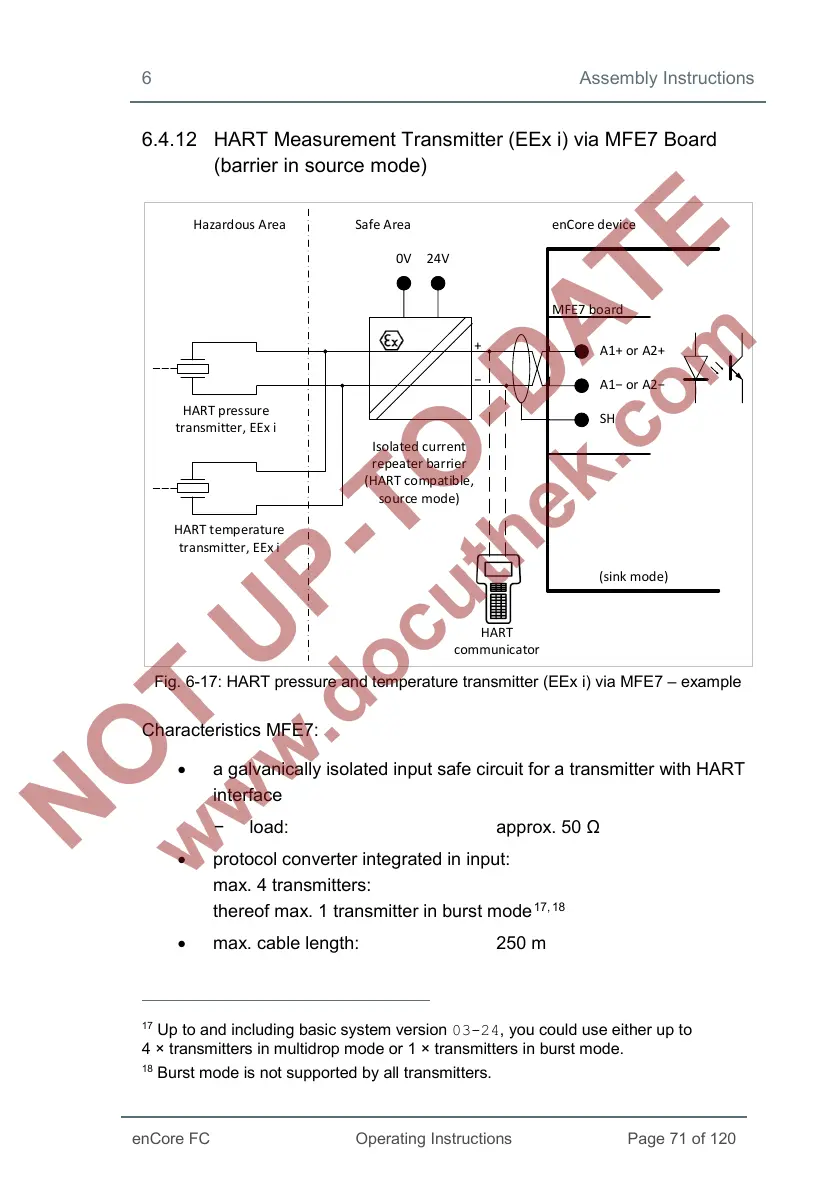

Fig. 6-17: HART pressure and temperature transmitter (EEx i) via MFE7 – example
Characteristics MFE7:
• a galvanically isolated input safe circuit for a transmitter with HART
interface
− load: approx. 50 Ω
• protocol converter integrated in input:
max. 4 transmitters:
thereof max. 1 transmitter in burst mode
17, 18
• max. cable length: 250 m
17
Up to and including basic system version 03-24, you could use either up to
4 × t
ransmitters in multidrop mode or 1 × transmitters in burst mode.
18
Burst mode is not supported by all transmitters.
