4.2 Main Menu
From the Main Menu of the NFS2-3030, the following options can be selected:
EVENT COUNTS DISPLAY: Display the event counts screen. This screen
will automatically display if an off-normal event requiring acknowledgment
occurs.
MULTIPLE EVENT LIST: Display off-normal events simultaneously in
groups of eight. It displays automatically for off-normal events when the Can-
ada event order has been selected. Refer to “Panel Settings” on page 32 for
event order information.
HISTORY DISPLAY: Select a type of history event to view, to set time/date
range, or point range viewing parameters for history. Refer to History Display
(History Select) on page 28.
READ STATUS: Displays the point select screen. Use to view the present sta-
tus of points, zones, and other system information. Refer to “Point Select
Screen” on page 43.
PROGRAM/ALTER STATUS: Display options for panel programming, point programming, autoprogramming, clear programming, altering the status
of points, walk test, and other information. Refer to page 29.
PRINTER FUNCTIONS: Display options to print reports. This key will appear only if a printer operation has been selected. Refer to“Supervision” on
page 40 for selection information.
4.2.1 History Display (History Select)
From the Main Menu, select History Display to view the panel’s history file of
alarm, trouble, supervisory and security events. Each event will be time and date
stamped. All events are stored in a history buffer that can hold up to 1000 alarm
events, and a total of 4000 of all event types, including alarms.
ALL EVENTS: Displays the entire history buffer, regardless of event type. The
history buffer can hold up to a total of 4000 events, including alarms.
ALARMS ONLY: Displays only the alarm events stored in the history buffer.
The history buffer can hold up to 1000 alarm events.
TROUBLES ONLY: Displays only the trouble events stored in the history buffer.
SUPERVISORY ONLY: Displays only the supervisory events stored in the his-
tory buffer.
SECURITY/OTHERS: Displays only security and events deemed “other” stored
in the history buffer. (i.e. Critical Process, Prealarm, CO Alarm, etc.)
TIME/DATE INTERVAL: Displays a screen to allow for the selection of a time
period to define the range of events displayed, as well as specific event type. (i.e.
All Events, Alarms Only, etc.)
POINT RANGE: Displays a screen to allow for the selection of a beginning and
an end point that defines the range of events to be displayed.
4.2.2 Read Status
From the Main Menu, select Read Status to display the Point Select screen.
Scroll through the various point types until the desired point type is selected. Enter the parameters for the device and select
ACCEPT to view the present
status of the point. Refer to “Point Select Screen” on page 43.
Auto-Silence Y Y Y
OFF, 3, 10,15,20
Min.
OFF, 3-20 15, 20 10,15,20
1 For proper PAS operation, a CGW-MB may not be installed on the network.
This product incorporates field-programmable software. In order for the product to comply with the requirements in the Standard for Control
Units and Accessories for Fire Alarm Systems, UL 864/ULC-S527, certain programming features or options must be limited to specific values
or not used at all as indicated below.
Program Feature or Option
Permitted
in UL 864?
(Y/N)
Permitted
in UL 2610
(Y/N)
Permitted in
ULC-S527
(Y/N)
Possible Settings
Settings
Permitted in
UL 864
Settings
Permitted
in UL 2610
Settings
Permitted in
ULC-S527
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
11:58:45A TUE JAN 20, 2018
EVENT COUNTS DISPLAY READ STATUS
PROGRAM/ALTER STATUS
MULTIPLE EVENT LIST PRINTER FUNCTIONS
HISTORY DISPLAY BACK

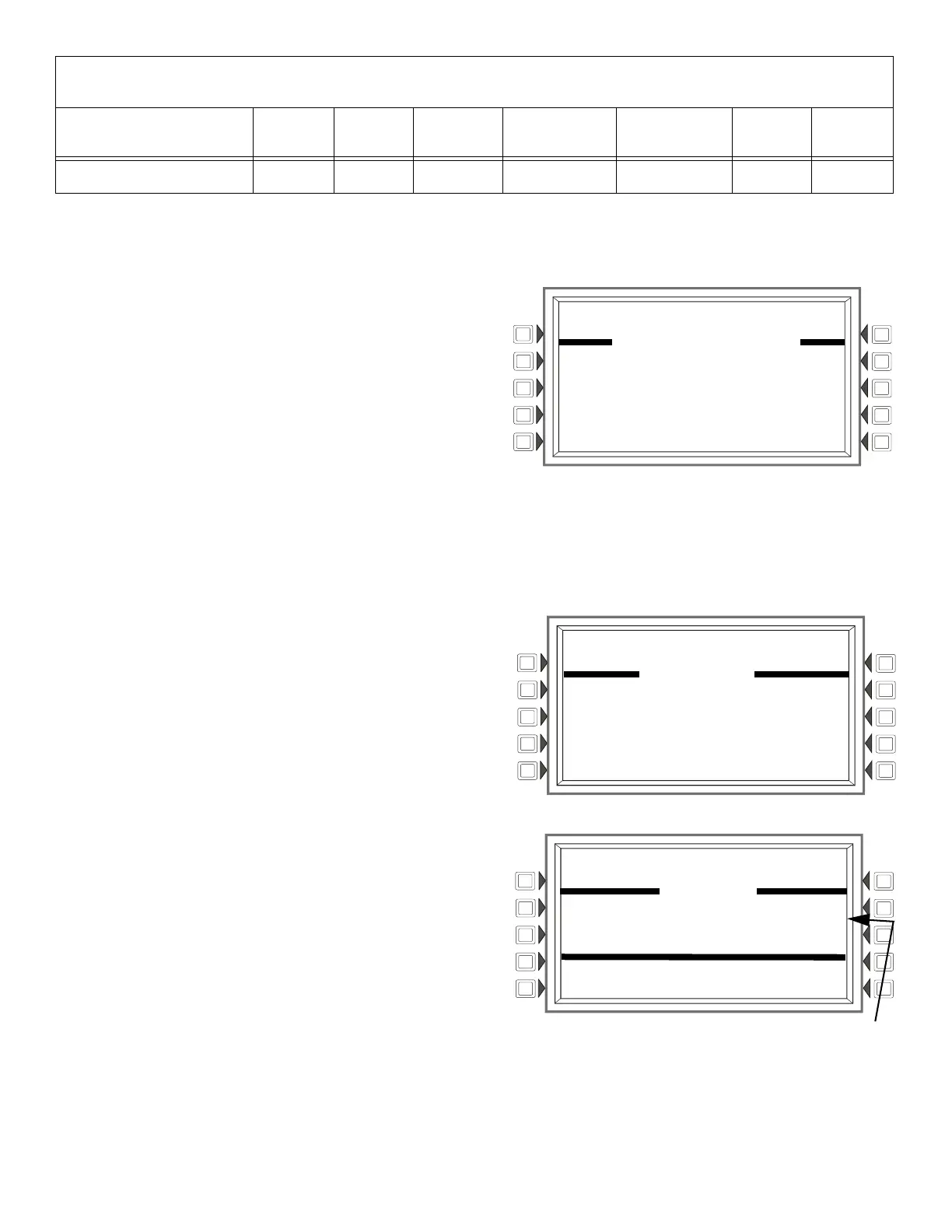

Main Menu Screen
History Display (History Select) Screen
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
11:58:45A TUE JAN 20, 2018 N124
HISTORY SELECT
ALL EVENTS SECURITY/OTHERS
ALARMS ONLY TIME/DATE INTERVAL
TROUBLES ONLY POINT RANGE
SUPERVISORY ONLY BACK
History Event Example Screen
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
11:58:45A TUE JAN 20, 2018
EVENT HISTORY
EVENT 004 OF 017
FIRE ALARM MAGNET
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z005 SMOKE ACCLIM
10:43:45A TUE JAN 20, 2018 L03D157
NEXT EVENT PRINT EVENT HISTORY
PREVIOUS EVENT BACK
MAGNET indicates that the device event occurred due to a magnet activation.
