NFS2-3030 Listing Document — P/N LS10006-051NF-E:F2 5/19/2022 35
TROUBLE REMINDER: Toggle between YES and NO.
Choose
YES to initiate a daily 11:00AM reminder that there are uncleared trou-
bles in the system. This reminder will appear on the screen and will sound a
piezo, if enabled. Choose NO if no reminder is desired. Default: YES
TROUBLE REMINDER DURATION: If Trouble Reminder is enabled: Toggle
between
4 HOURS and 24 HOURS to select the duration of time between trou-
ble reminders.
Choose 4 HOURS to initiate a trouble reminder every 4 hours until all troubles
are clear. This option should be selected if the fire panel is connected to a wire-
less network via the FWSG/A. Choose 24 HOURS to initiate a trouble
reminder every 24 hours until all troubles are clear. Default is 24 HOURS.
Press the Regional Settings softkey on the second Panel Settings screen to dis-
play the Regional Settings screen:
REGIONAL SETTINGS: Press the soft key to scroll through the selections.
Choices are
CHICAGO, SINGAPORE, AUSTRALIA, CHINA, CANADA, KOREA or
DEFAULT. The default is that there are no special regional settings.
Press the SCS Settings softkey on the second Panel Settings screen to display
the SCS Settings screen:
SCS MODE: Press to select mode A or mode B for SCS applications. Default: A
Press the Sounder Base Setup key on the third Panel Settings screen to display
the Sounder Base Setup screen.
CUSTOM TONE SETUP: Press to proceed to the Custom Tone Setup screen.
PULSE ON TIME: The Pulse On time is the amount of time that the tone will
be ON within a Period. Press this softkey to enter the amount of time in second
and fraction of a second increments.
PERIOD: A Period is the length of time designated for a pulse, including Pulse
On time and Pulse Off time. The pulse off time is designated by the amount of
time left in a Period after the Pulse On time has expired. Press this softkey to
enter the amount of time in second and fraction of a second increments.
NUMBER OF PULSES: Press this softkey to enter the number of pulses that
will occur before the Tone Off Period.
TONE OFF PERIOD: The Tone Off Period is the amount of time that the tone
will be silent before running the pulse pattern again. Press this softkey to enter
the amount of time in seconds and fraction of a second increments.
NOTE: For use with local SCS installations. Refer to the Smoke and
HVAC Control Station SCS Series Manual for additional information.

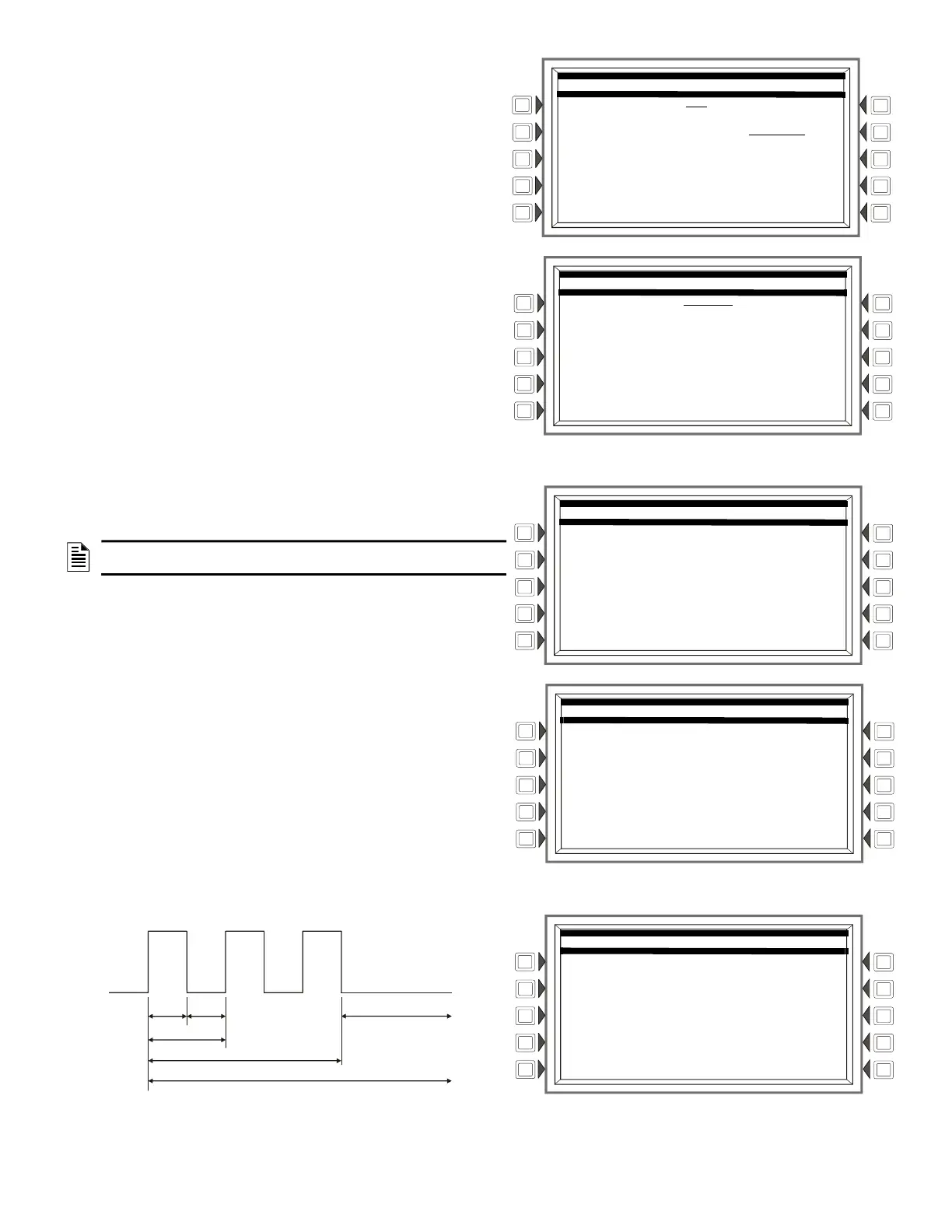

Reminder Menu Screen
REMINDER MENU
TROUBLE REMINDER: YES
TROUBLE REMINDER DURATION: 24 HOURS
ACCEPT
BACK
Regional Settings Screen
REGIONAL SETTINGS
REGIONAL SETTING: DEFAULT
ACCEPT
BACK
SCS Settings Screen
REGIONAL SETTINGS
SCS MODE: A
ACCEPT
BACK
Sounder Base Setup Screen
SOUNDER BASE SETUP
CUSTOM TONE SETUP
BACK
Custom Tone Setup Screen
CUSTOM TONE SETUP
PULSE ON TIME:0.5
PERIOD:1.0
NUMBER OF PULSES:03
TONE OFF PERIOD:1.5 ACCEPT
BACK
Pulse Pulse
Period
Repeat Tone Pattern
Tone Off Period
Number of Pulses
Custom Tone Example
