60 SCS Series Manual — P/N 15712:L 7/18/16
The SCS⁄SCE Configuration
28 When used with an SCE, eight switch groups are
available for group type 5 operation and eight are
available for group type 1 operation in the format
shown to the left. Type 5 switch groups require one
control module and one monitor module. Type 5 switch
groups can be used for fans or dampers. The control module is used for the ON control of the fan.
The monitor module is used for the ON verification of the fan. Type 1 switch groups require one
control module and one monitor module. Type 1 switch groups can be used for fans or dampers. The
control module is used for OFF control of a fan and the monitor module is used for the OFF
verification of the fan.
29 When used with an SCE, eight switch groups are
available for group type 5 operation and eight are
available for group type 1 operation in the format
shown to the left. Type 5 switch groups require one
control module and one monitor module. Type 5 switch
groups can be used for fans or dampers. The control module is used for the ON control of the fan.
The monitor module is used for the ON verification of the fan. Type 1 switch groups require one
control module and one monitor module. Type 1 switch groups can be used for fans or dampers. The
control module is used for OFF control of a fan and the monitor module is used for the OFF
verification of the fan.
30 When used with an SCE, eight switch groups are
available for group type 5 operation and eight are
available for group type 2 operation in the format
shown to the left. Type 5 switch groups require one
control module and one monitor module. Type 5 switch
groups can be used for fans or dampers. The control module is used for the ON control of the fan.
The monitor module is used for the ON verification of the fan. Type 2 switch groups require one
control module and one monitor module. Type 2 switch groups can be used for fans or dampers. The
control module is used for OFF control of a fan and the monitor module is used for the ON verification
of the fan.
31 When used with an SCE, eight switch groups are
available for group type 5 operation and eight are
available for group type 2 operation in the format
shown to the left. Type 5 switch groups require one
control module and one monitor module. Type 5 switch
groups can be used for fans or dampers. The control module is used for the ON control of the fan.
The monitor module is used for the ON verification of the fan. Type 2 switch groups require one
control module and one monitor module. Type 2 switch groups can be used for fans or dampers. The
control module is used for OFF control of a fan and the monitor module is used for the ON verification
of the fan.
32 When used with an SCE, eight switch groups are
available for group type 5 operation and eight are
available for group type 3 operation in the format
shown to the left. Type 5 switch groups require one
control module and one monitor module. Type 5 switch
groups can be used for fans or dampers. The control module is used for the ON control of the fan.
The monitor module is used for the ON verification of the fan. Type 3 switch groups require one
control module and two monitor modules. Type 3 switch groups are usually only used for dampers.
The control module is used for CLOSED control of a damper, one monitor module is used for the
OPEN verification of the damper and the other monitor module is used for the CLOSED verification
of the damper.
* See Table 3.4 for settings of dipswitches 7 and 8.

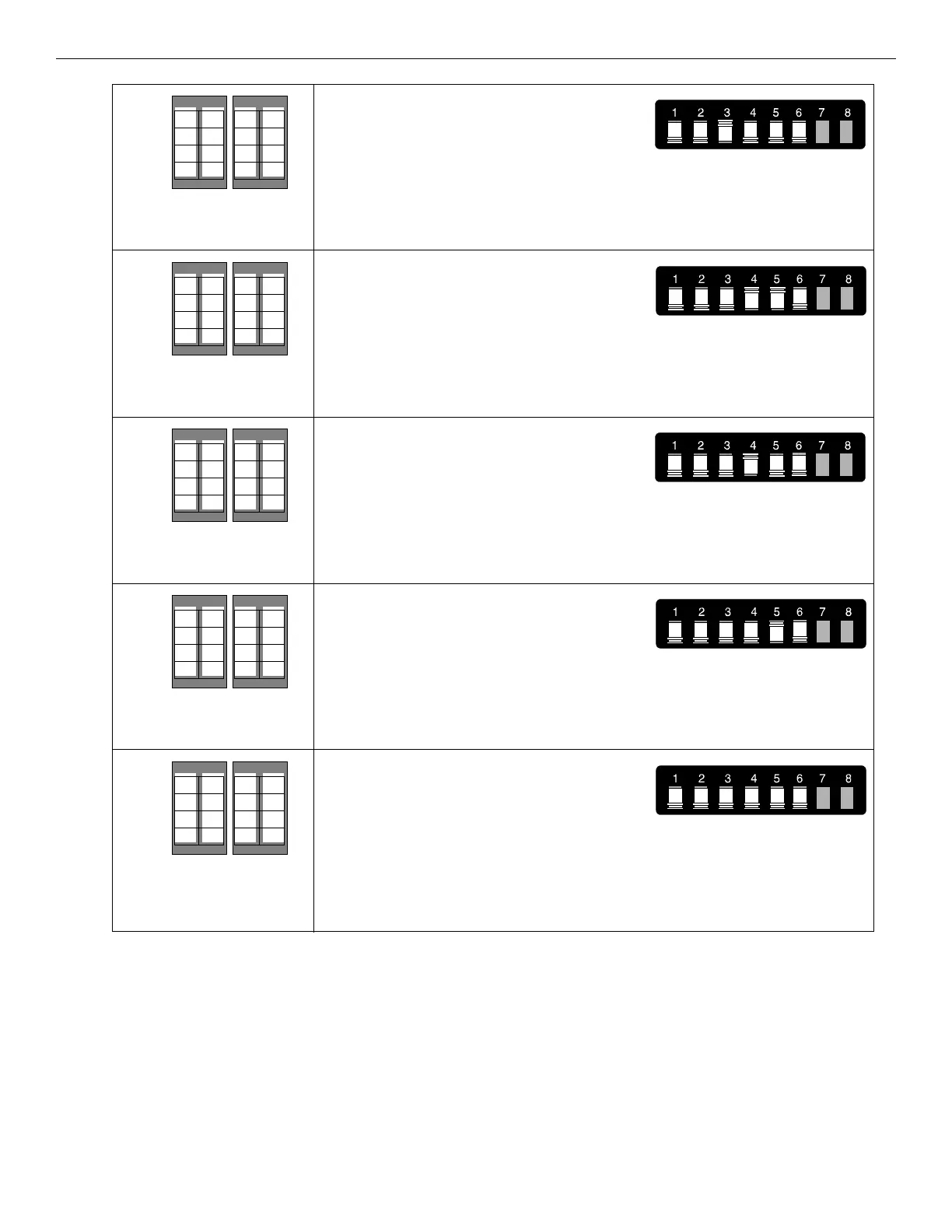

Table 3.5 FSCS Mode Dipswitch Settings (6 of 6)
*
51 51
51 51
51 51
51 51
SCS-8 SCE-8
OFF
ON
55 55
11 11
11 11
55 55
SCS-8 SCE-8
OFF
ON
52 52
52 52
52 52
52 52
SCS-8 SCE-8
OFF
ON
55 55
22 22
22 22
55 55
SCS-8 SCE-8
OFF
ON
53 53
53 53
53 53
53 53
SCS-8 SCE-8
OFF
ON
