HP 1650B User Manual

WLlSt Subsystem
9
Introduction
Two commands in the WLISt subsystem control the X and 0 marker
placement on the waveforms portion of the Timing/State mixed mode
display. These commands are XTIMe and OTIMe. The XSTate and
OSTate queries return what states the X and 0 markers are on. Since the
markers can only be placed on the timing waveforms, the queries return
what state (state acquisition memory location) the marked pattern is
stored in.
I&’ In order to have mixed mode, one machine must be a timing analyzer and
Note 3 h th
t e o er must be a state analyzer with time tagging on (use
MACHine c N > :STRace:TAG TIME).
time-value = real number

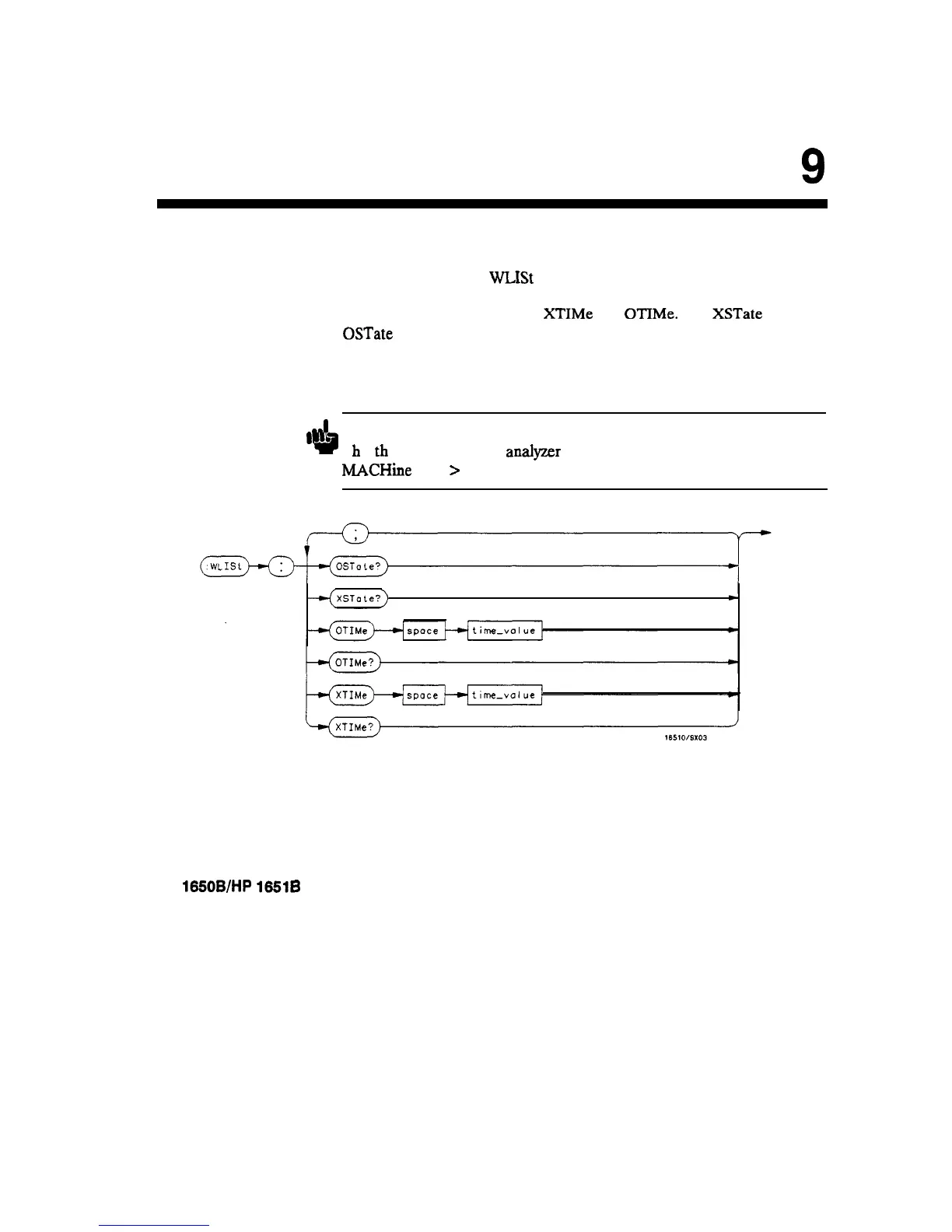

Figure 9-l. WLlSt Subsystem Syntax Diagram
HP 1650B/HP 166lB
Programming Reference
WLlSt Subsystem
9-l
