163

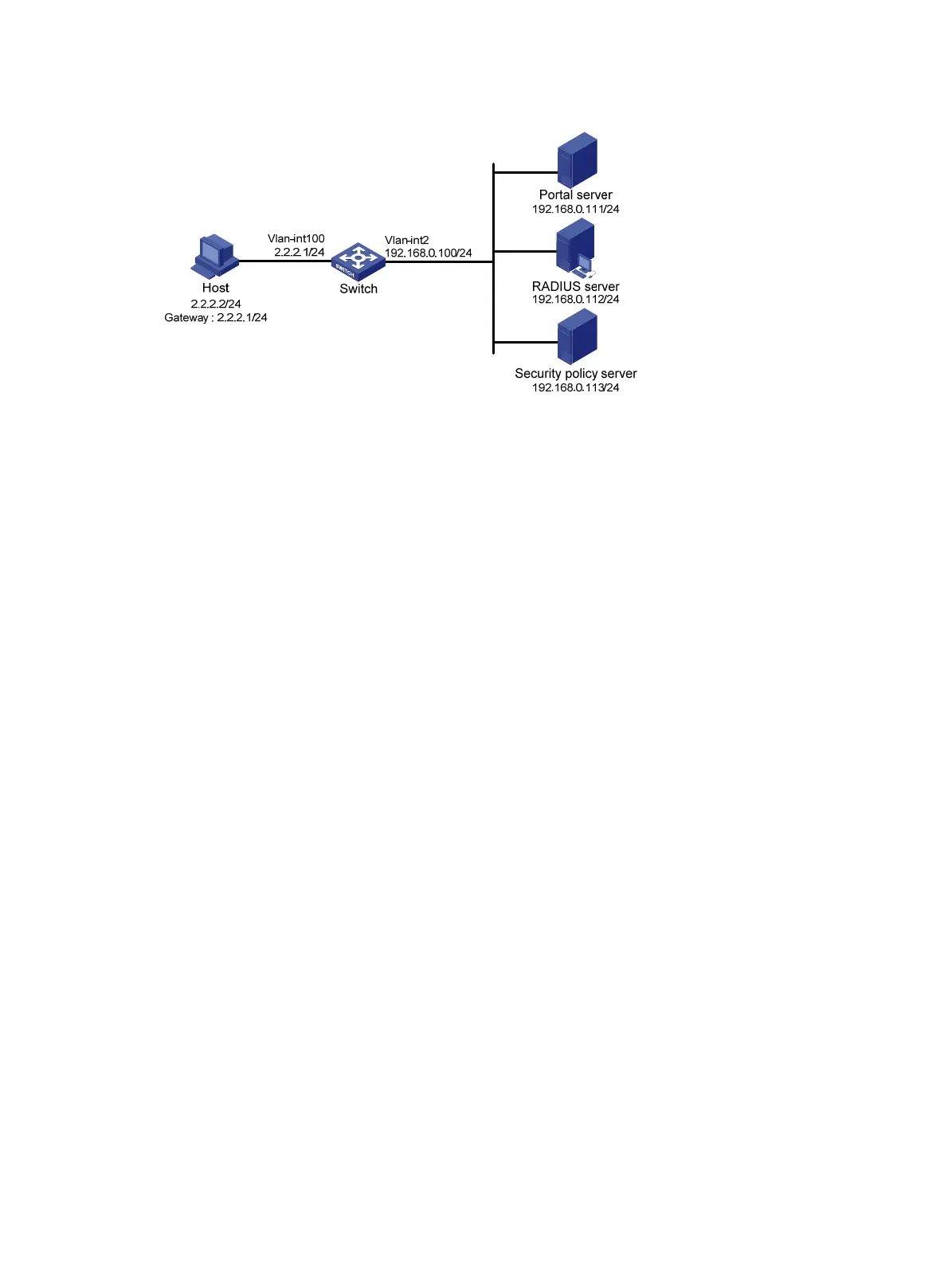

Figure 53 Network diagram

Configuration procedure

Configure IP addresses for the host, switch, and servers as shown in Figure 53 and make sure they can

reach each other.

Configure the RADIUS server properly to provide authentication and accounting functions for users.

Configure the switch:

1. Configure a RADIUS scheme:

# Create a RADIUS scheme named rs1 and enter its view.

<Switch> system-view

[Switch] radius scheme rs1

# Set the server type for the RADIUS scheme. When using the IMC server, set the server type to

extended.

[Switch-radius-rs1] server-type extended

# Specify the primary authentication server and primary accounting server, and configure the keys

for communication with the servers.

[Switch-radius-rs1] primary authentication 192.168.0.112

[Switch-radius-rs1] primary accounting 192.168.0.112

[Switch-radius-rs1] key accounting simple radius

[Switch-radius-rs1] key authentication simple radius

[Switch-radius-rs1] user-name-format without-domain

# Configure the IP address of the security policy server.

[Switch-radius-rs1] security-policy-server 192.168.0.113

[Switch-radius-rs1] quit

2. Configure an authentication domain:

# Create an ISP domain named dm1 and enter its view.

[Switch] domain dm1

# Configure AAA methods for the ISP domain.

[Switch-isp-dm1] authentication portal radius-scheme rs1

[Switch-isp-dm1] authorization portal radius-scheme rs1

[Switch-isp-dm1] accounting portal radius-scheme rs1

[Switch-isp-dm1] quit
