Single-ended TDR Measurements
Measuring the Distance to a Discontinuity
7-40
9 Change the + Position until the + marker is on the left side of the positive
bump.

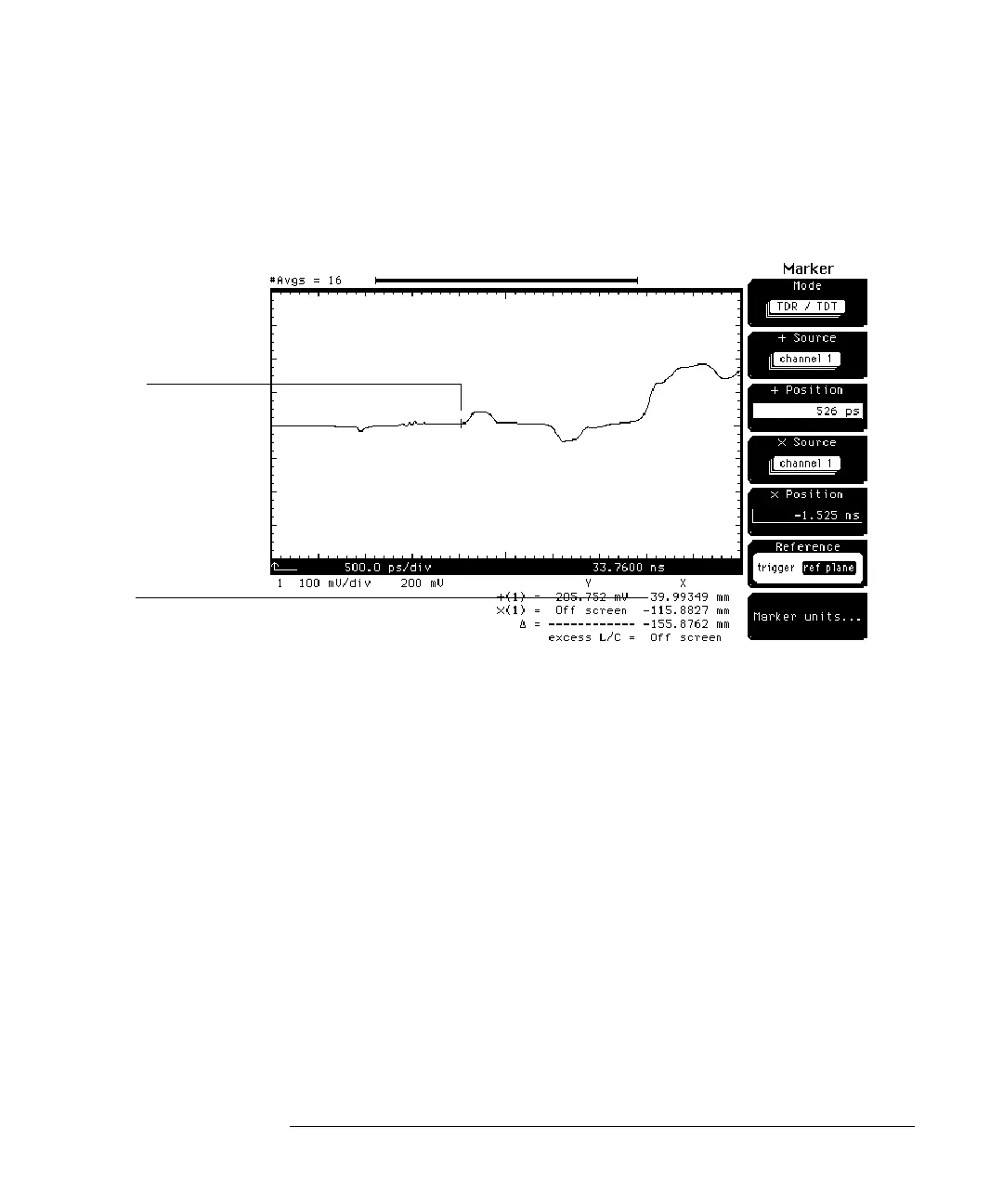

Figure 7-26
The distance from the reference plane to the narrow trace is shown at the
bottom of the display (Figure 7-26).
Distance
+ Marker
