1. Plastic rail
2. Server latch

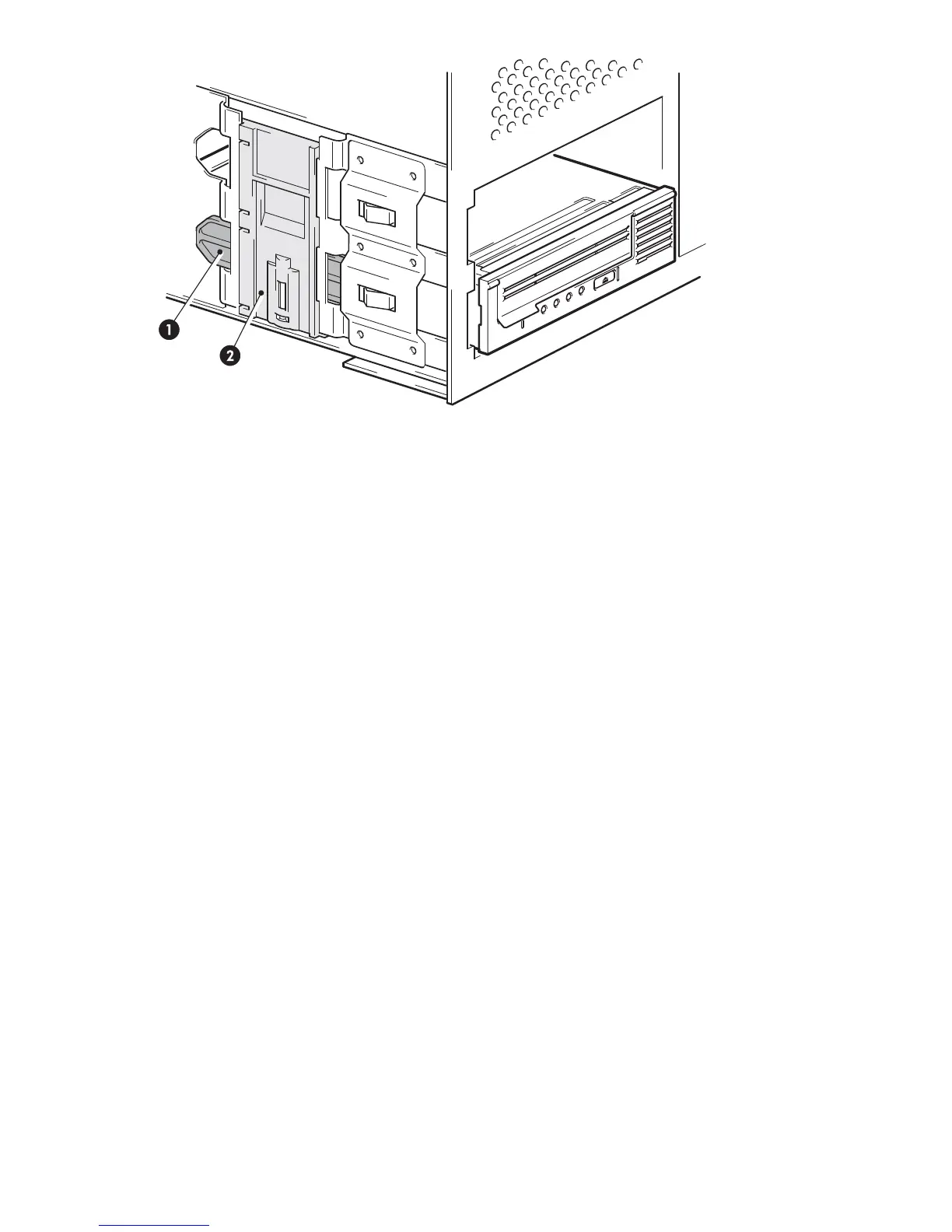

Figure 16 S ecurin g drive, mounting hardware used
2. Ensure blanking p lates are in p lace over empty bays and replace the cover o n the server.
No mounting hardware used
1. Use the M
3 screws provided with the tape drive in the screw pack labeled ‘General M ounting
Screws
’. Check that the holes in the chassis are aligned with the holes in the sides of the drive and
use a regular Phillips screwdriver to secure the M3 screws, as shown in Figure 17 on page 35.
If you cannot tighten the screws, use the washers provided in the pack.
34
Installing an internal Ultrium tape drive
