115
Silent MAC users:
MAC address VLAN ID From port Port index
Ten-GigabitEthernet1/0/1 is link-up
MAC authentication : Enabled
Authentication domain : Not configured
Auth-delay timer : Disabled
Re-auth server-unreachable : Logoff
Guest VLAN : Not configured
Critical VLAN : Not configured
Host mode : Single VLAN
Max online users : 4294967295
Authentication attempts : successful 1, failed 0
Current online users : 1
MAC address Auth state
00e0-fc12-3456 Authenticated
ACL assignment configuration example
Network requirements
As shown in Figure 36, configure the device to meet the following requirements:
• Use RADIUS servers to perform authentication, authorization, and accounting for users.
• Perform MAC authentication on port Ten-GigabitEthernet 1/0/1 to control Internet access.
• Use MAC-based user accounts for MAC authentication users. Each MAC address is in the
hexadecimal notation with hyphens, and letters are in lower case.
• Use an ACL to deny authenticated users to access the FTP server at 10.0.0.1.

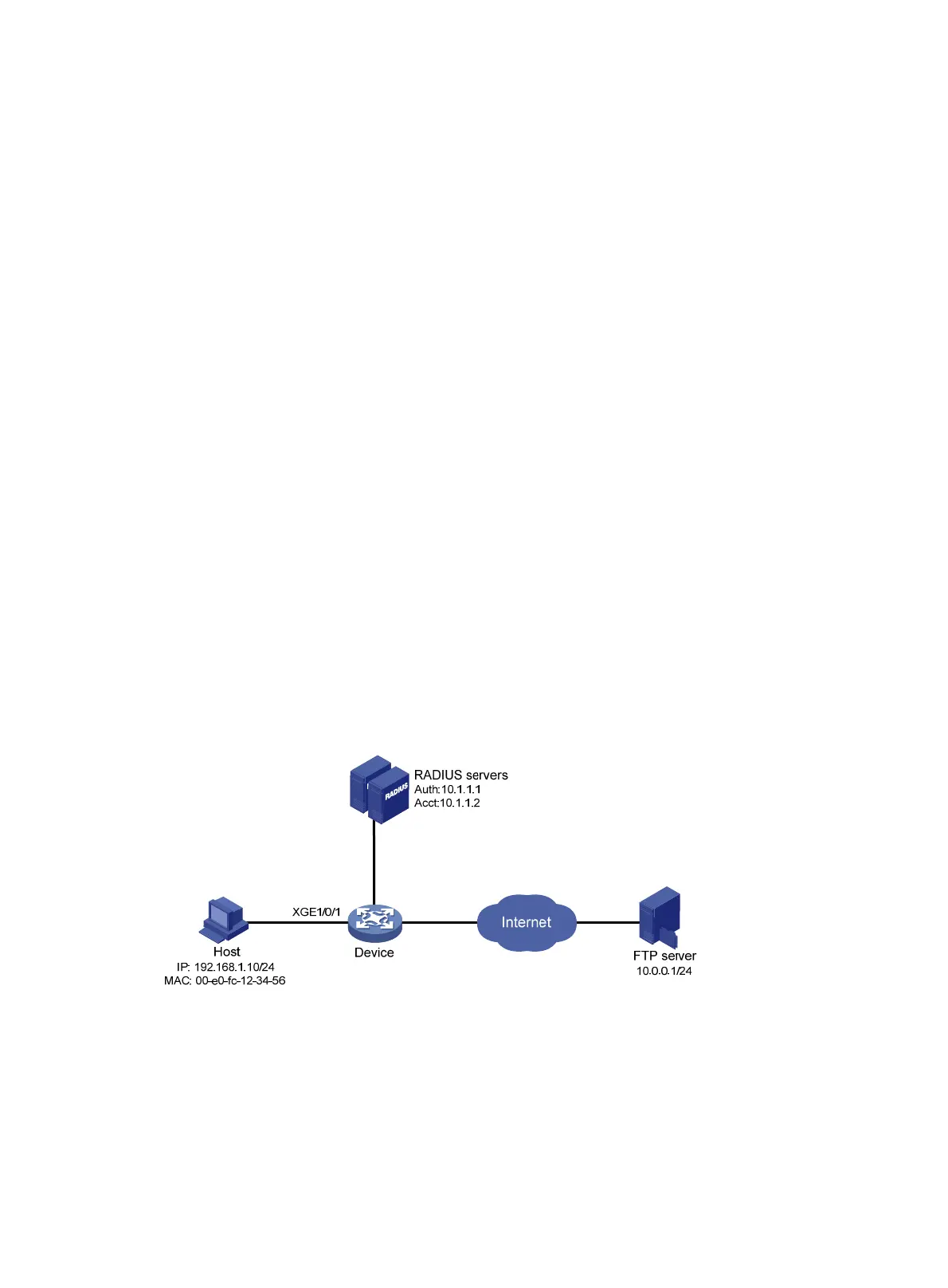

Figure 36 Network diagram
Configuration procedure
Make sure the RADIUS servers and the access device can reach each other.
1. Configure ACL 3000 to deny packets destined for 10.0.0.1.
<Sysname> system-view
[Sysname] acl number 3000
[Sysname-acl-adv-3000] rule 0 deny ip destination 10.0.0.1 0
