Configuring extended cross-subnet portal authentication
Network requirements
As shown in Figure 55, Switch A supports portal authentication. The host accesses Switch A through
Switch B. A portal server acts as both a portal authentication server and a portal Web server. A RADIUS
server acts as the authentication/accounting server.
Configure Switch A for extended cross-subnet portal authentication. Before passing portal authentication,
the host can access only the portal server. After passing portal identity authentication, the host accepts
security check. If the host fails the security check it can access only the subnet 192.168.0.0/24. After
passing the security check, the host can access Internet resources.

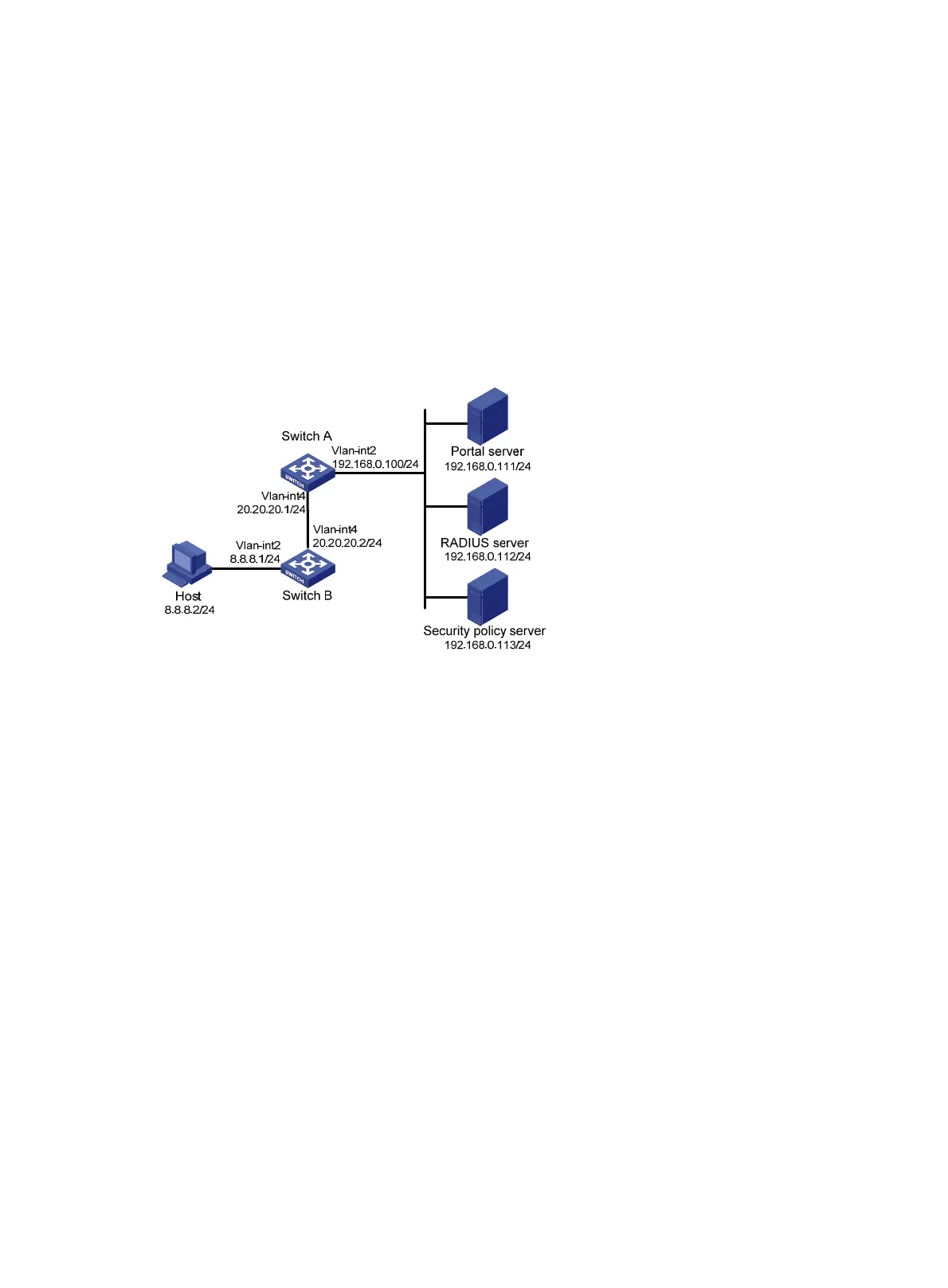

Figure 55 Network diagram
Configuration prerequisites and guidelines
• Configure IP addresses for the switch and servers as shown in Figure 55 and make sure the host,
switch, and servers can reach each other.
• Configure the RADIUS server properly to provide authentication and accounting functions.
• Make sure the IP address of the portal device added on the portal server is the IP address
(20.20.20.1) of the switch's interface connecting the host. The IP address group associated with the
portal device is the subnet of the host (8.8.8.0/24).
Configuration procedure
Perform the following tasks on Switch A.
1. Configure a RADIUS scheme:
# Create a RADIUS scheme named rs1 and enter its view.
<SwitchA> system-view
[SwitchA] radius scheme rs1
# Specify the primary authentication server and primary accounting server, and configure the keys
for communication with the servers.
[SwitchA-radius-rs1] primary authentication 192.168.0.112
[SwitchA-radius-rs1] primary accounting 192.168.0.112
[SwitchA-radius-rs1] key accounting simple radius
[SwitchA-radius-rs1] key authentication simple radius
[SwitchA-radius-rs1] user-name-format without-domain
