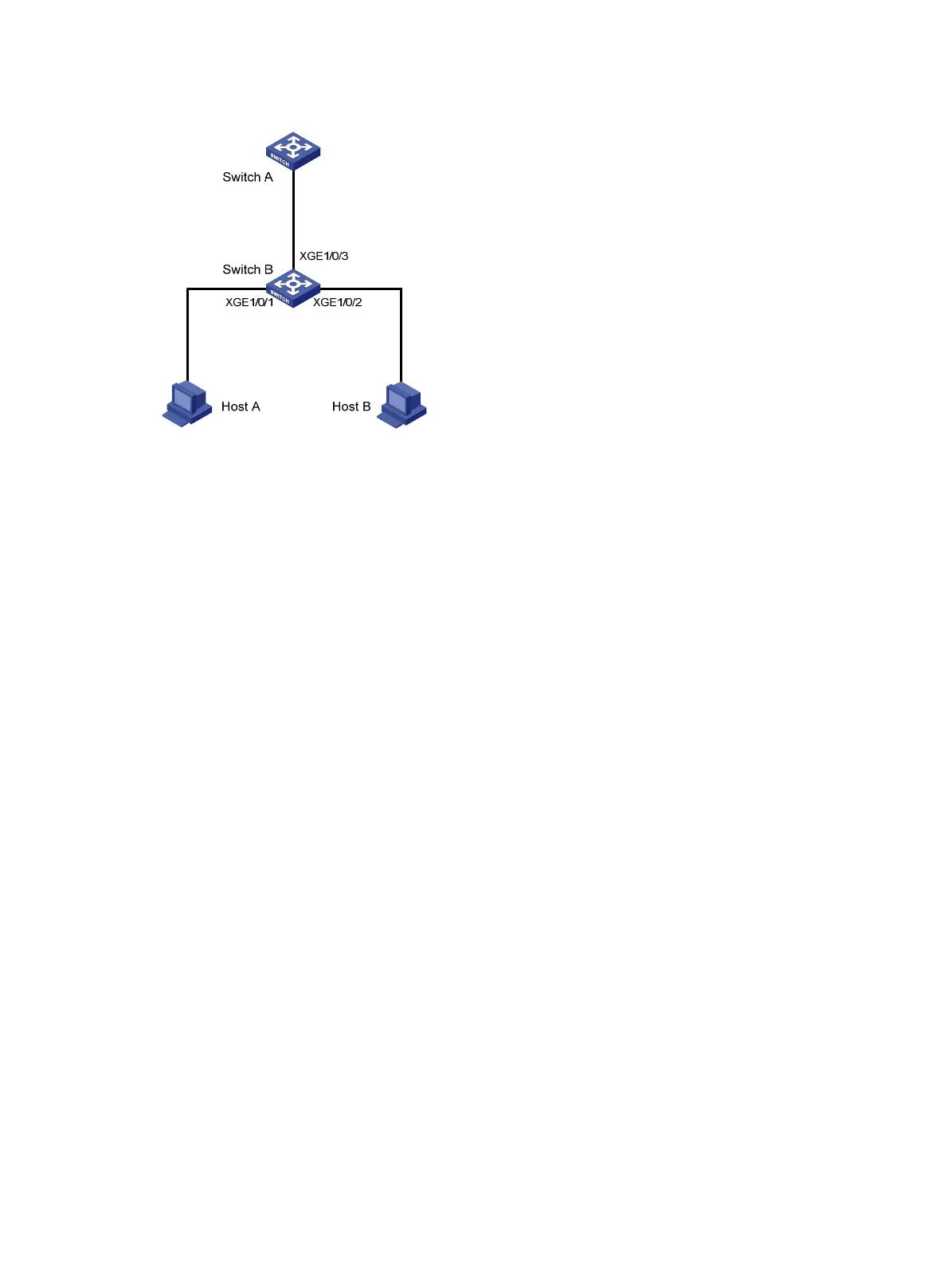

Figure 116 Network diagram

Configuration procedure

# Configure ARP filtering on Switch B.

<SwitchB> system-view

[SwitchB] interface ten-gigabitethernet 1/0/1

[SwitchB-Ten-GigabitEthernet1/0/1] arp filter binding 10.1.1.2 000f-e349-1233

[SwitchB-Ten-GigabitEthernet1/0/1] quit

[SwitchB] interface ten-gigabitethernet 1/0/2

[SwitchB-Ten-GigabitEthernet1/0/2] arp filter binding 10.1.1.3 000f-e349-1234

Verifying the configuration

# Verify that Ten-GigabitEthernet 1/0/1 permits ARP packets from Host A and discards other ARP

packets.

# Verify that Ten-GigabitEthernet 1/0/2 permits ARP packets from Host B and discards other ARP

packets.
