4. Connect the WAN Cable.
Connect the WAN cable as described below.
Also, if you have not already done so, verify that the network equipment
and links (in particular, the WAN-link-terminating equipment) are opera-
tional. (Your WAN-link service provider can verify that the WAN link is
operating correctly.) If the LAN links are not already connected to the
hub, connect them now (refer to the hub’s installation guide).
Caution Static discharge may damage equipment. Do not touch the connector
pins on the router module or on the cable.
1. Attach the cable’s 62-pin connector to the WAN port. Hand-tighten
the connector’s screws into the hex nuts you installed alongside the
WAN port connector.
2. Attach the other end of the cable to the WAN-link-terminating
equipment (such as a DSU/CSU).
WAN-link-terminating
equipment (for example,
a DSU/CSU)
Circuit from WAN
service provider
V.35 cable
DSU/CSU stub cable
WAN port

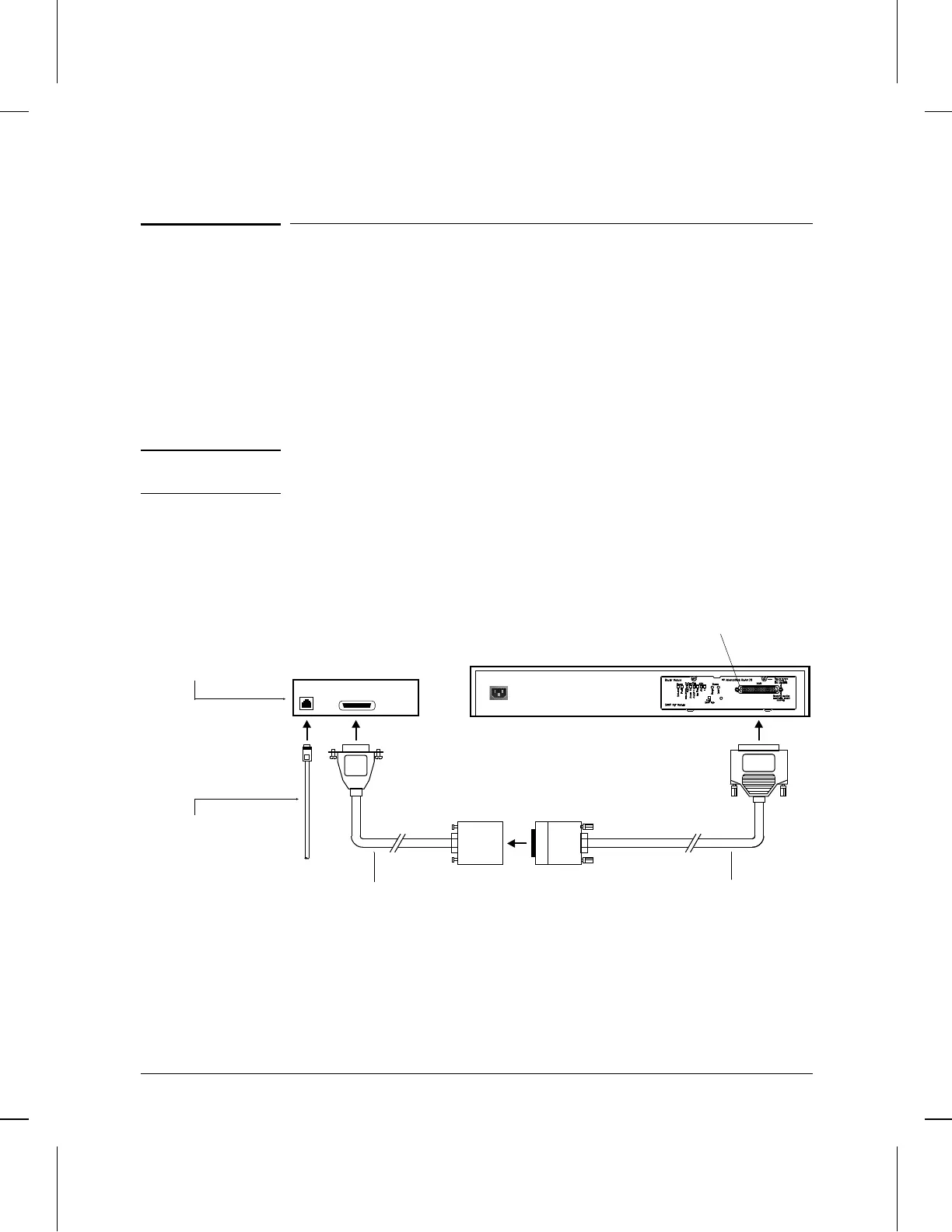

Figure 1-11. Example of Connecting V.35 WAN Cable
Installation
4. Connect the WAN Cable.
1-16
