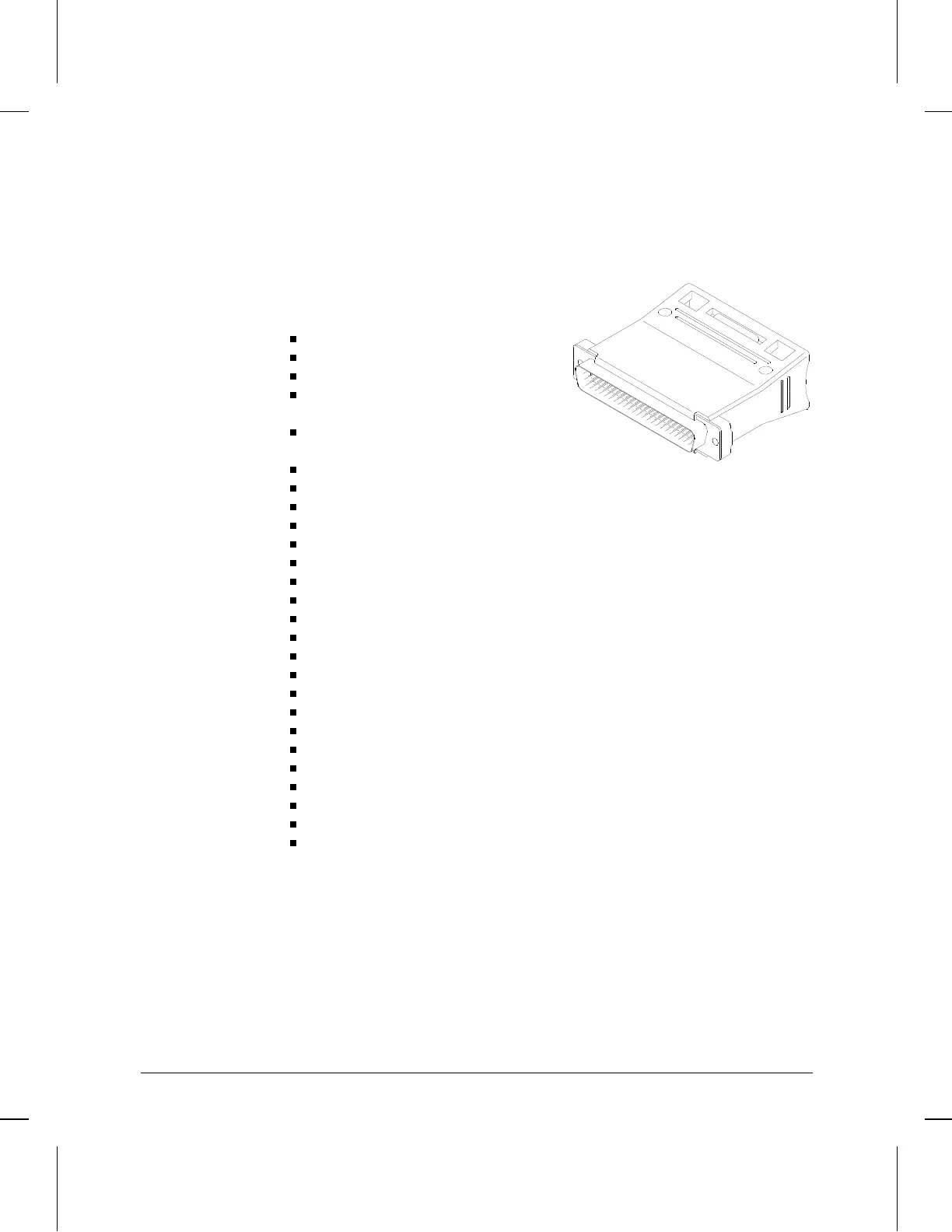

Loopback Connector
HP part number 28606-63007; pin
connections:
pin 9 to pin 23
pin 10 to pin 27
pin 11 to pin 50
pin 12 (not used) to pin 7
(not used)
pin 13 (not used) to pin 49
(not used)
pin 14 to pin 19
pin 15 to pin 4
pin 16 to pin 46
pin 17 to pin 1
pin 21 to pin 20
pins 30, 31, and 32 to pin 27
pins 33 and 34 (not used) to pin 29 (not used)
pin 35 to pins 40 and 39
pin 36 to pin 25
pin 37 to pin 26
pin 38 to pin 22
pin 42 to pin 41
pin 47 (not used) to pin 24
pin 51 to pin 2
pin 53 (not used) to pin 8 (not used)
pin 54 (not used) to pin 29 (not used)
pin 55 (not used) to pin 8 (not used)
pin 56 to pin 3
pin 57 to pin 28 (not used)
pin 58 to pin 6
pin 59 to pin 48 (not used)
Cables and Connectors
Cable and Connector Pin-Outs
A-10
