HP MSR4080 Configuration Guide

168
# Verify that receivers in PIM-SM 1 and PIM-SM 3 can receive the multicast data from Source 1 and
Source 2 to a multicast group. (Details not shown.)
Anycast RP configuration
Network requirements
As shown in Figure 55, OSPF runs within the domain to provide unicast routes.
Configure the Anycast RP application so that the receiver-side DRs and the source-side DRs can
initiate a join process to their respective RPs that are topologically closest to them.
Configure the router IDs of Router B and Router D as 1.1.1.1 and 2.2.2.2, respectively. Set up an
MSDP peering relationship between Router B and Router D.

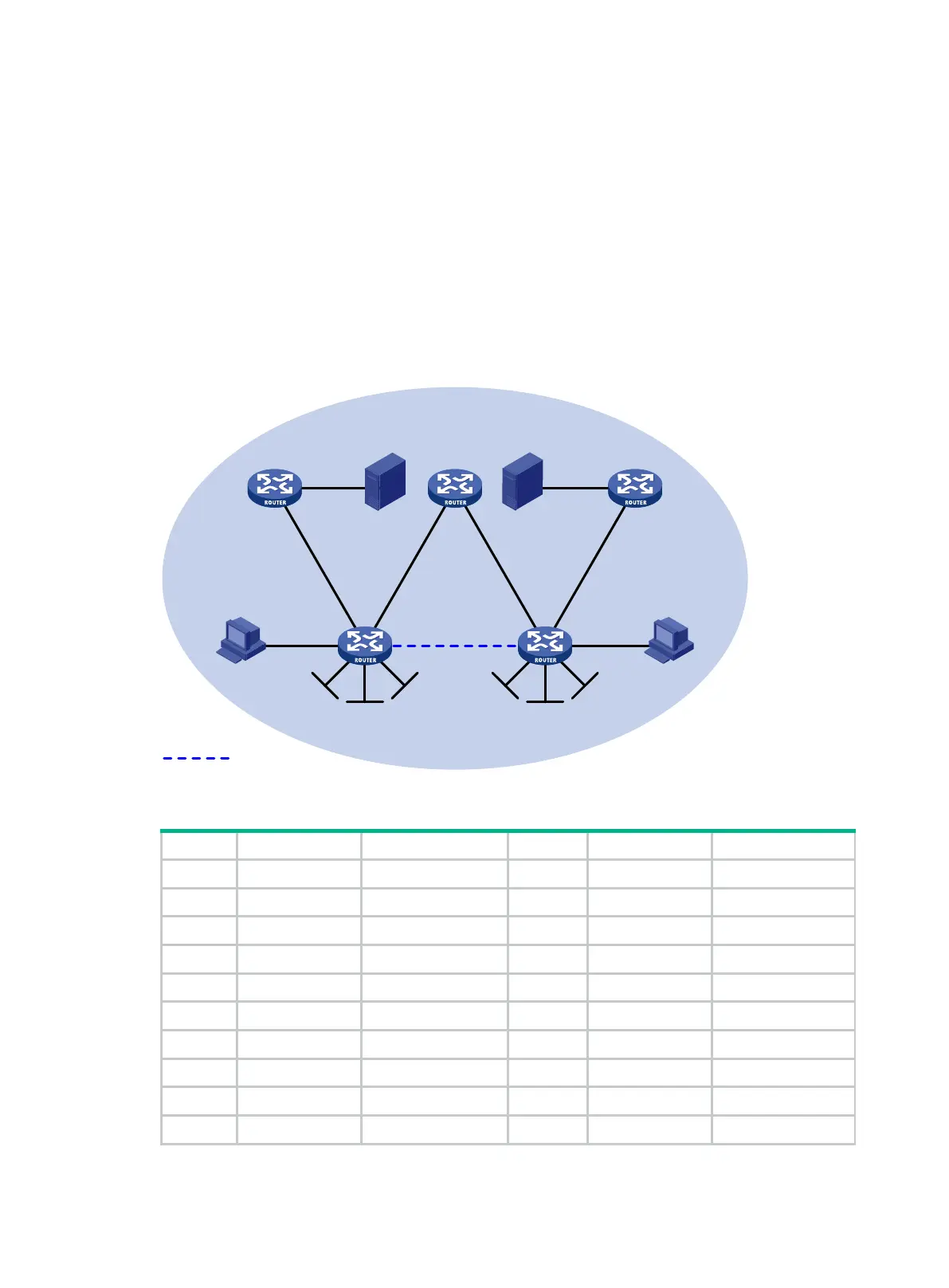

Figure 55 Network diagram
Table 15 Interface and IP address assignment
Device
Interface
IP address
Device
Interface
IP address
Source 1 — 10.110.5.100/24 Router C GE1/0/1 192.168.1.2/24
Source 2 — 10.110.6.100/24 Router C GE1/0/2 192.168.2.2/24
Router A GE1/0/1 10.110.5.1/24 Router D GE1/0/1 10.110.3.1/24
Router A GE1/0/2 10.110.2.2/24 Router D GE1/0/2 10.110.4.1/24
Router B GE1/0/1 10.110.1.1/24 Router D GE1/0/3 192.168.2.1/24
Router B GE1/0/2 10.110.2.1/24 Router D Loop0 2.2.2.2/32
Router B GE1/0/3 192.168.1.1/24 Router D Loop10 4.4.4.4/32
Router B Loop0 1.1.1.1/32 Router D Loop20 10.1.1.1/32
Router B Loop10 3.3.3.3/32 Router E GE1/0/1 10.110.6.1/24
Router B Loop20 10.1.1.1/32 Router E GE1/0/2 10.110.4.2/24
Loop10
Loop0
Loop20
Loop10
Loop20
Loop0
Receiver
Source 1
Router A
Router B
Router C
Router D
Router E
GE1/0/3
GE1/0/1
GE1/0/2
GE1/0/3
GE1/0/1
GE1/0/2
GE1/0/2
GE1/0/2
GE1/0/2
GE1/0/1
Receiver
Source 2
PIM-SM
MSDP peers
GE1/0/1 GE1/0/1
Host A Host B
