HP MSR4080 Configuration Guide

364
IPv6 PIM configuration examples
IPv6 PIM-DM configuration example
Network requirements
As shown in Figure 105:
•
OSPFv3 runs on the network.
•
VOD streams are sent to receiver hosts in multicast. The receiver groups of different
organizations form stub networks, and a minimum of one receiver host exists on each stub
network. The entire IPv6 PIM domain is operating in the dense mode.
•
Host A and Host C are IPv6 multicast receivers on two stub networks N1 and N2.
•
MLDv1 runs between Router A and N1, and between Router B, Router C, and N2.

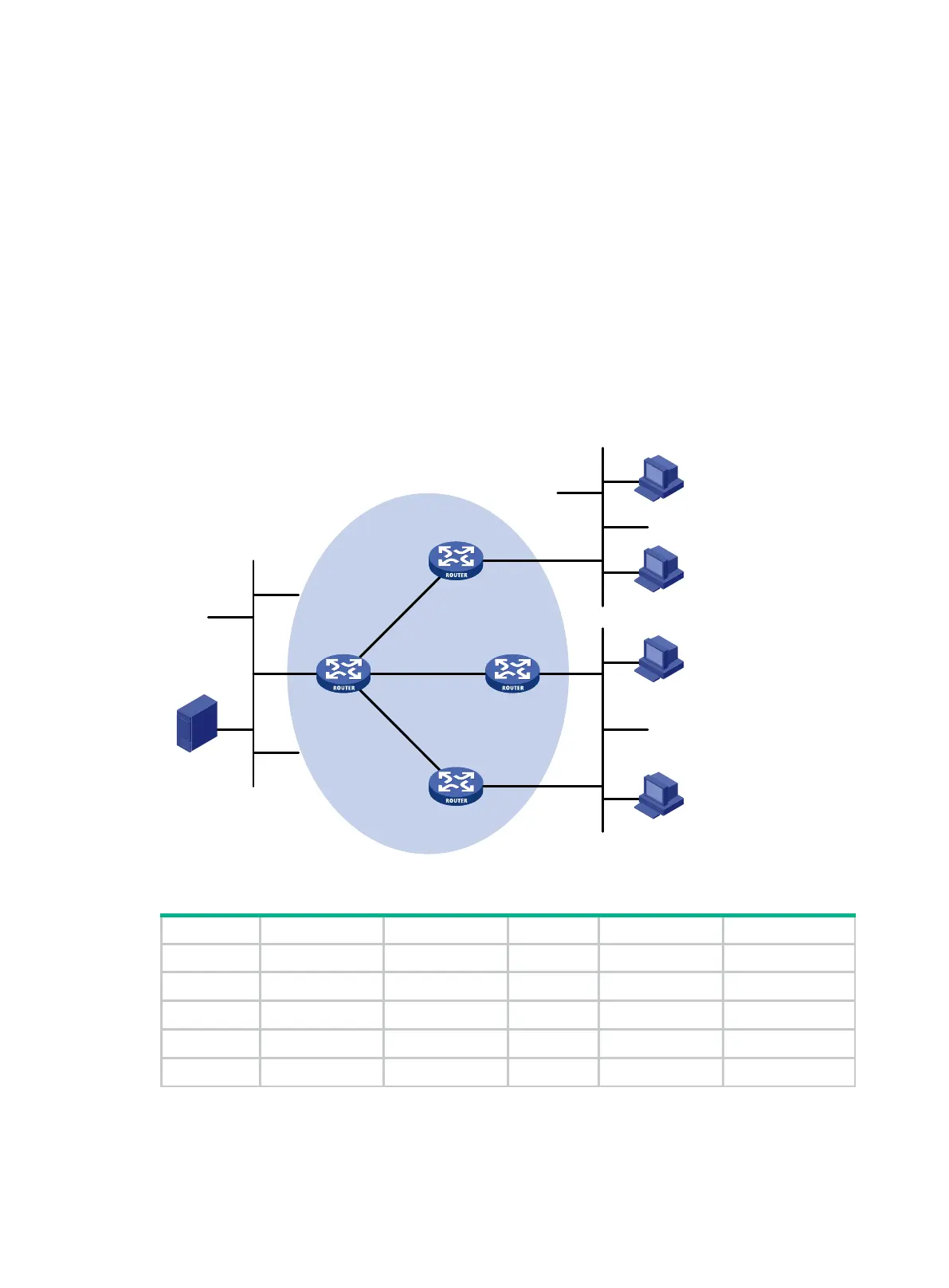

Figure 105 Network diagram
Table 25 Interface and IPv6 address assignment
Device
Interface
IPv6 address
Device
Interface
IPv6 address
Router A GE1/0/1 1001::1/64 Router C GE1/0/2 3001::1/64
Router A GE1/0/2 1002::1/64 Router D GE1/0/1 4001::1/64
Router B GE1/0/1 2001::1/64 Router D GE1/0/2 1002::2/64
Router B GE1/0/2 2002::1/64 Router D GE1/0/3 2002::2/64
Router C GE1/0/1 2001::2/64 Router D GE1/0/4 3001::2/64
Configuration procedure
1. Assign an IPv6 address and prefix length to each interface, as shown in Figure 105. (Details not
shown.)
Ethernet
EthernetEthernet
Source
4001::100/64
IPv6 PIM-DM
Router A
Router B
Router C
Router D
Receiver
Host A
Host B
Host C
Host D
Receiver
N1N2
GE1/0/1
GE1/0/1
GE1/0/1
GE1/0/1 GE1/0/3 GE1/0/2
GE1/0/2GE1/0/4
GE1/0/2 GE1/0/2
