HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 11
QuickTools user interface
The QuickTools web applet uses faceplate and backplate displays to manage the switches in a fabric. The
interface (Figure 3) consists of a menu bar, fabric tree, graphic window, data windows (some with
buttons), and data window tabs. The switch faceplate is displayed in the graphic window and shows the
front of a single switch and its ports. While there is no topology display, the fabric name is displayed for
reference in the fabric tree above the switch names. Click a switch name or icon to display a different
switch faceplate in the graphic window. Information displayed in the data windows corresponds to the
data window tab selected.

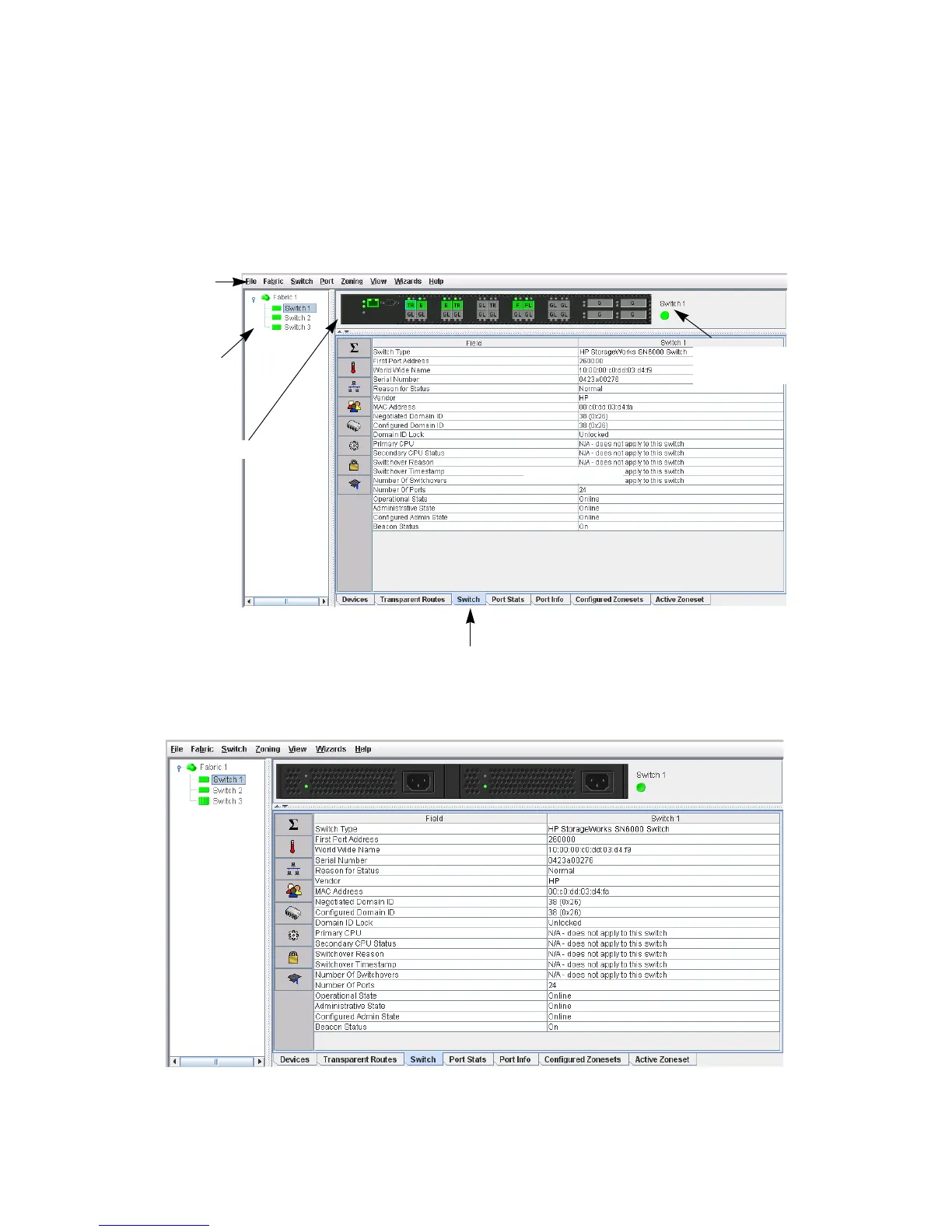

The faceplate display (Figure 3) shows the front of a single SN6000 Fibre Channel Switch.
Figure 3 QuickTools faceplate display
The backplate display (Figure 4) shows the back of a dual-power supply SN6000 Fibre Channel Switch.
Figure 4 QuickTools backplate display
Data window tabs
Graphic window
Fabric
tree
Menu
bar
Data window
Fabric/Switch name
and status
