Transparent Routes data window
The Transparent Routes data window displays the currently configured inter-fabric zones/routes using a
TR_Port.

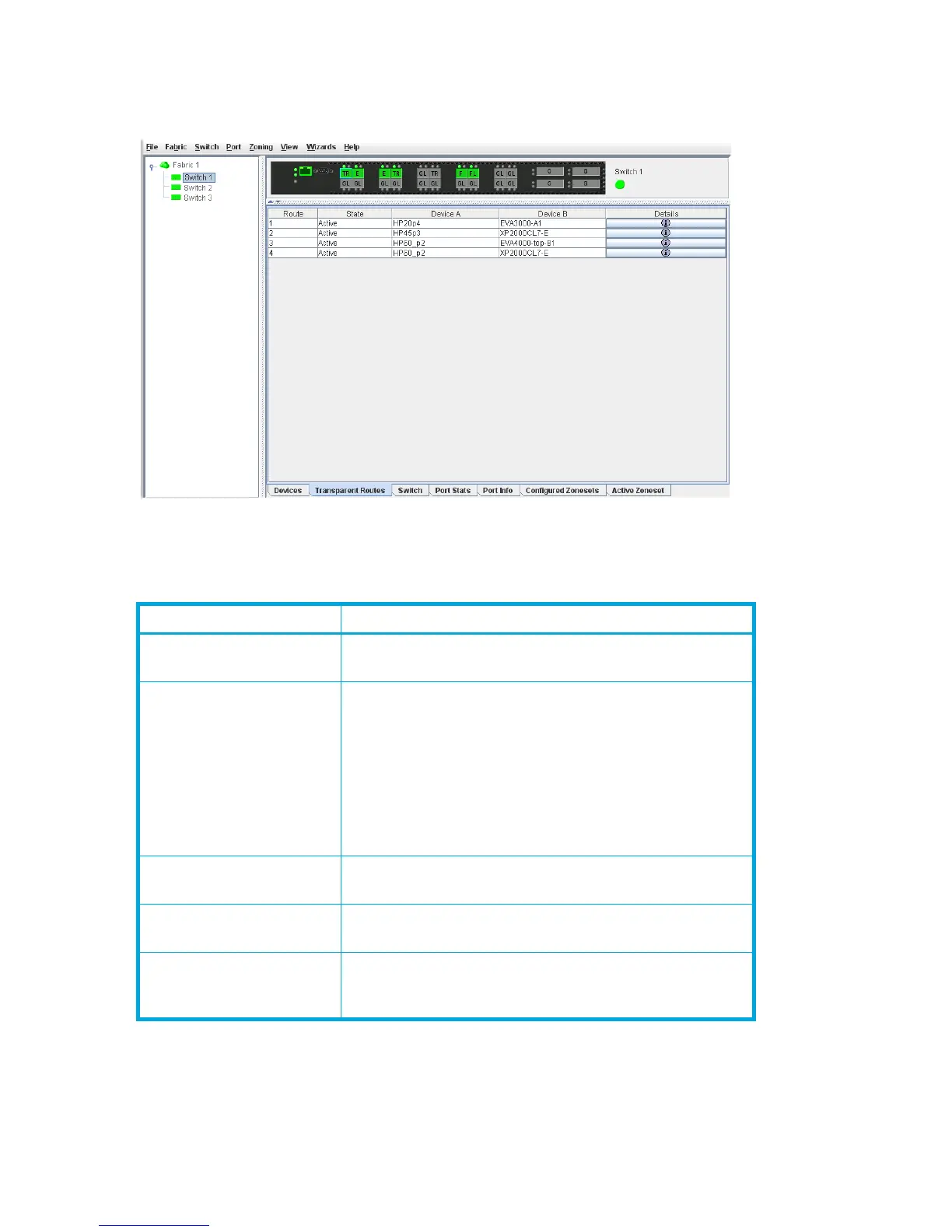

Figure 10 Transparent Routes data window
The Transparent Routes data window fields are described in Table 3.
Table 3 Transparent Routes data window fields
Field Description
Route Route number reference for each listing in the Transparent
Routes data window table
State The current TR mapping state (Active or Inactive)
• Active—Indicates that the mapping's TR port is on
this switch, and both devices have logged in.
• Inactive—Indicates that the mapping's TR port is on
this switch, and the mapping is not active. The
reasons are shown in the details display as the three
Status column entries (one for the overall mapping
and one for each device in the mapping).
Device A The WWN of one of the two devices linked by the TR
mapping. Assigned nicknames are also displayed.
Device B The WWN of the other device linked by the TR mapping.
Assigned nicknames are also displayed.
Details Click (i) in the Details column to open the Transparent Route
dialog, which displays detailed information on the
transparent route.
To Next Page
